Fuse Block: Description and Operation

Fuse

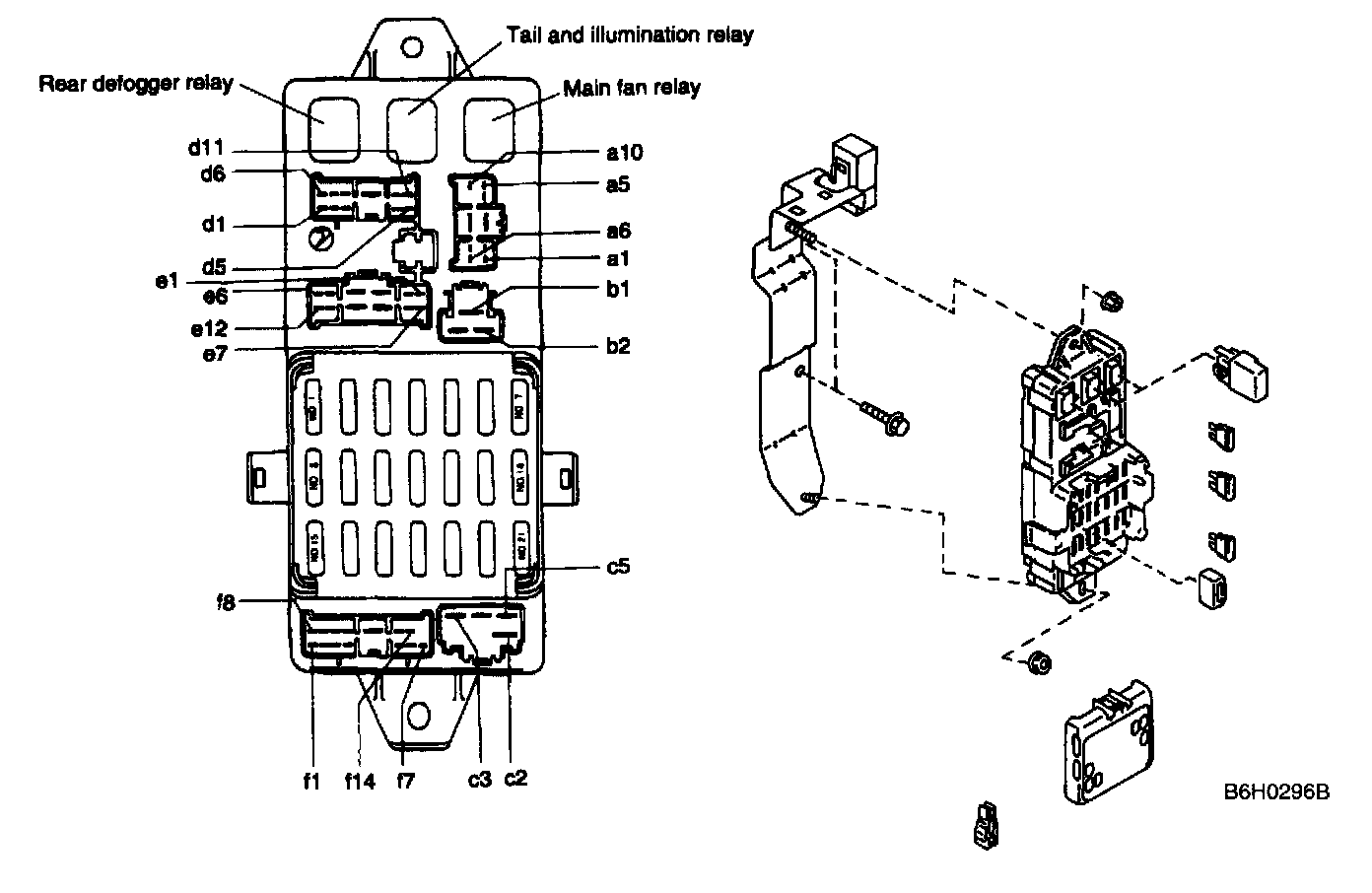

A: MAIN FUSE AND RELAY BOX
The main fuse and relay box is installed at the rear of the battery on left side of the engine compartment.
The fuses, relays and fusible links are installed in the box as described.




B: JOINT BOX
The joint box is installed under the instrument panel on driver's side.
The fuses are installed in the joint box as described.
