Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
1998
>>
Forester AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
Heating and Air Conditioning
Air Conditioning System

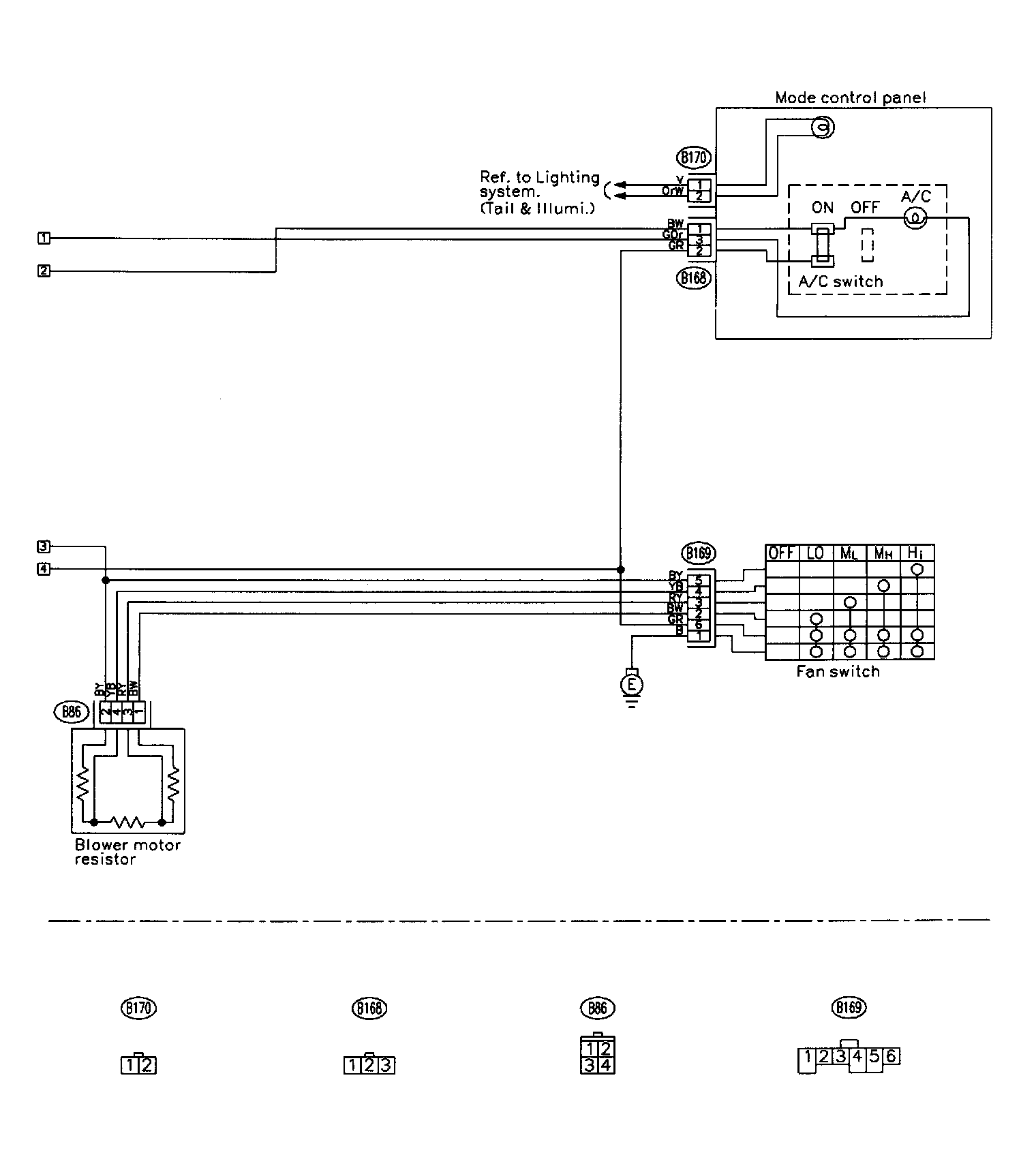

Air Conditioning System Part 1:
Air Conditioning System Part 2:
Circuit Diagrams
