Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

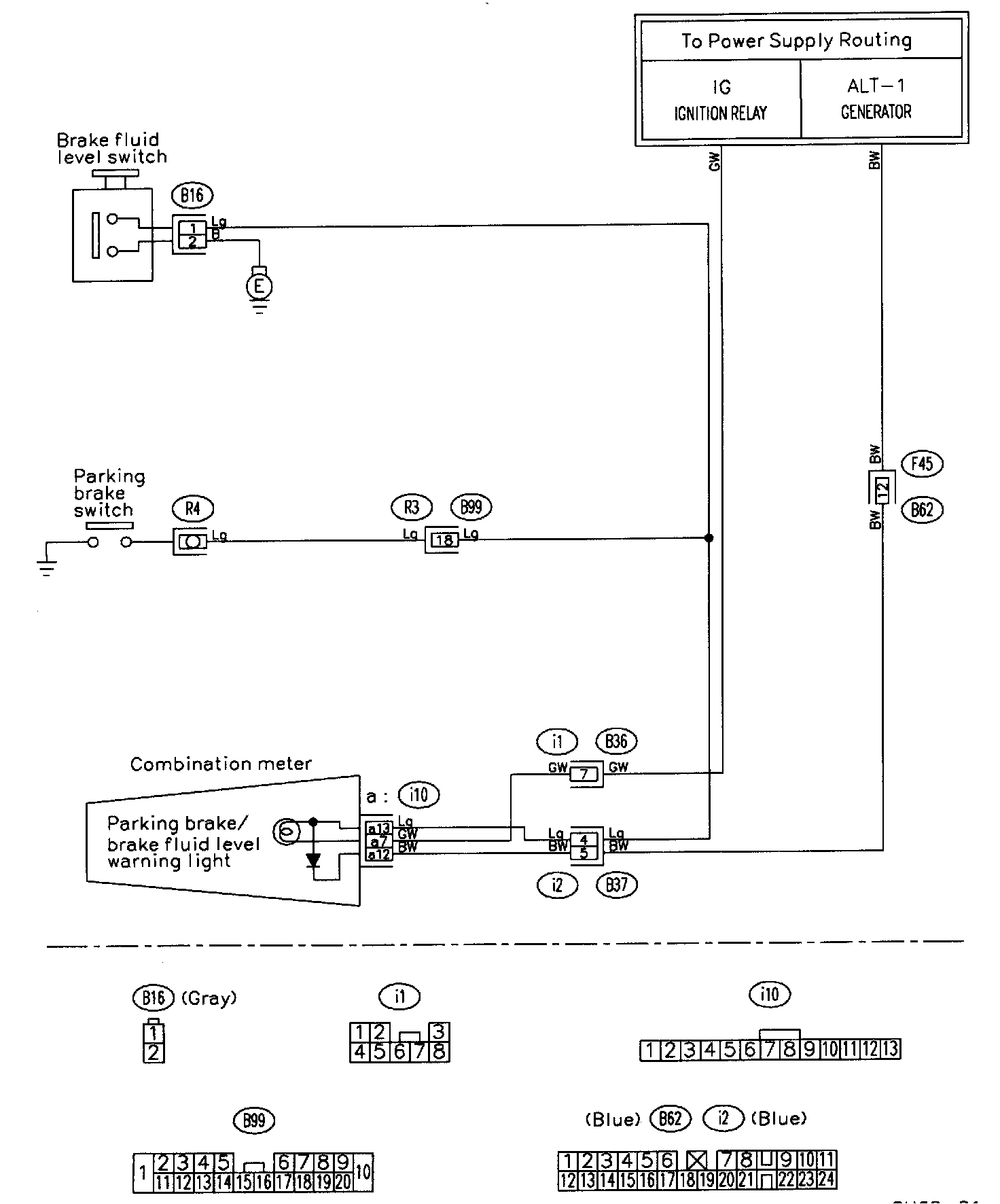

Parking Brake and Brake Fluid Level Warning System:
