Service Manuals - Corrections
NUMBER: 18-40-97DATE: 11-20-97
APPLICABILITY
1998 Forester Service Manual
SUBJECT
Service Manual Correction

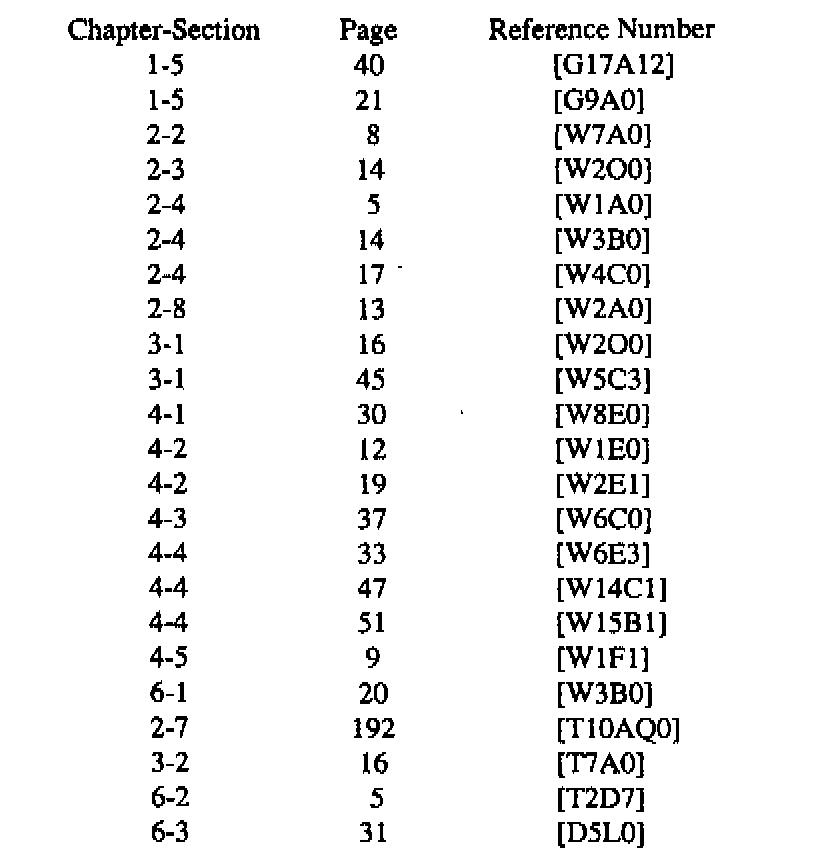

Please locate and replace the affected pages.
The reference numbers of the new pages may change, however the page number will always match.
Please perform this correction as soon as possible to ensure the most correct information is conveyed each time the Service Manual is use.

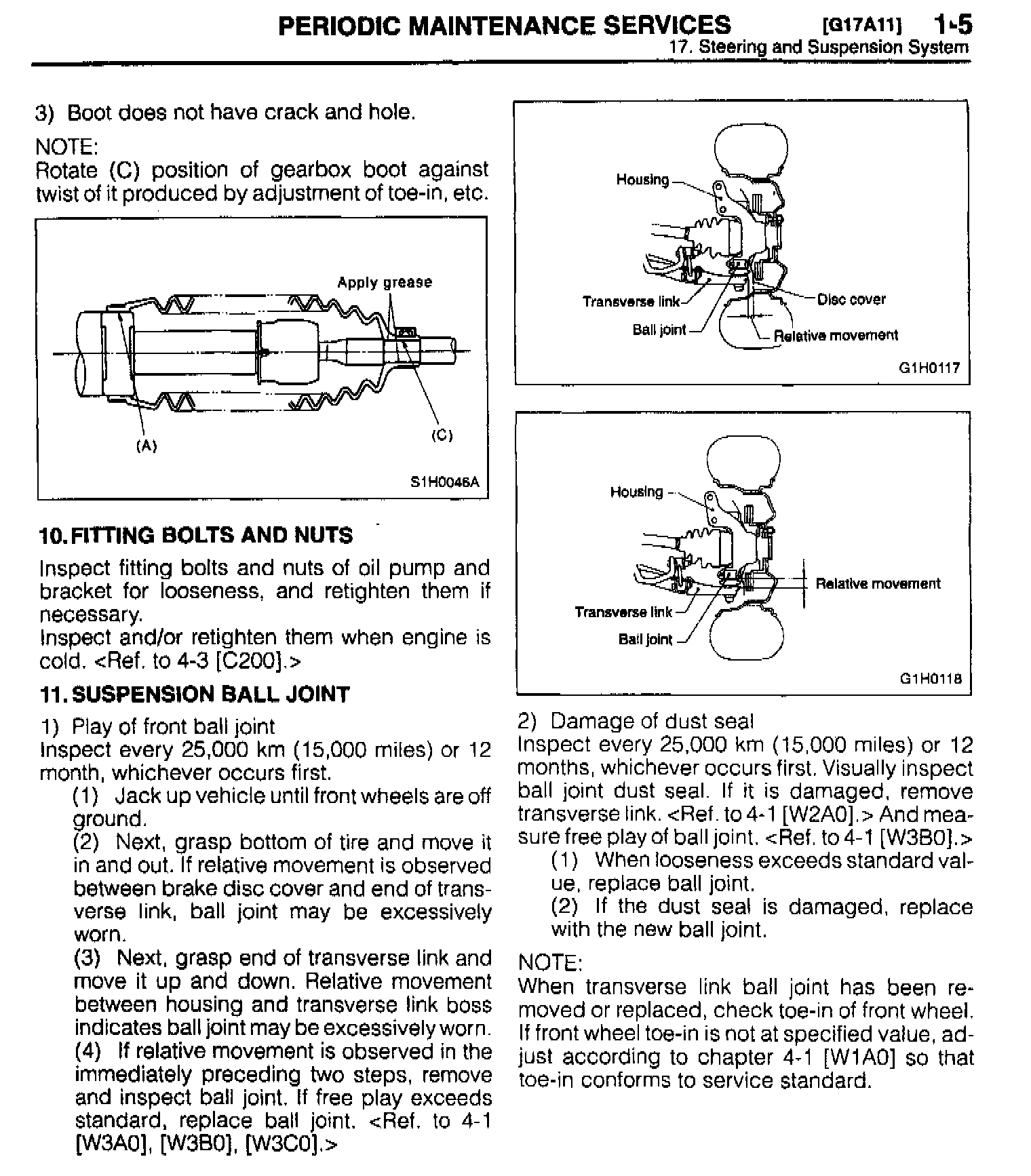

PERIODIC MAINTENANCE SERVICES [G17A11] 1-5

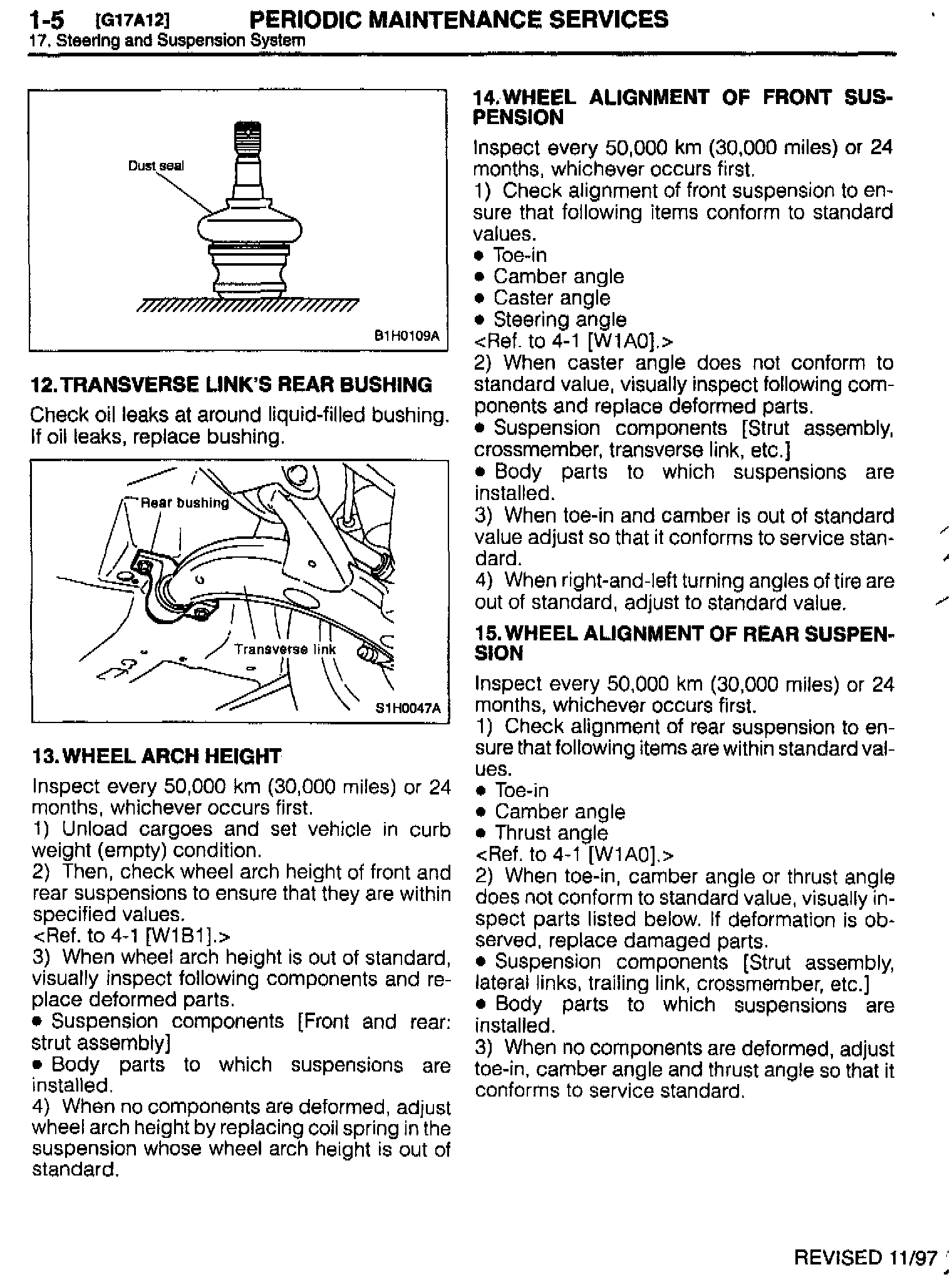

PERIODIC MAINTENANCE SERVICES 1-5 [G17A12]

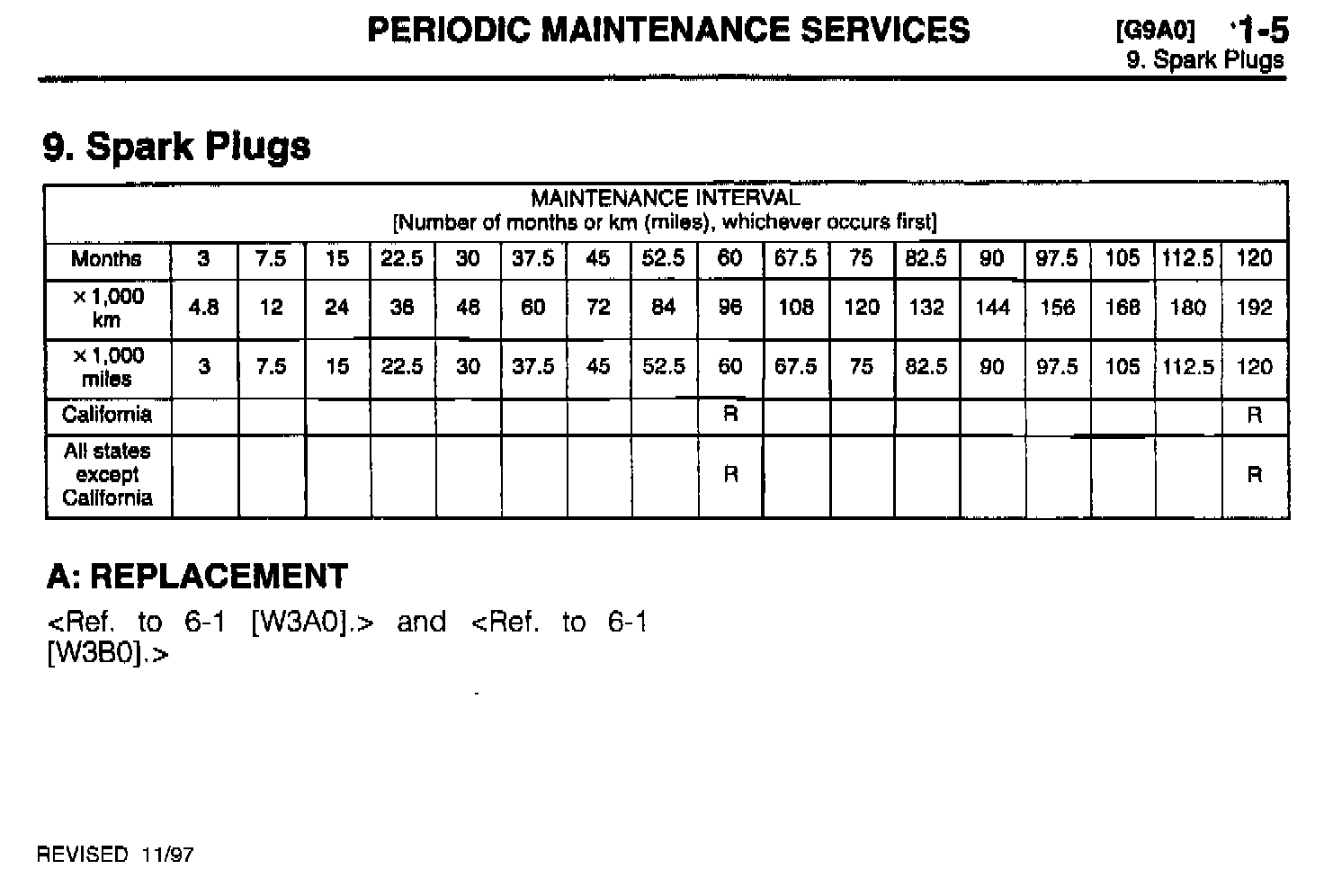

PERIODIC MAINTENANCE SERVICES [G9A0] 1-5

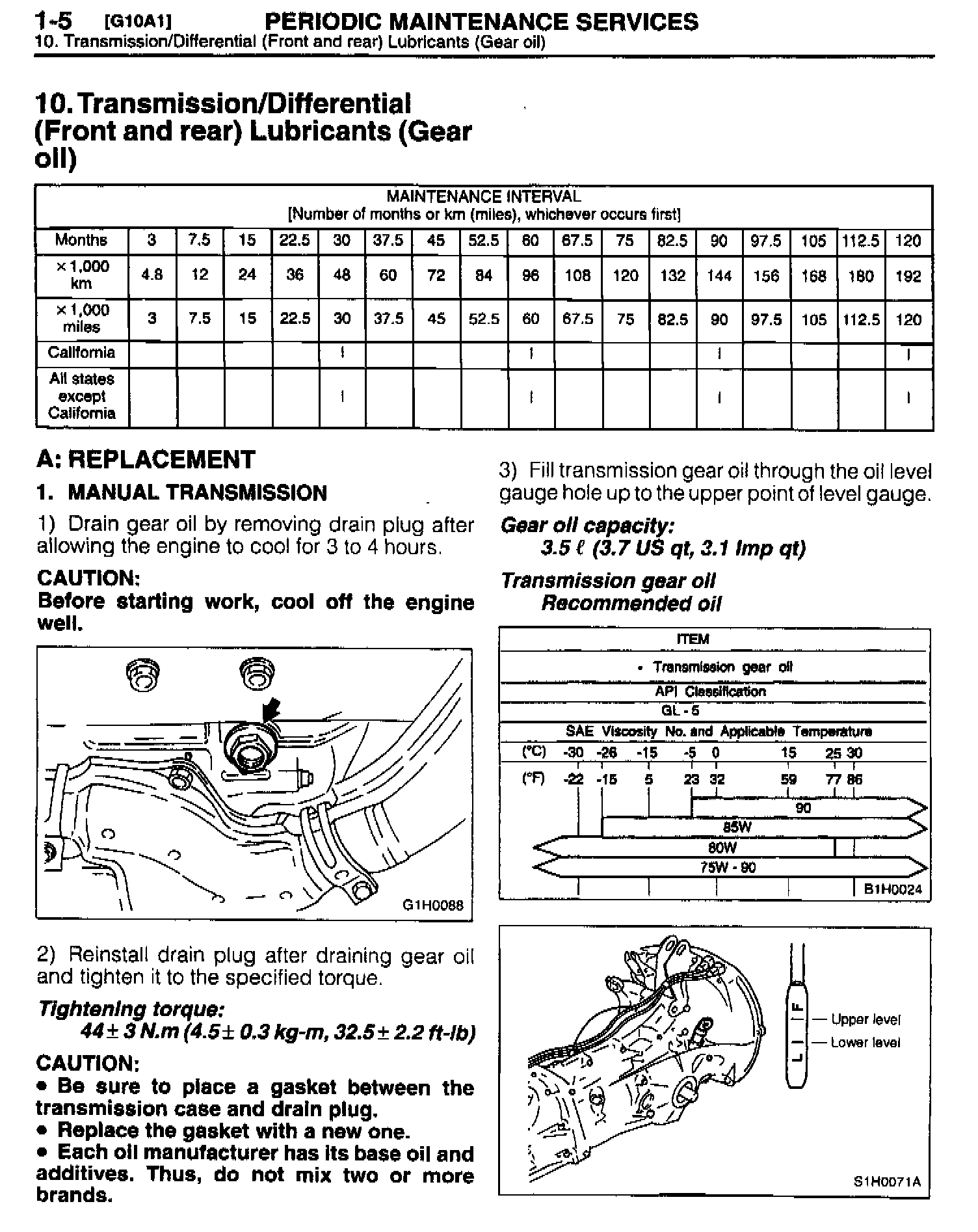

PERIODIC MAINTENANCE SERVICES 1-5 [G10A1]

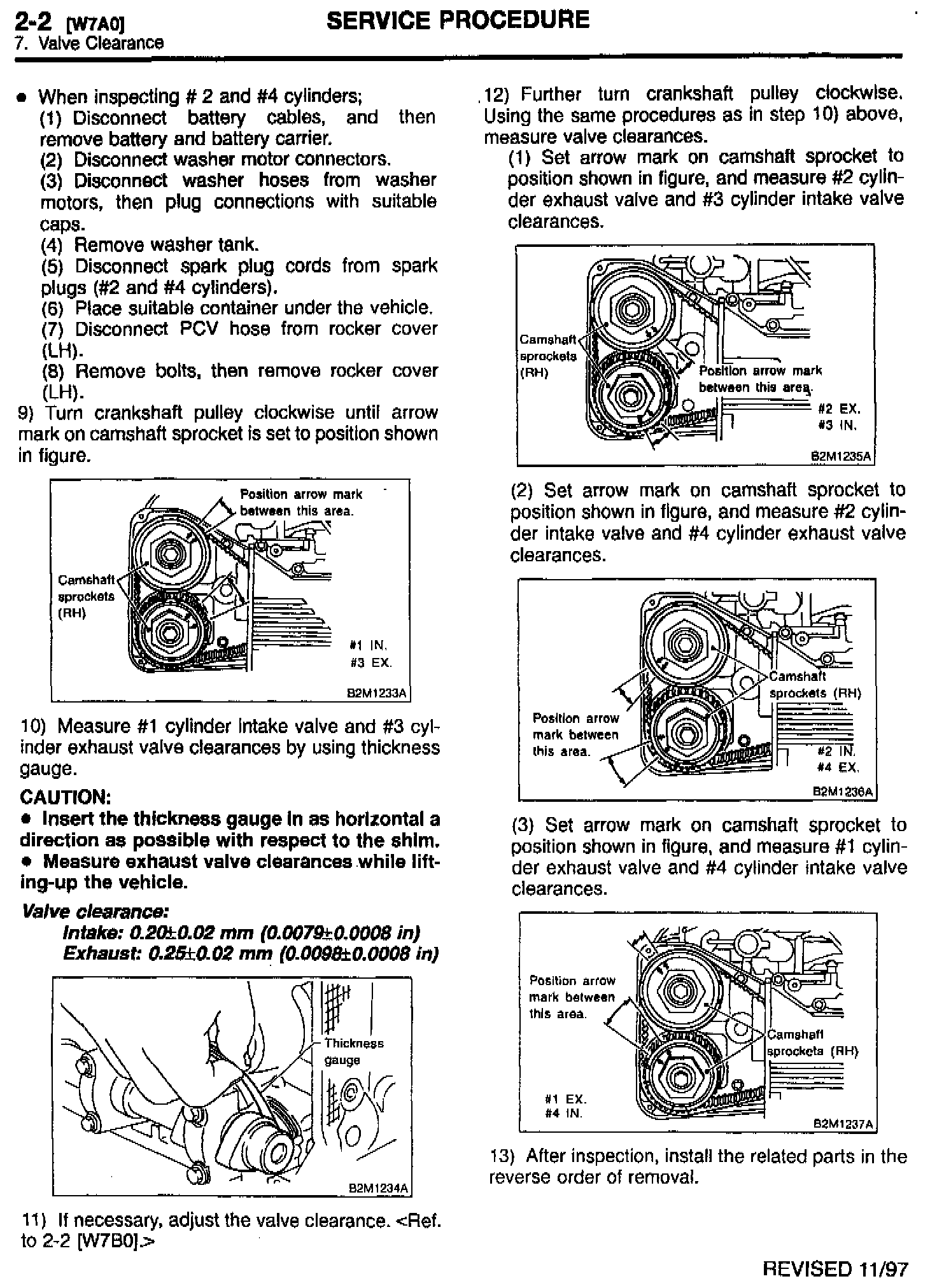

SERVICE PROCEDURE [W7A0] 2-2
SERVICE PROCEDURE [W7A0] 2-2

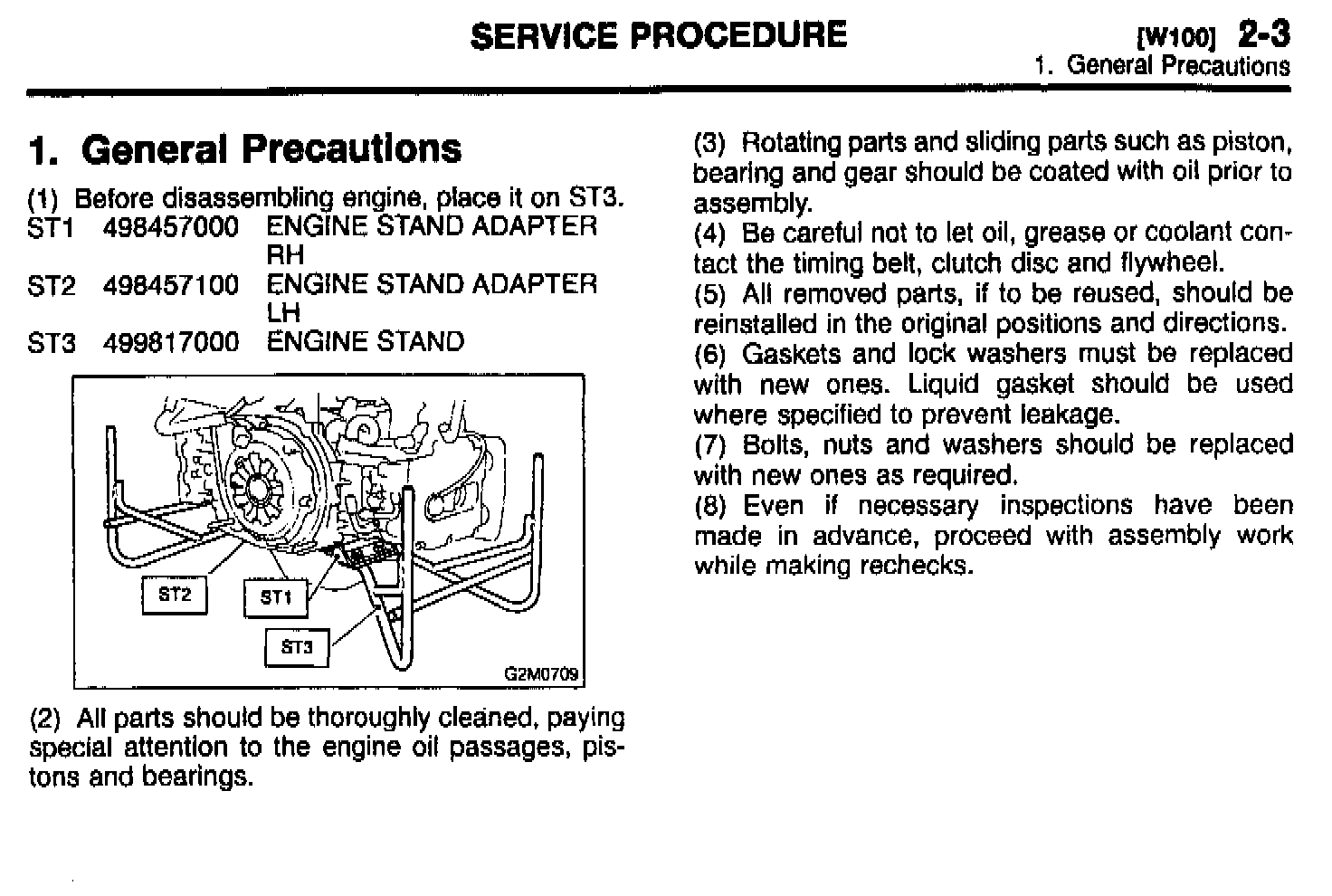

SERVICE PROCEDURE [W100] 2-3
��M>:
SERVICE PROCEDURE 2-4 [W3B0]

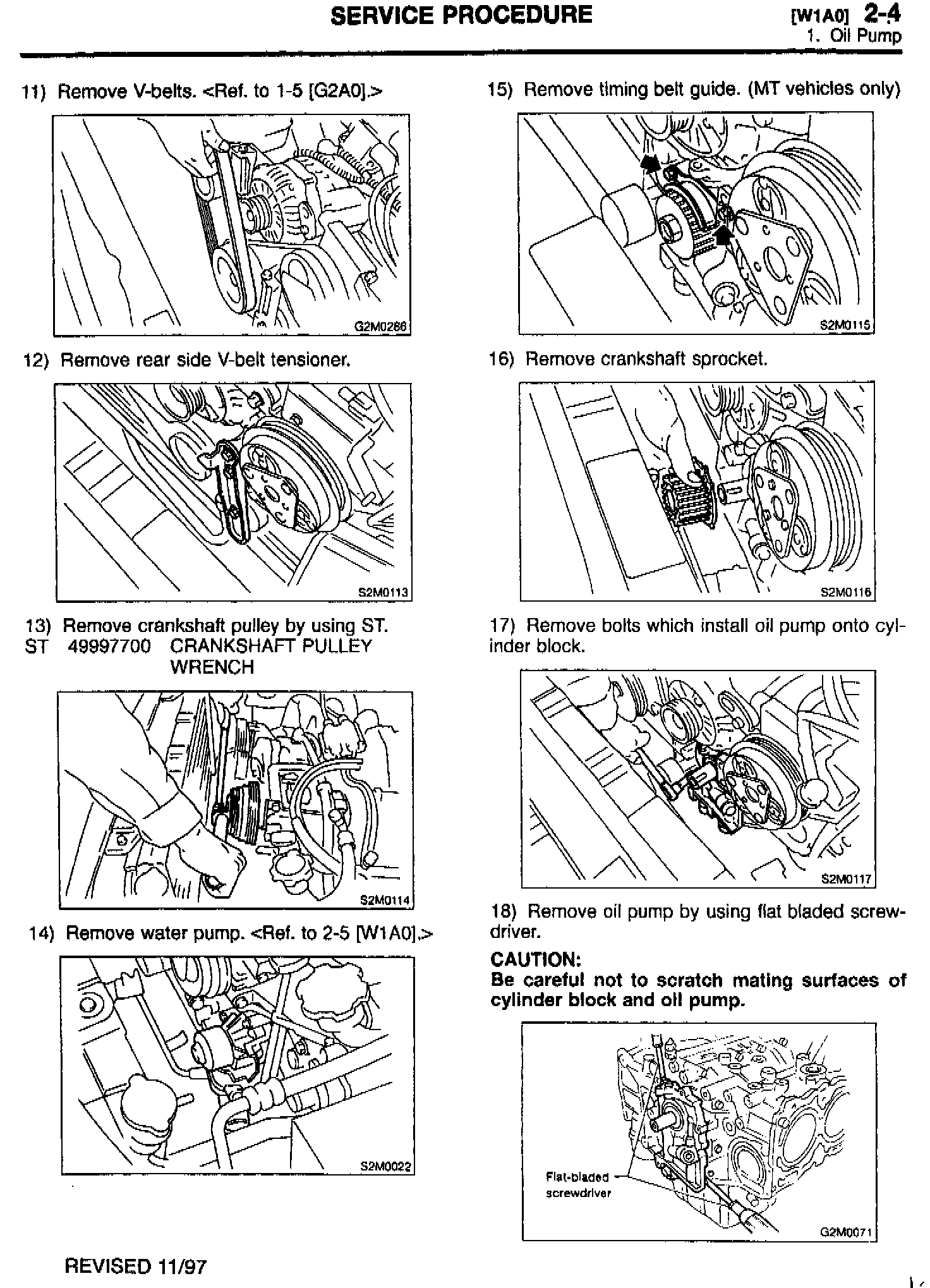

SERVICE PROCEDURE [W1A0] 2-4

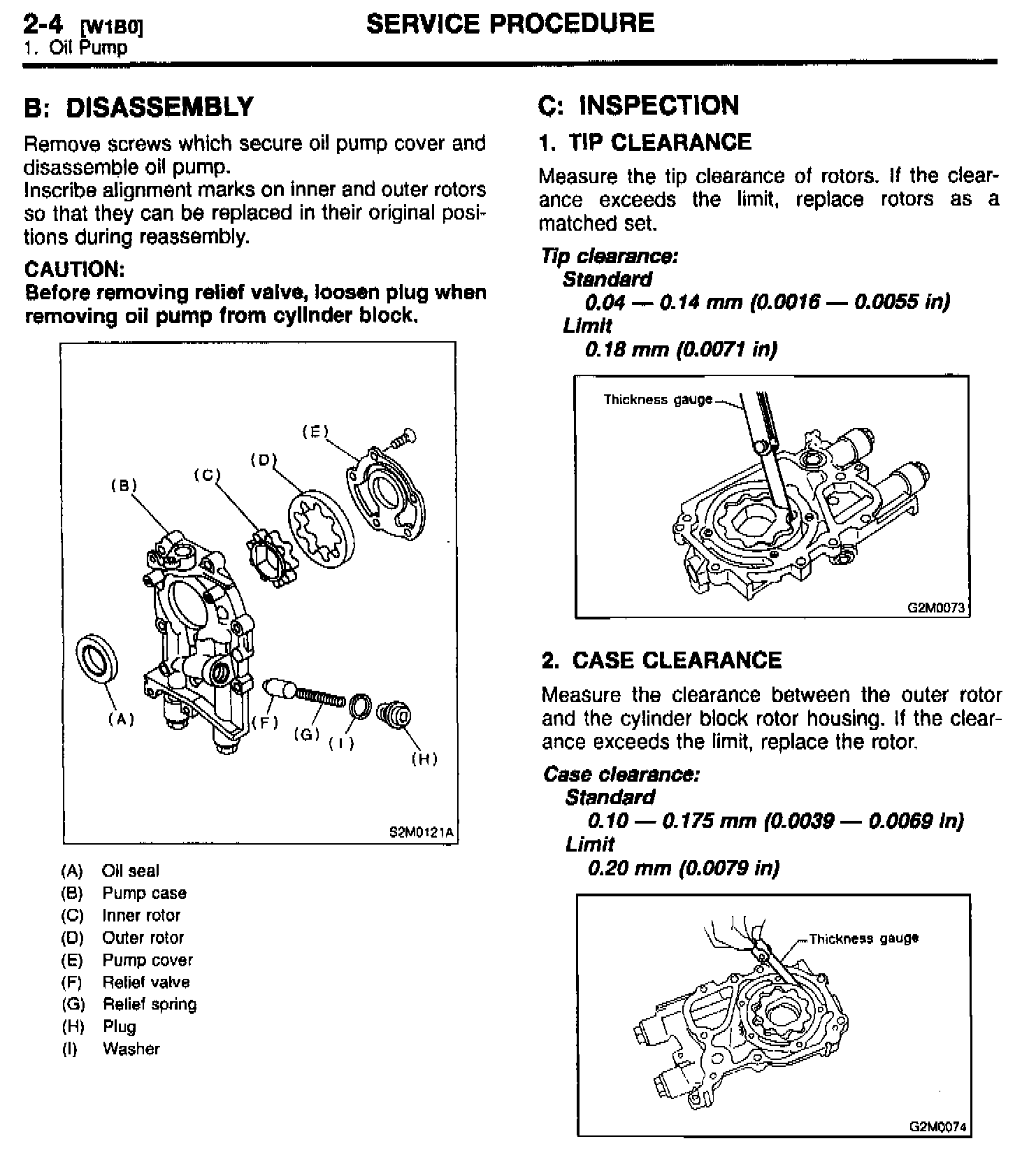

SERVICE PROCEDURE 2-4 [W1B0]

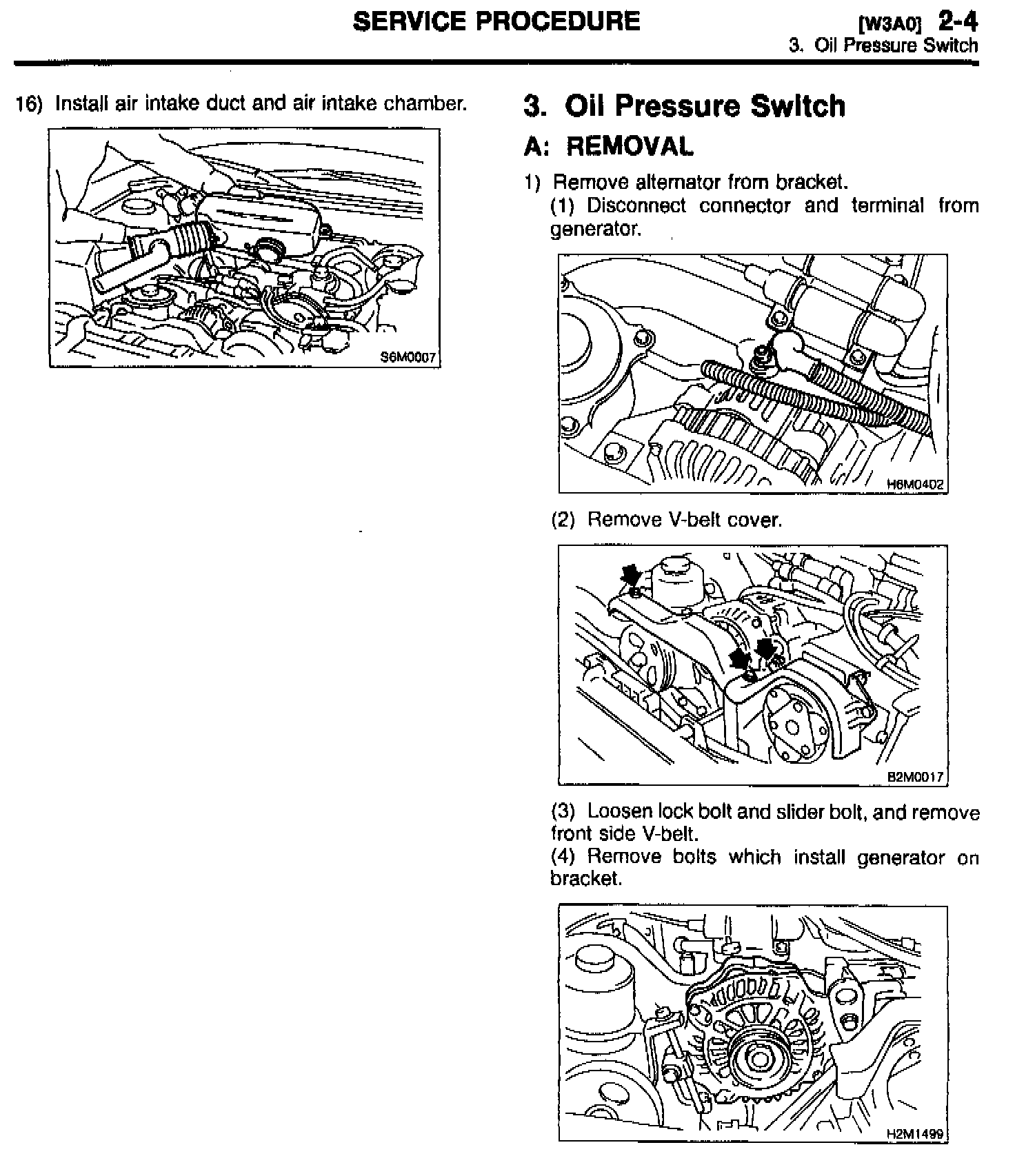

SERVICE PROCEDURE [W3A0] 2-4
SERVICE PROCEDURE 2-3 [W200]

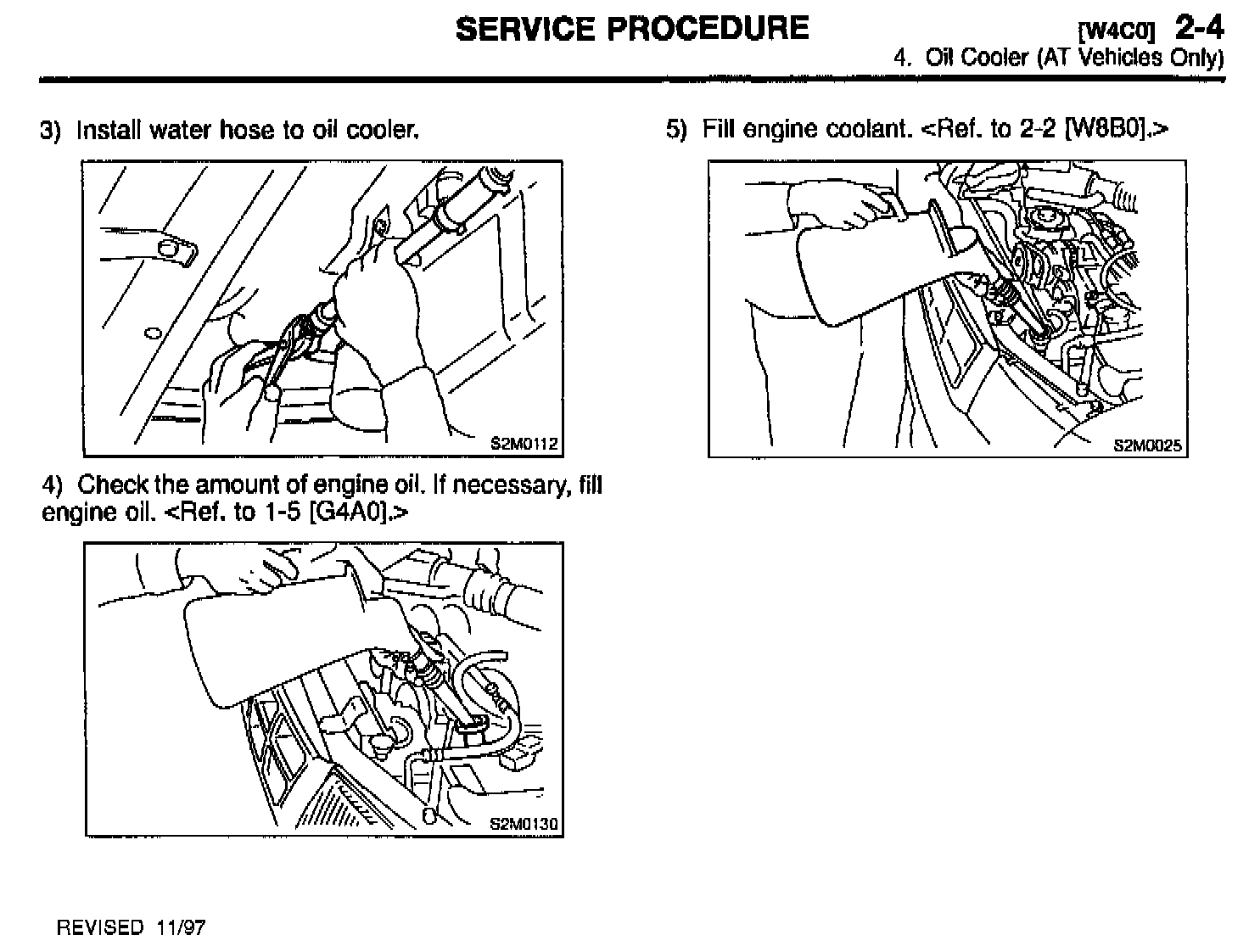

SERVICE PROCEDURE [W4C0] 2-4

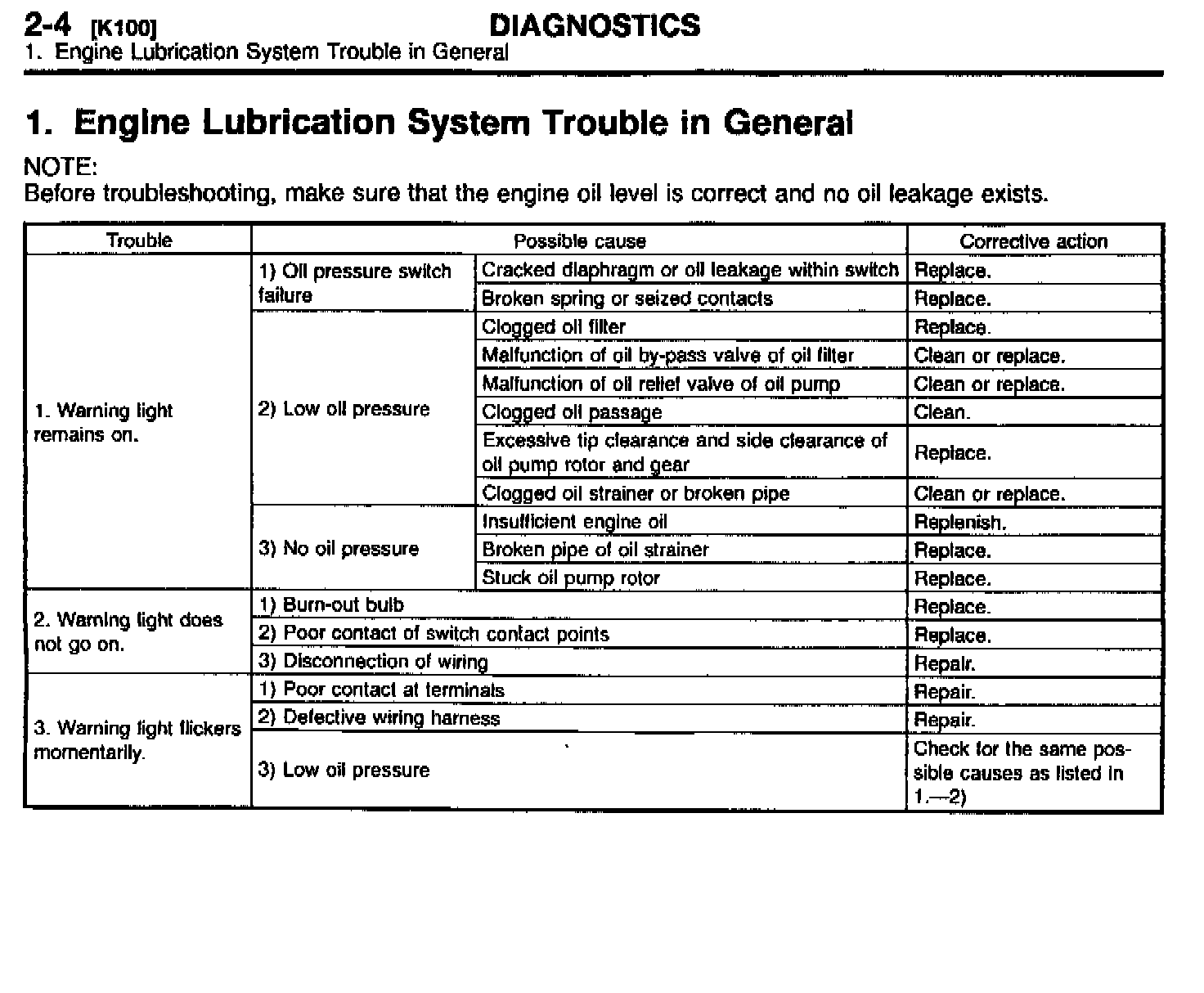

DIAGNOSTICS 2-4 [K100]
SERVICE PROCEDURE [W2A0] 2-8

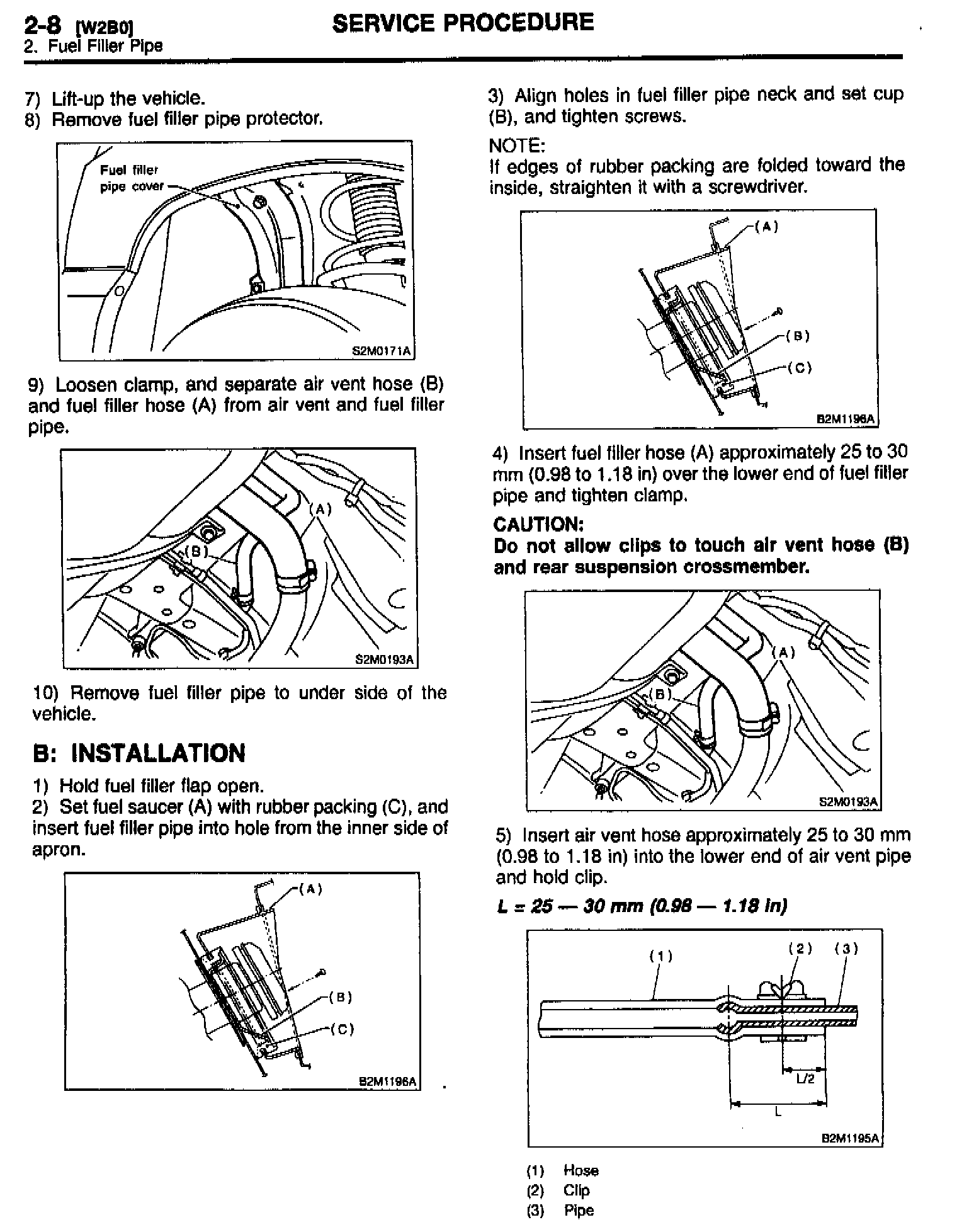

SERVICE PROCEDURE 2-8 [W2B0]

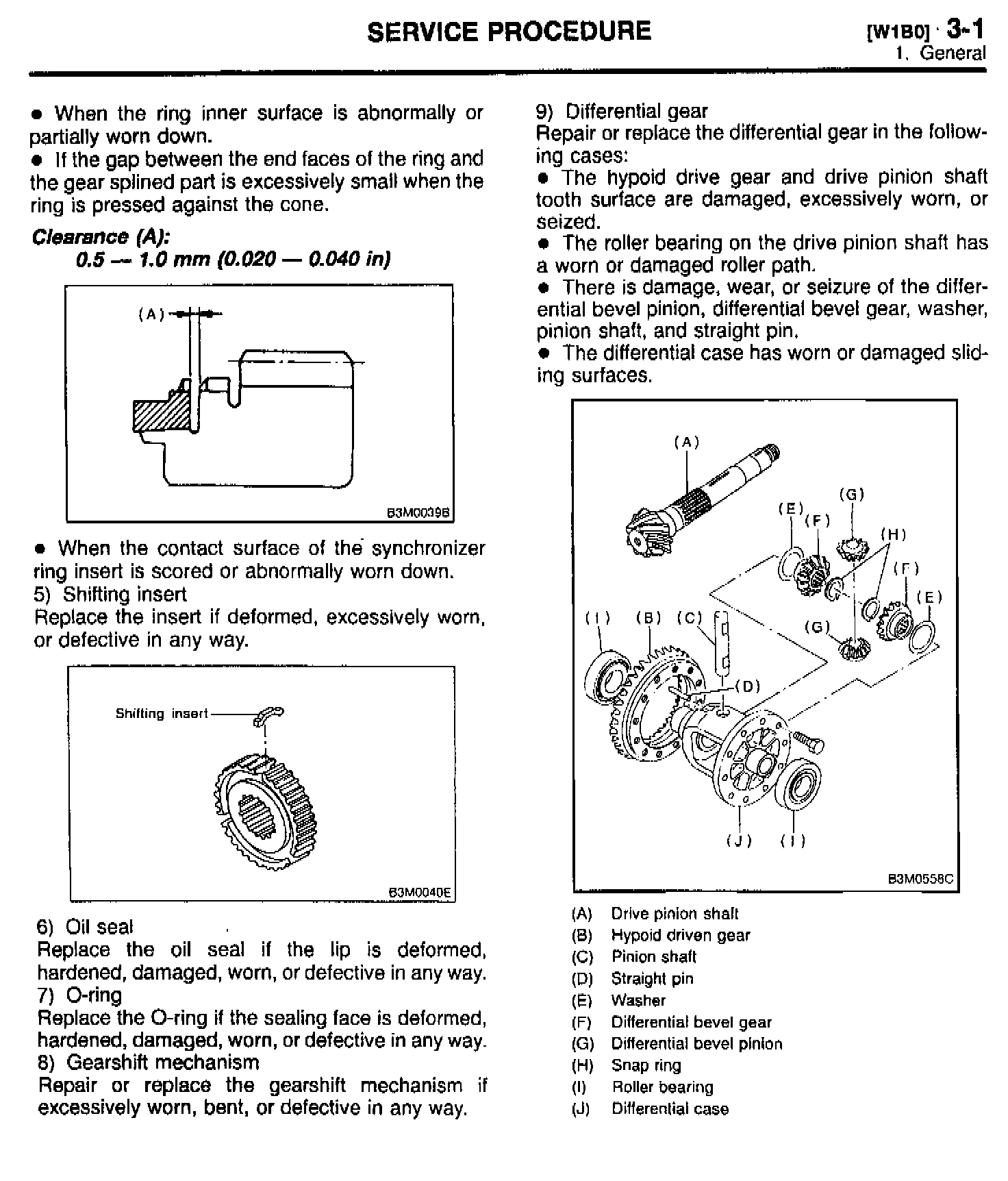

SERVICE PROCEDURE [W1B0] 3-1

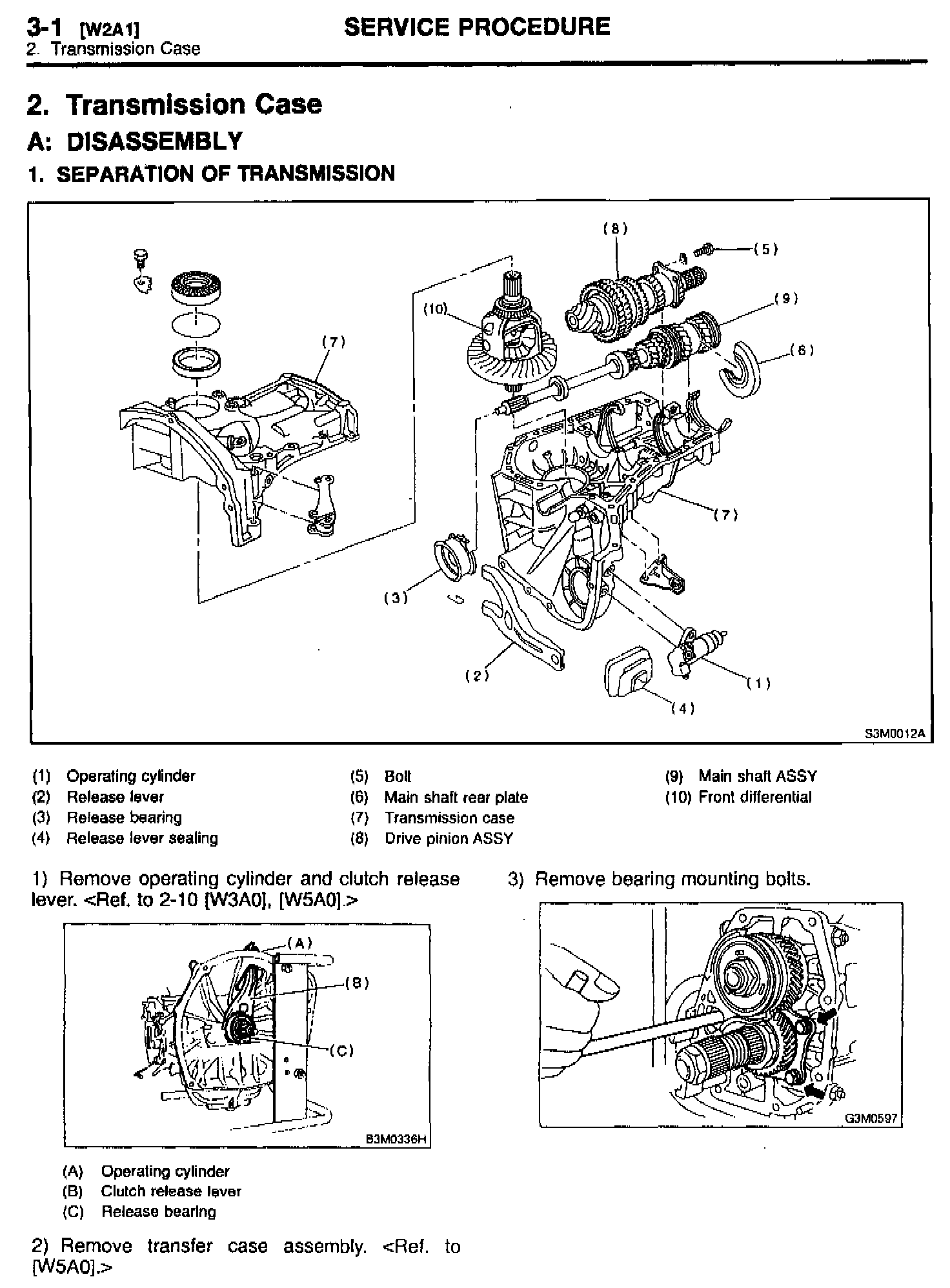

SERVICE PROCEDURE 3-1 [W2A1]

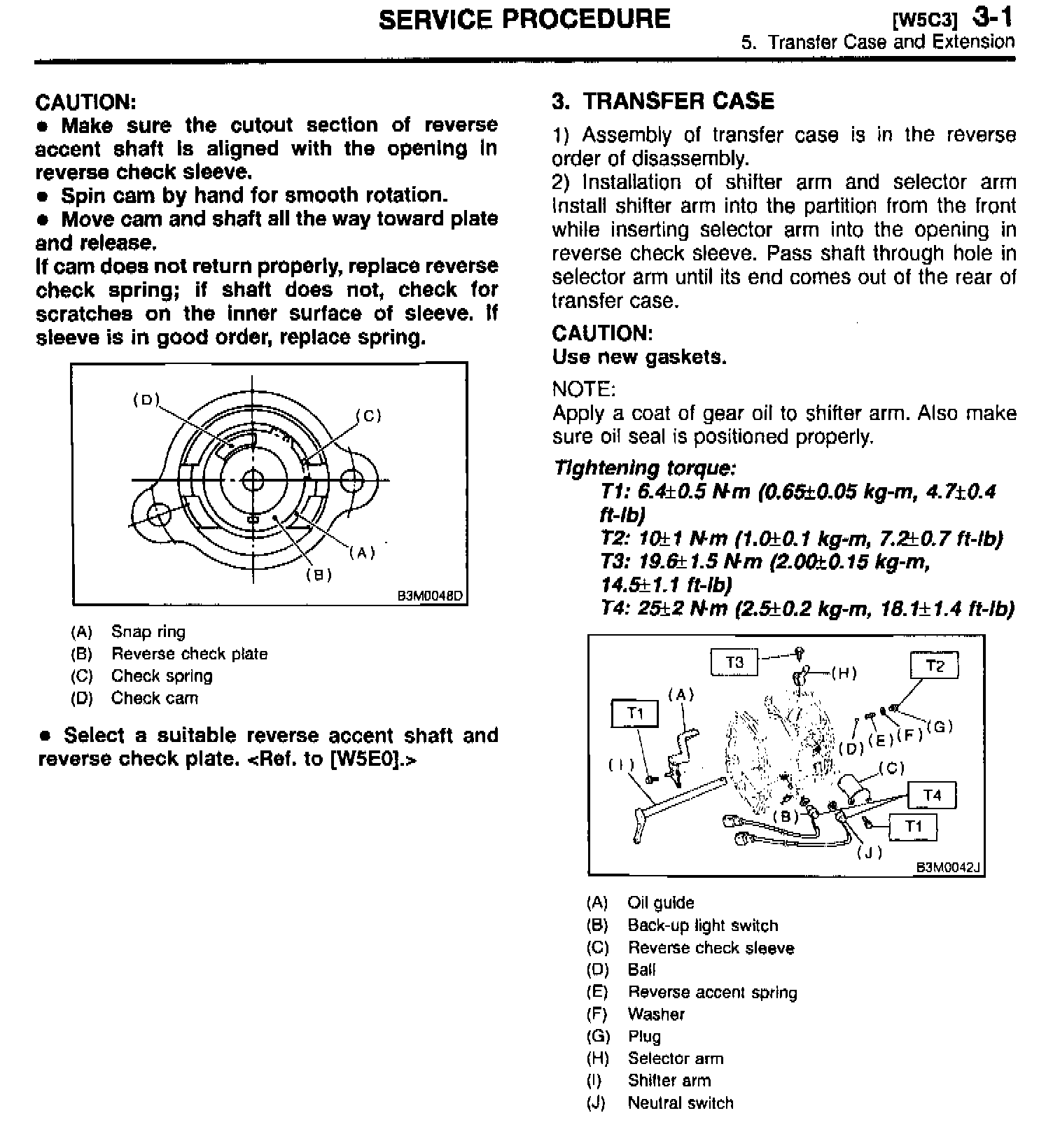

SERVICE PROCEDURE [W5C3] 3-1
SERVICE PROCEDURE 3-1 [W5C5]

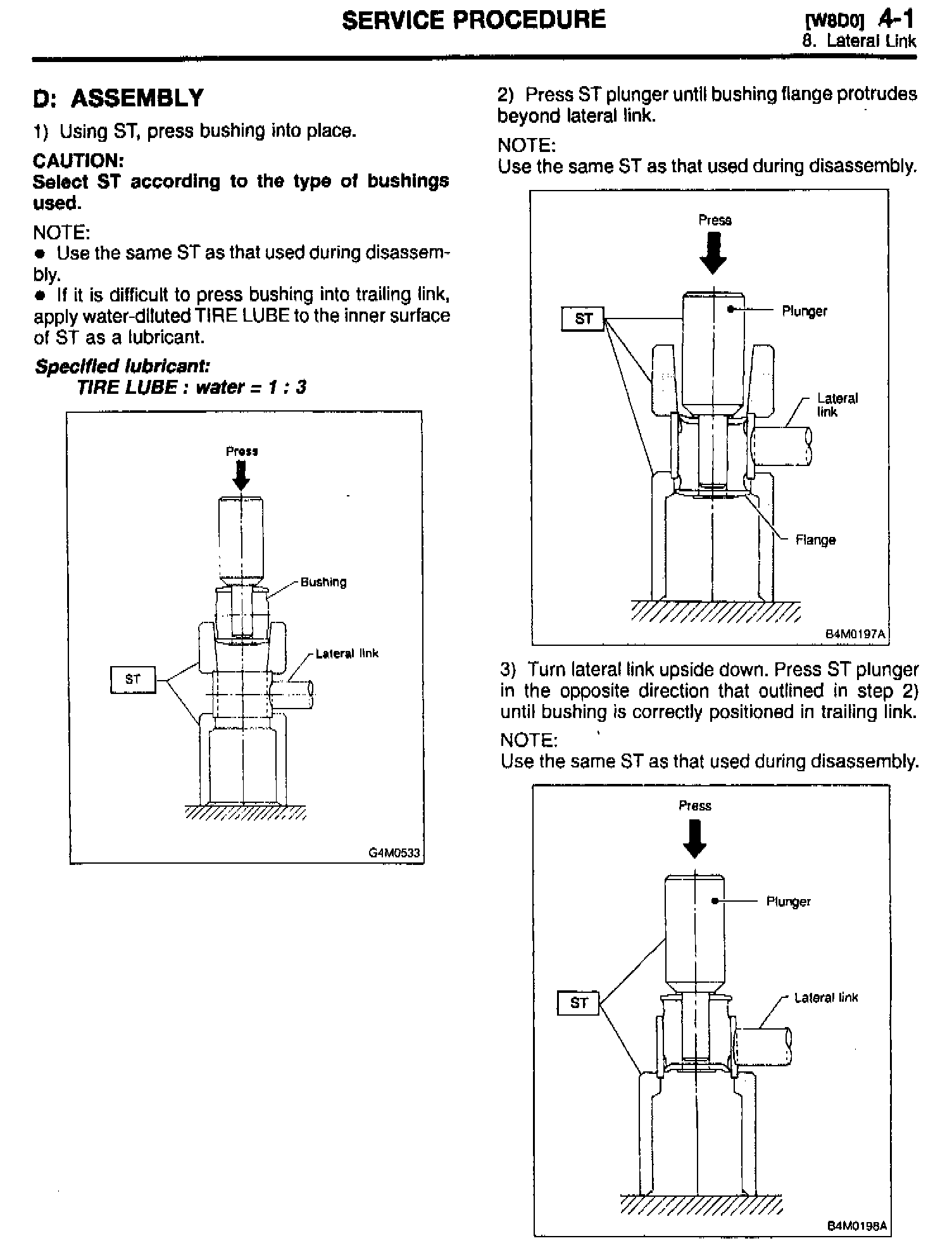

SERVICE PROCEDURE [W8D0] 4-1

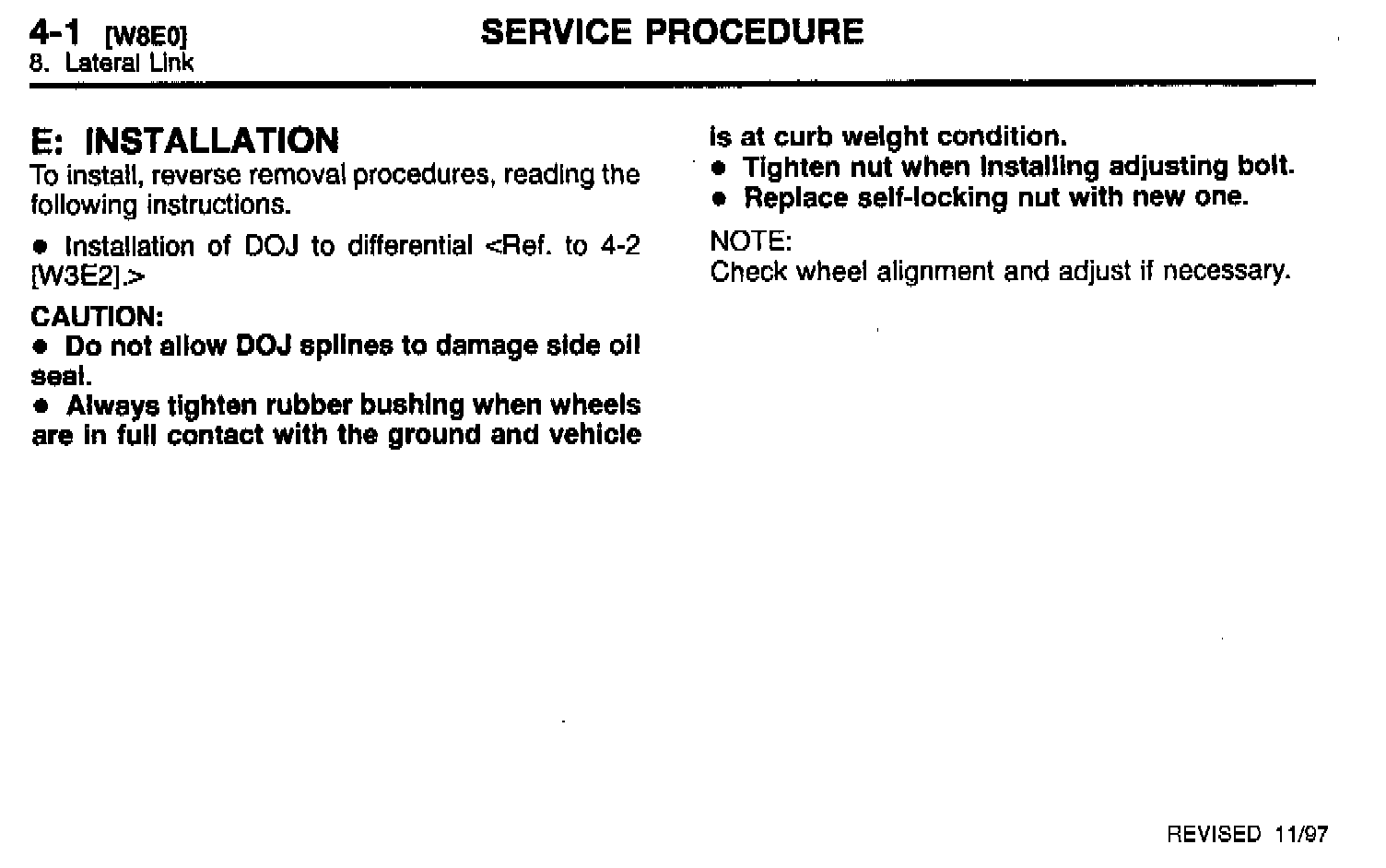

SERVICE PROCEDURE 4-1 [W8E0]

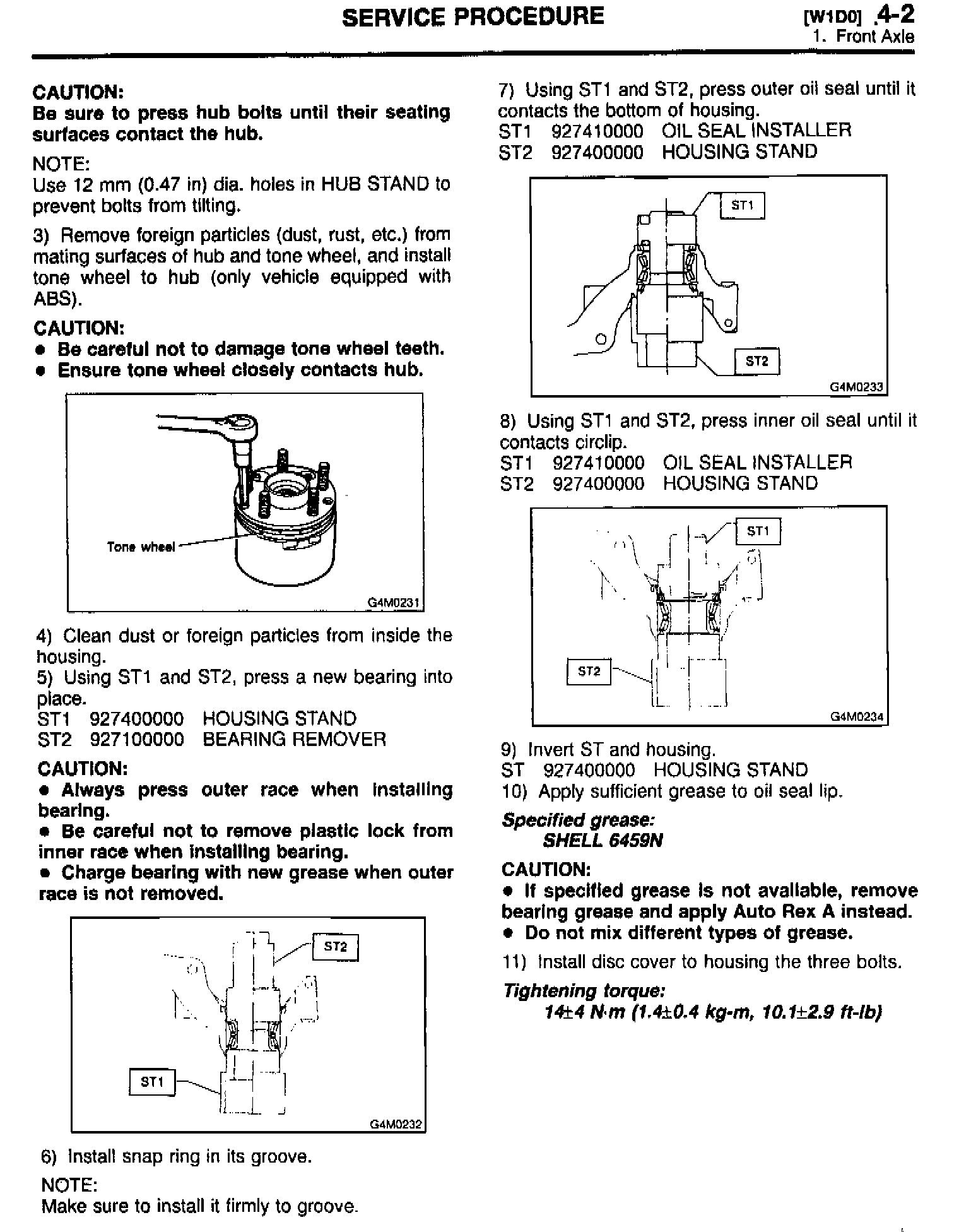

SERVICE PROCEDURE [W1D0] 4-2

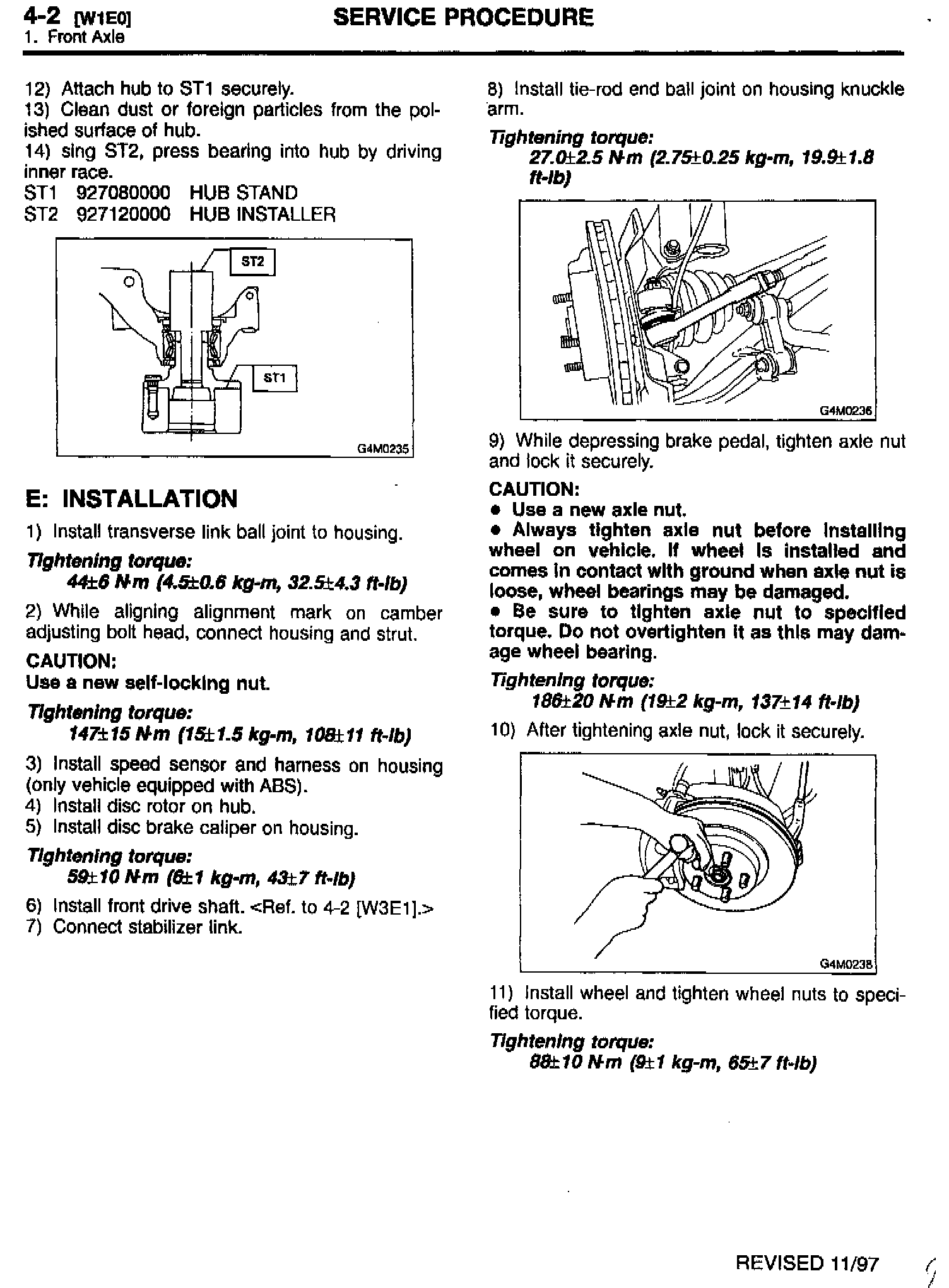

SERVICE PROCEDURE 4-2 [W1E0]

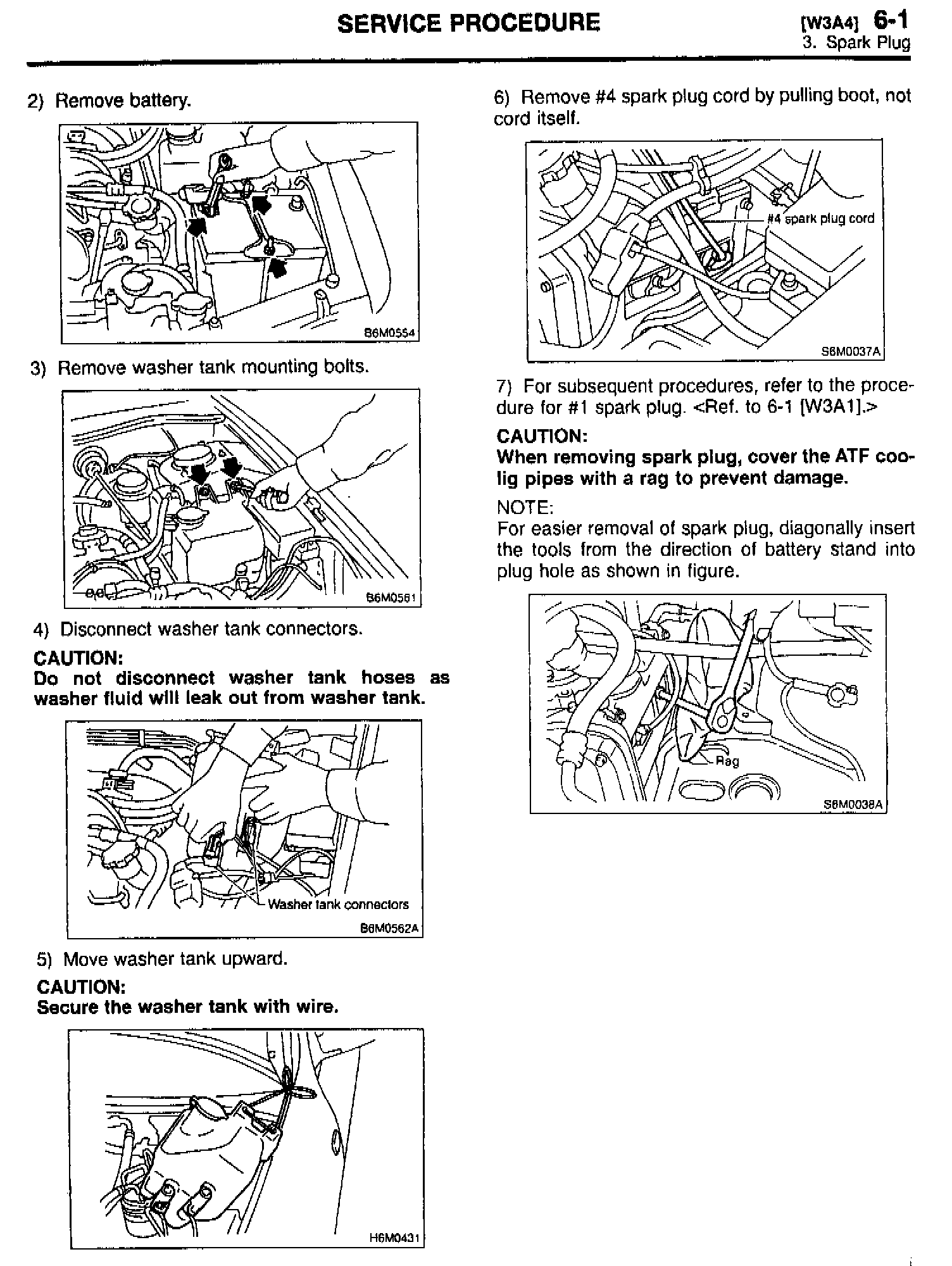

SERVICE PROCEDURE [W3A4] 6-1

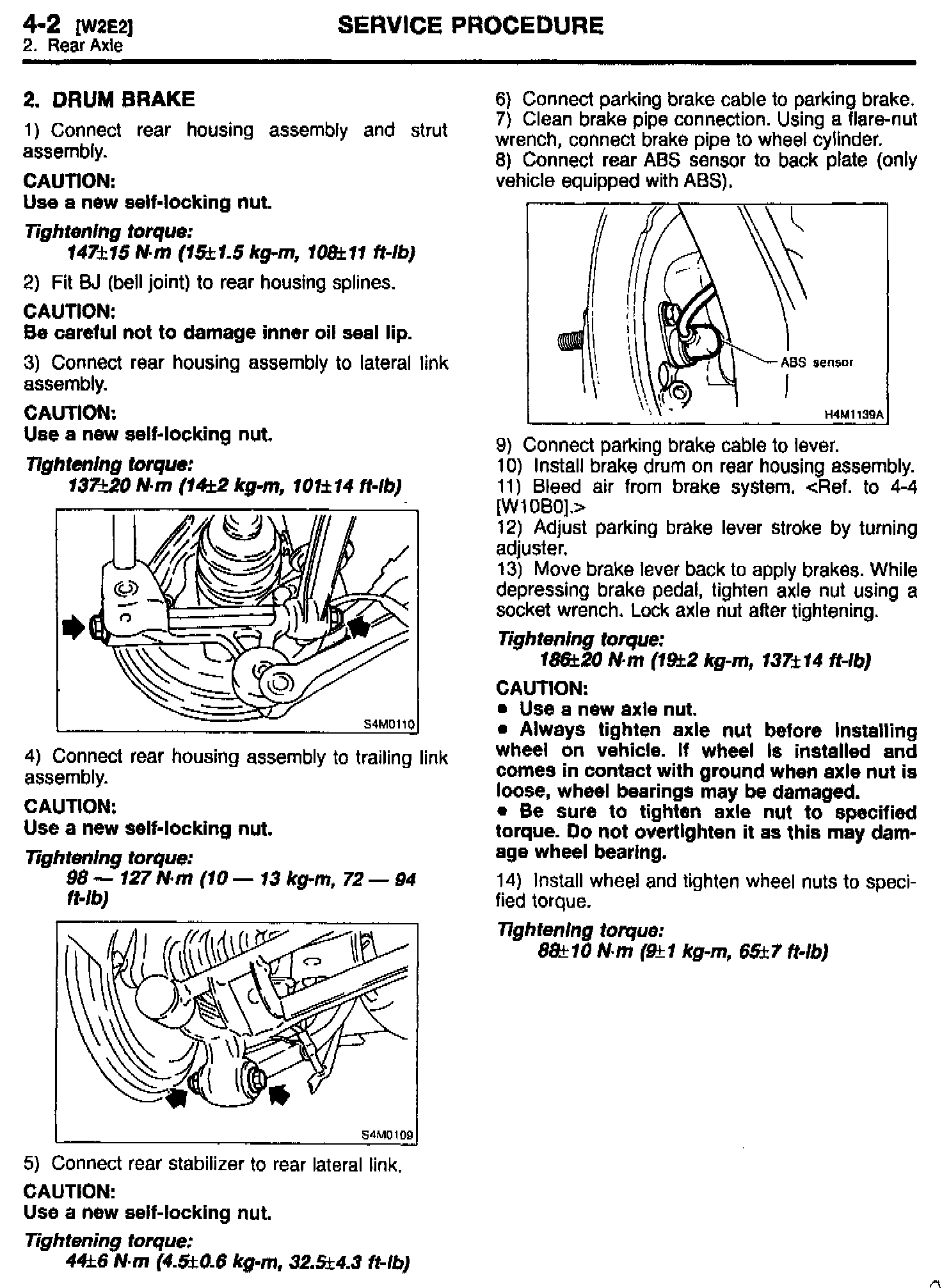

SERVICE PROCEDURE 4-2 [W2E2]

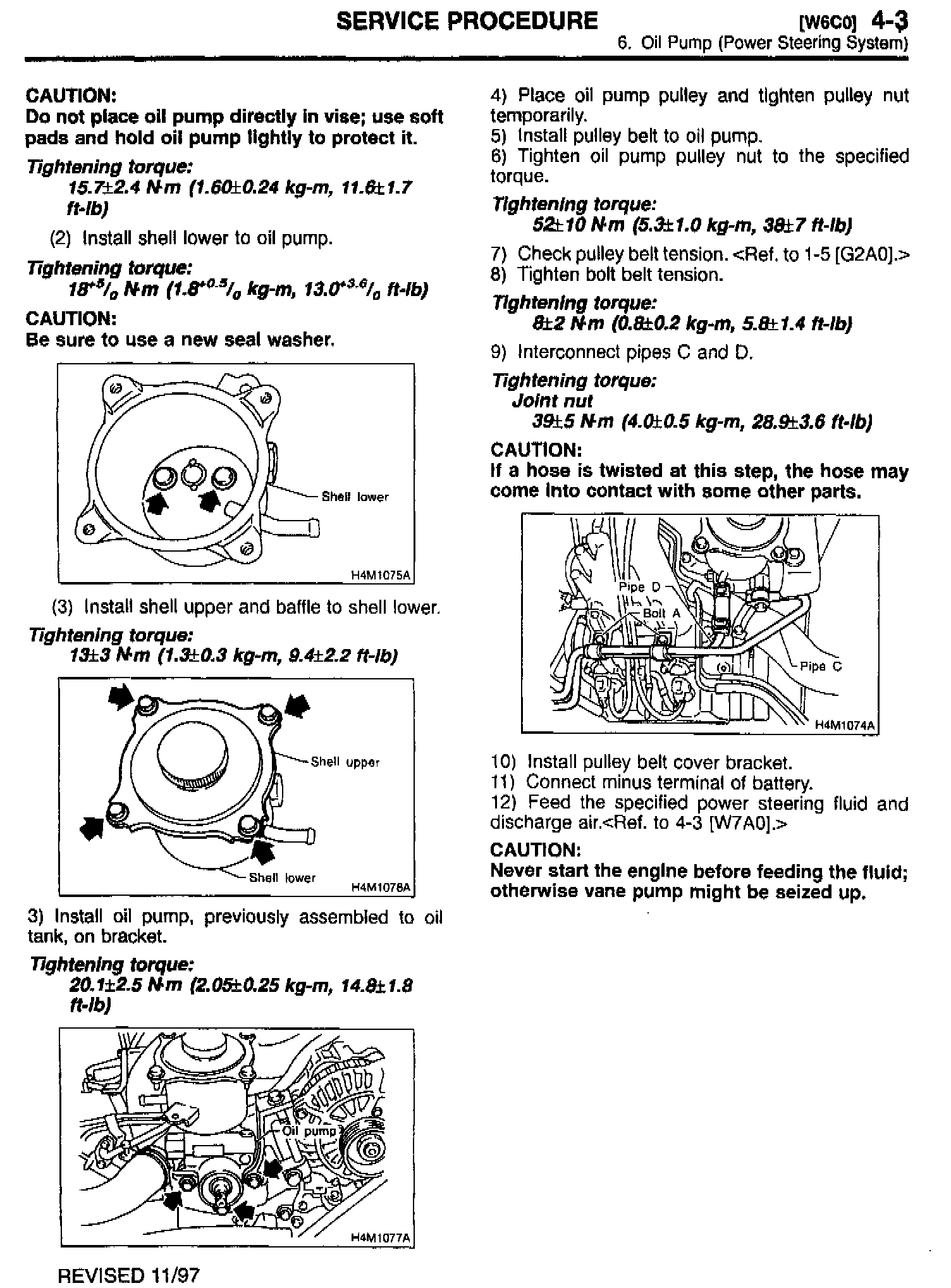

SERVICE PROCEDURE [W6C0] 4-3

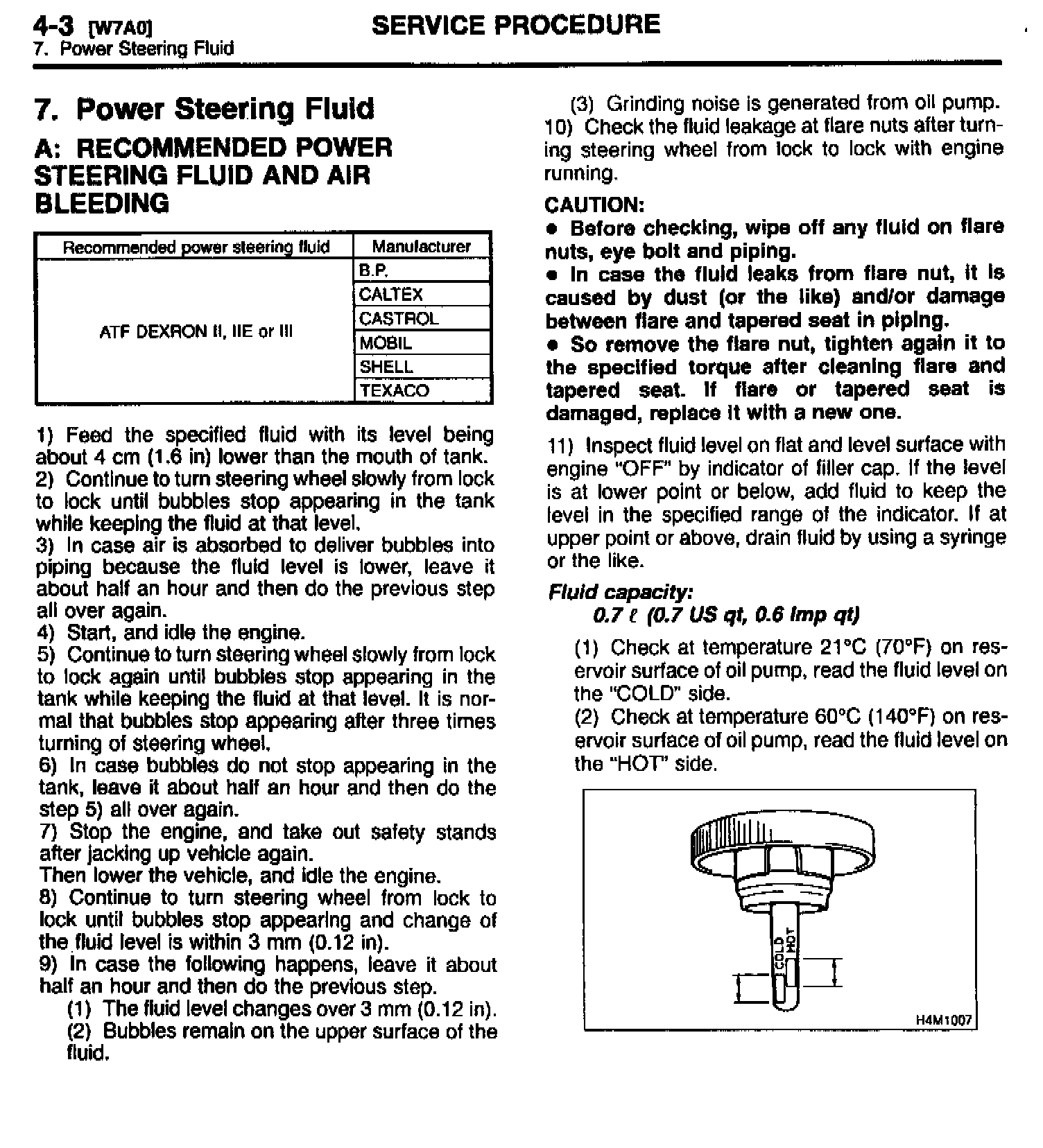

SERVICE PROCEDURE 4-3 [W7A0]

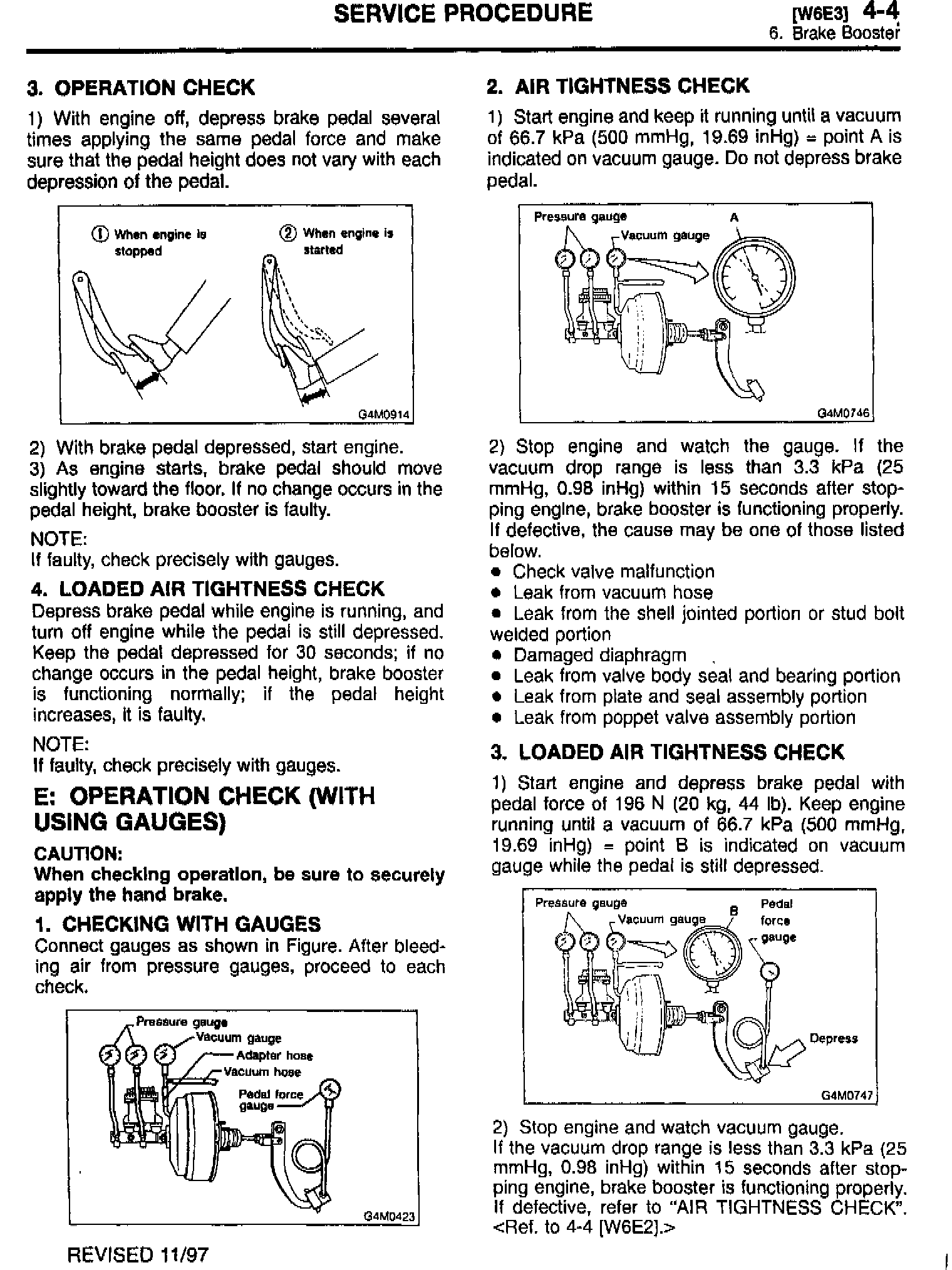

SERVICE PROCEDURE [W6E3] 4-4

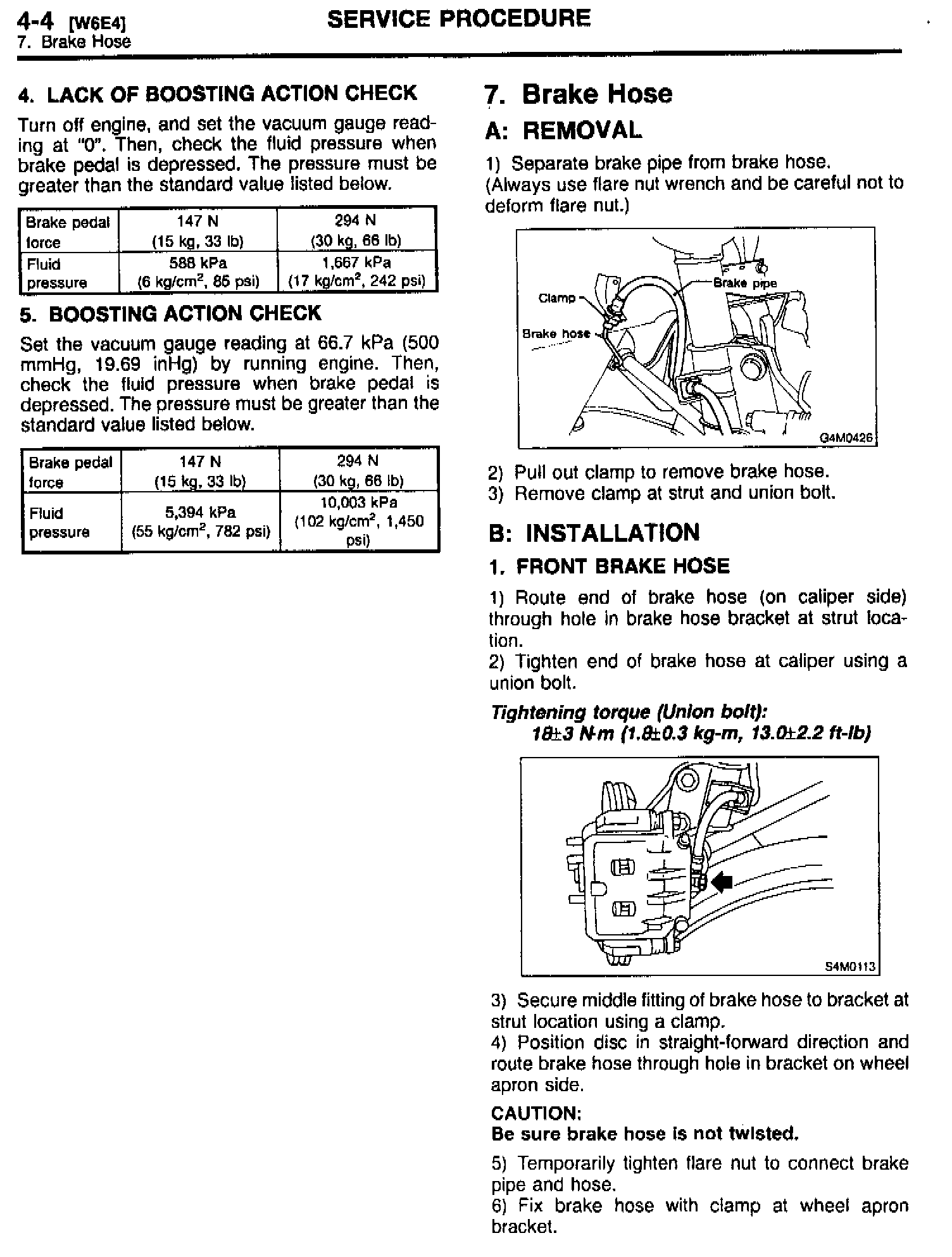

SERVICE PROCEDURE 4-4 [W6E4]

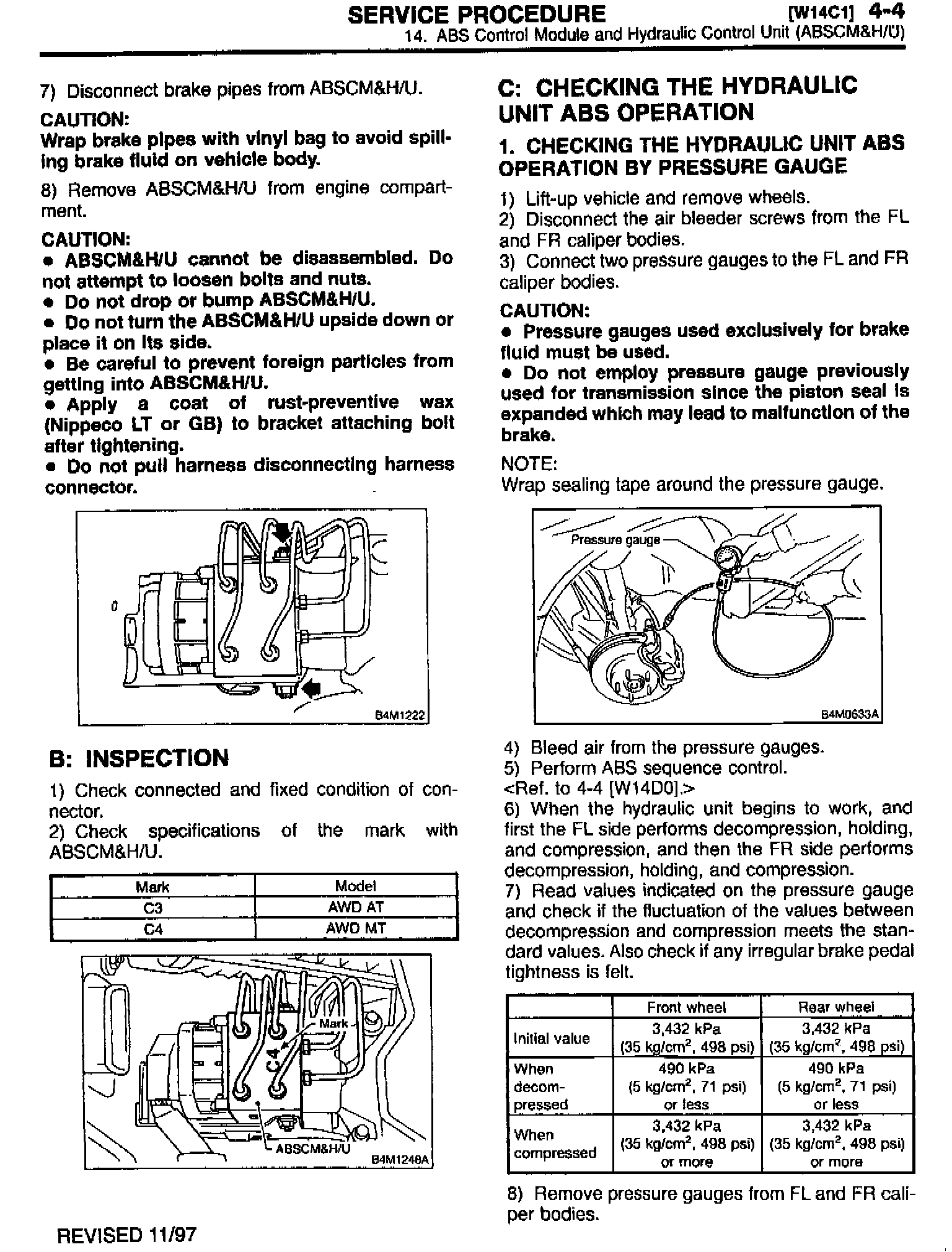

SERVICE PROCEDURE [W14C1] 4-4
SERVICE PROCEDURE 4-4 [W14C2]

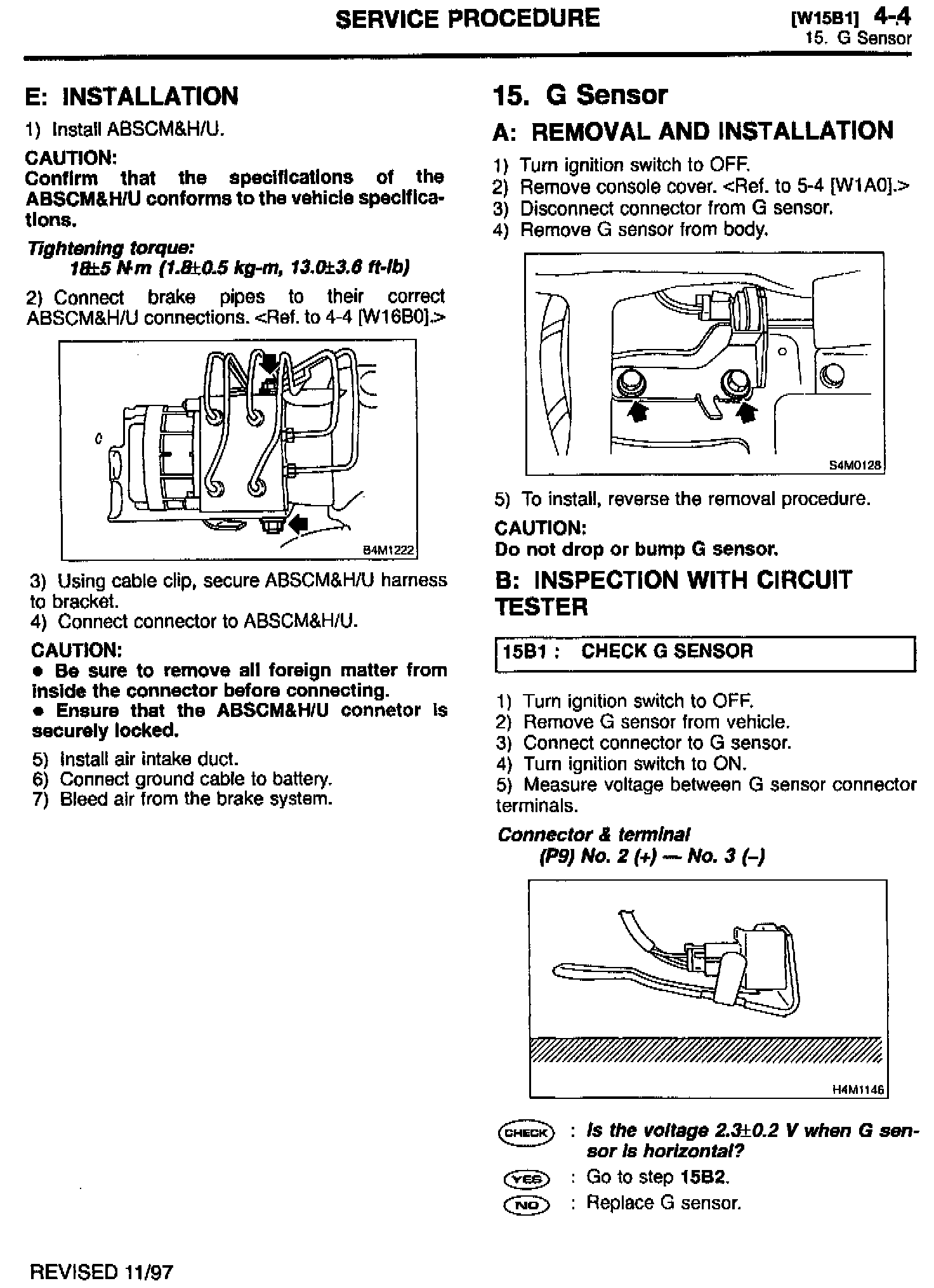

SERVICE PROCEDURE [W15B1] 4-4

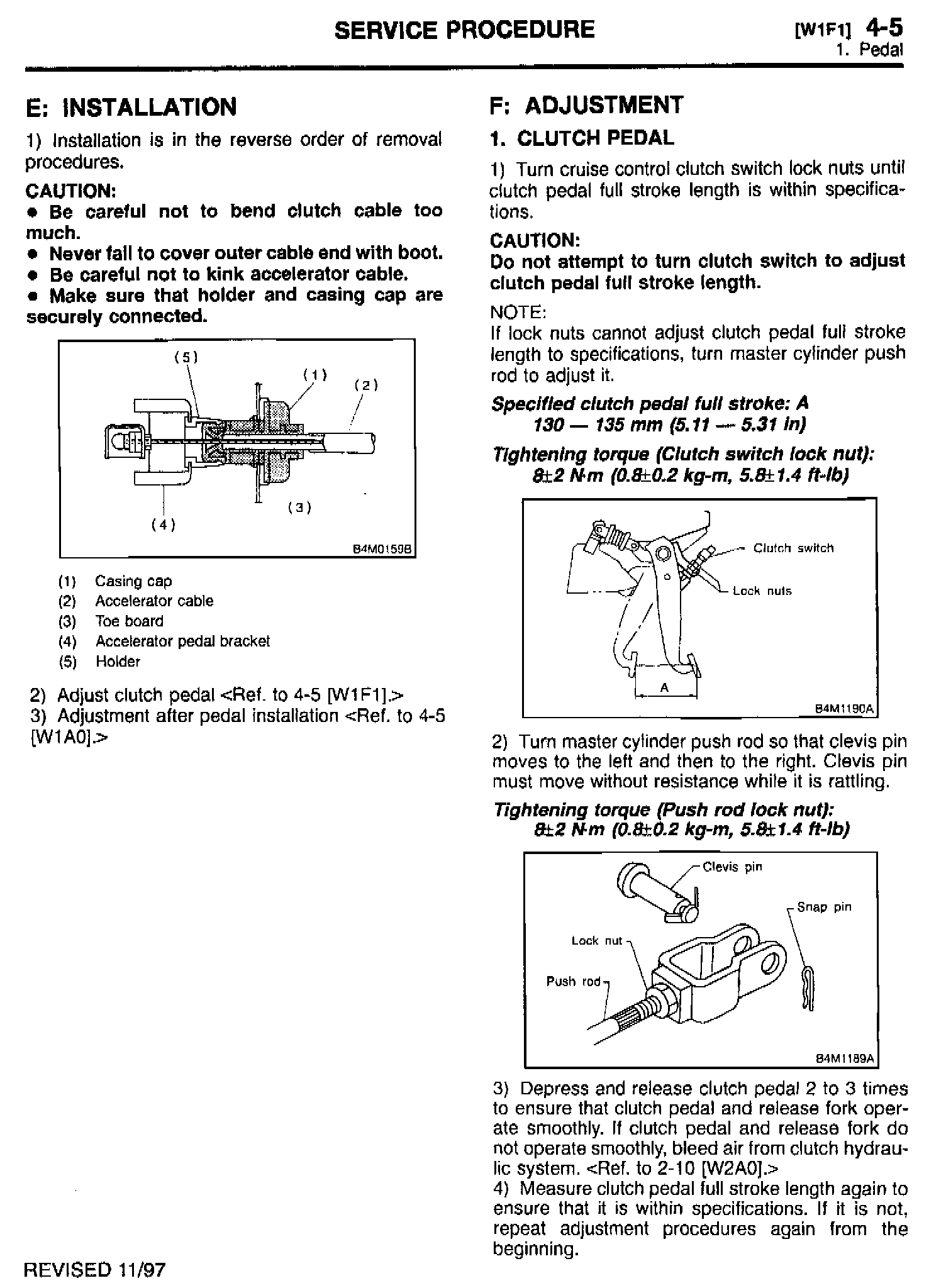

SERVICE PROCEDURE [W1F1] 4-5

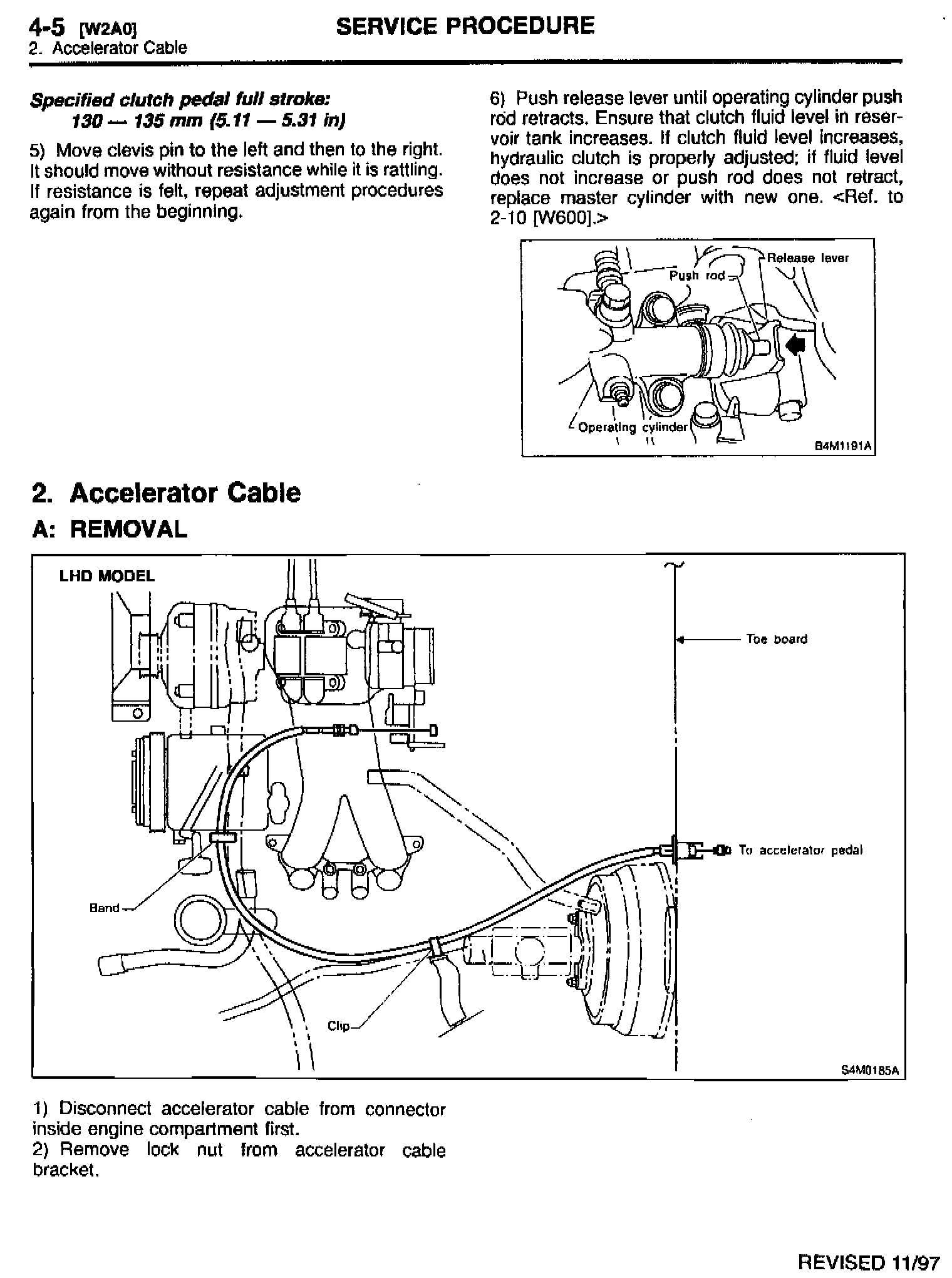

SERVICE PROCEDURE 4-5 [W2A0]
SERVICE PROCEDURE [W2E1] 4-2

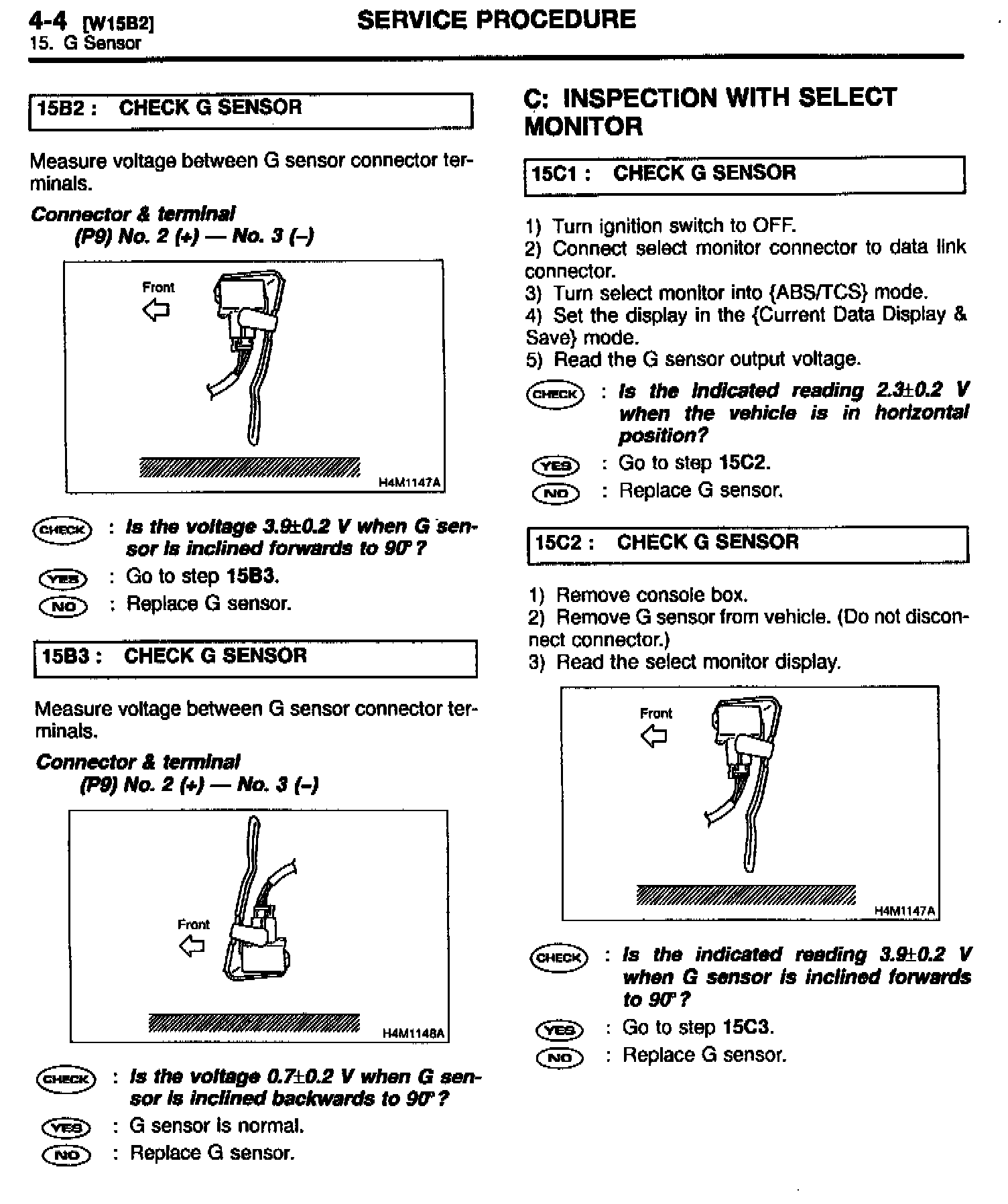

SERVICE PROCEDURE 4-4 [W15B2]

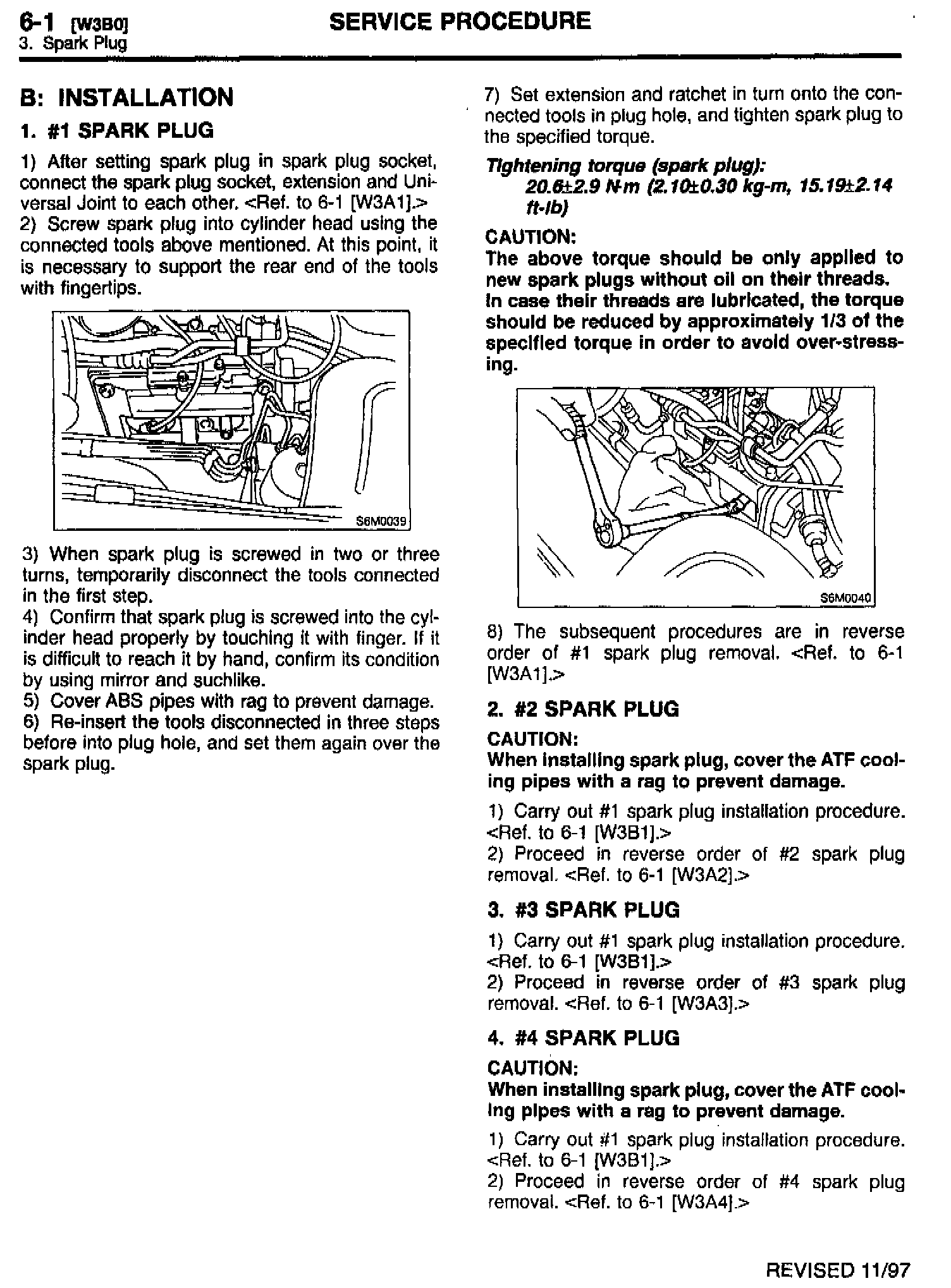

SERVICE PROCEDURE 6-1 [W3B0]

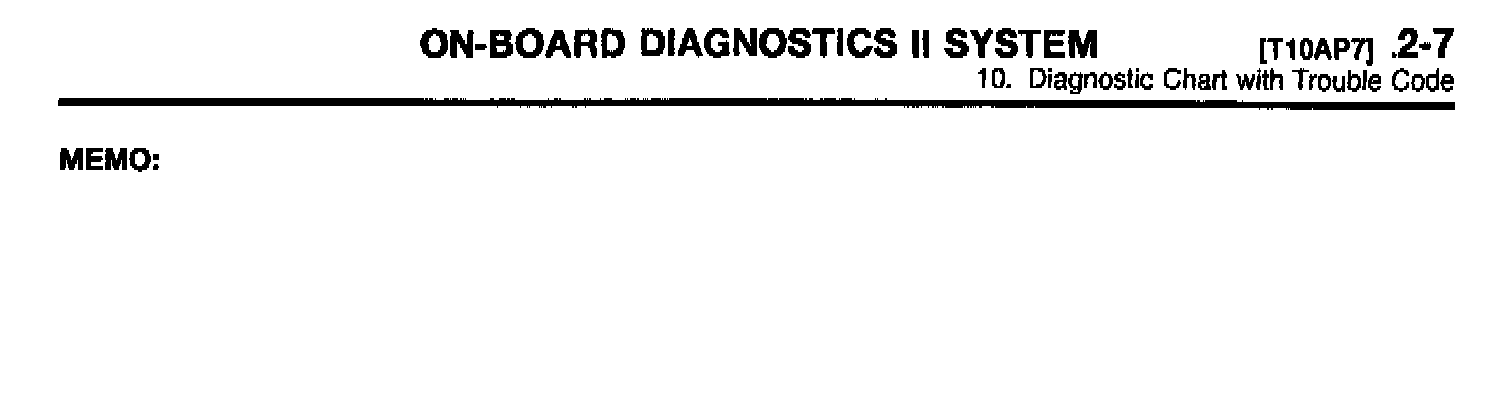

ON-BOARD DIAGNOSTICS II SYSTEM [T10AP7] 2-7

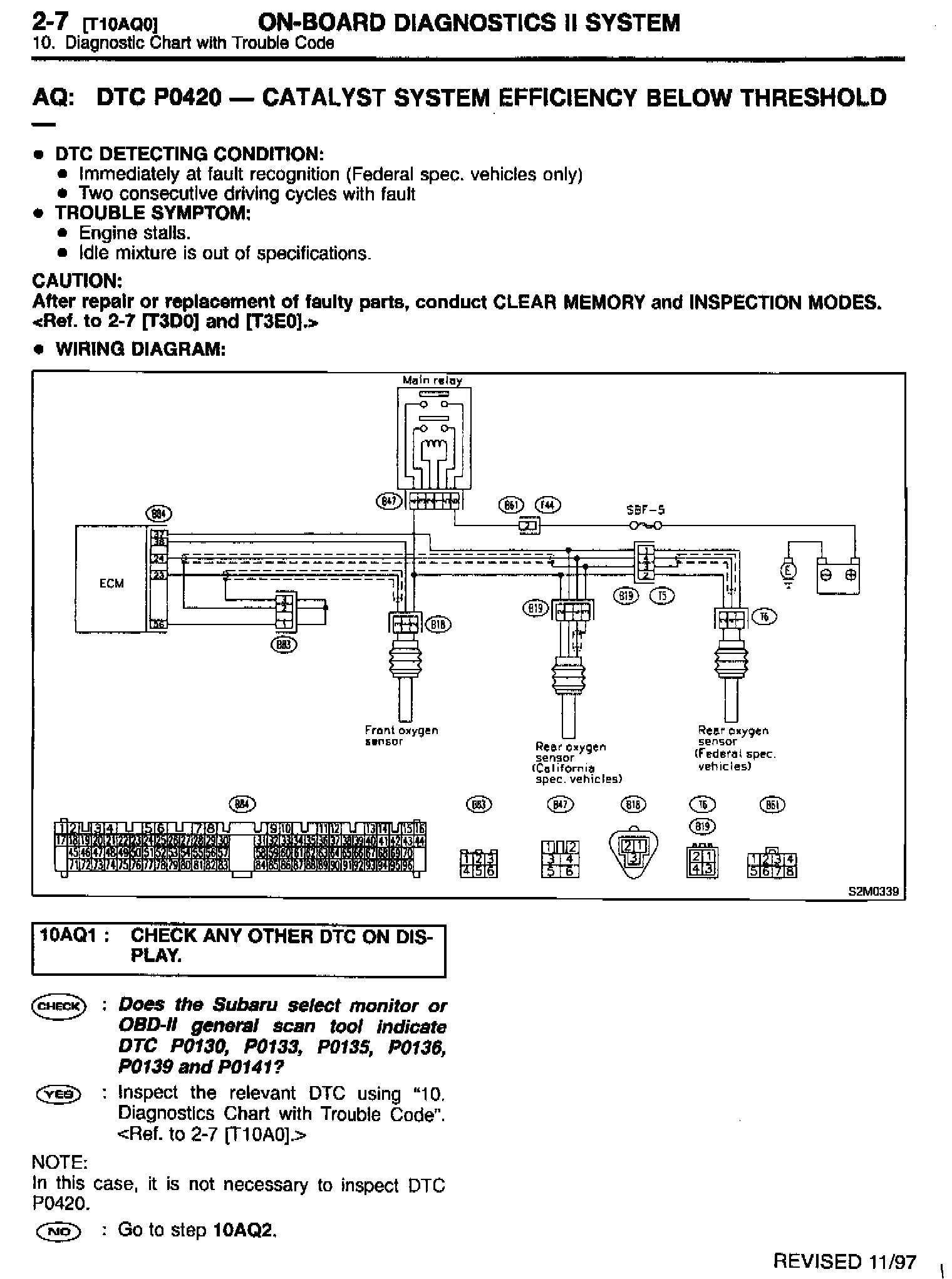

ON-BOARD DIAGNOSTICS II SYSTEM 2-7 [T10AQ0]

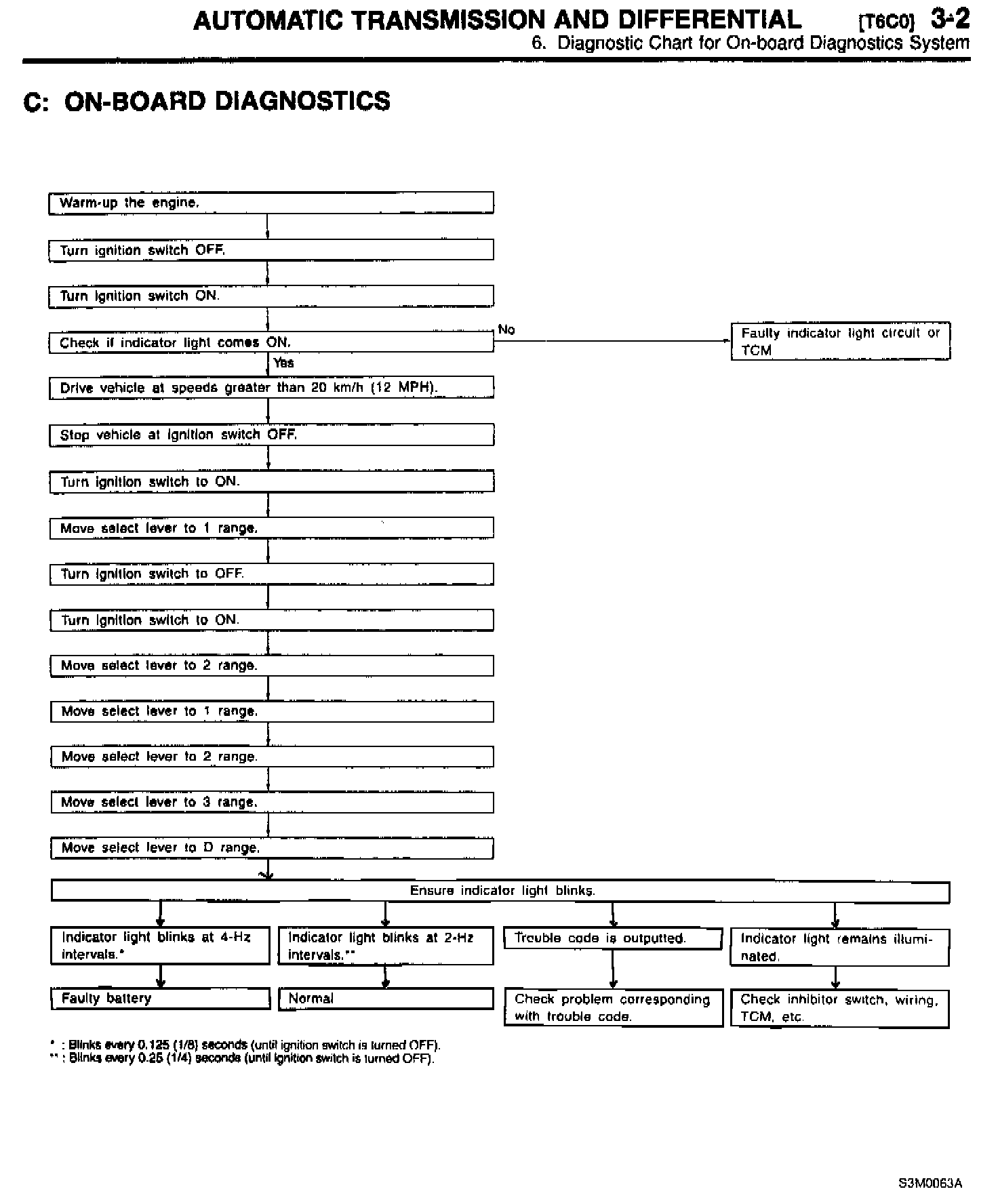

AUTOMATIC TRANSMISSION AND DIFFERENTIAL [T6C0] 3-2
SERVICE PROCEDURE 3-1 [W200]
BODY ELECTRICAL SYSTEM (CRUISE CONTROL) 6-2 [T2D7]

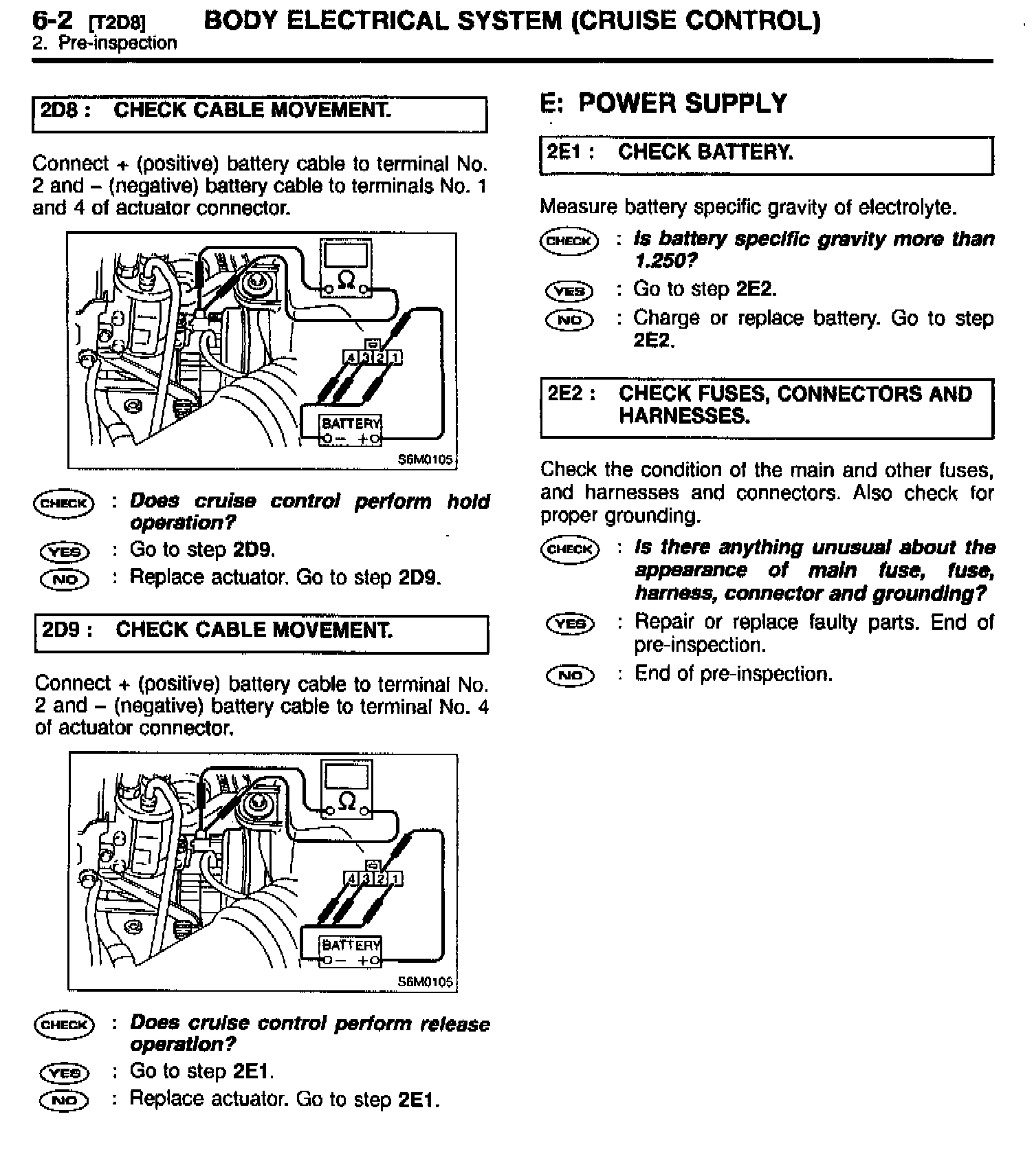

BODY ELECTRICAL SYSTEM (CRUISE CONTROL) 6-2 [T2D8]

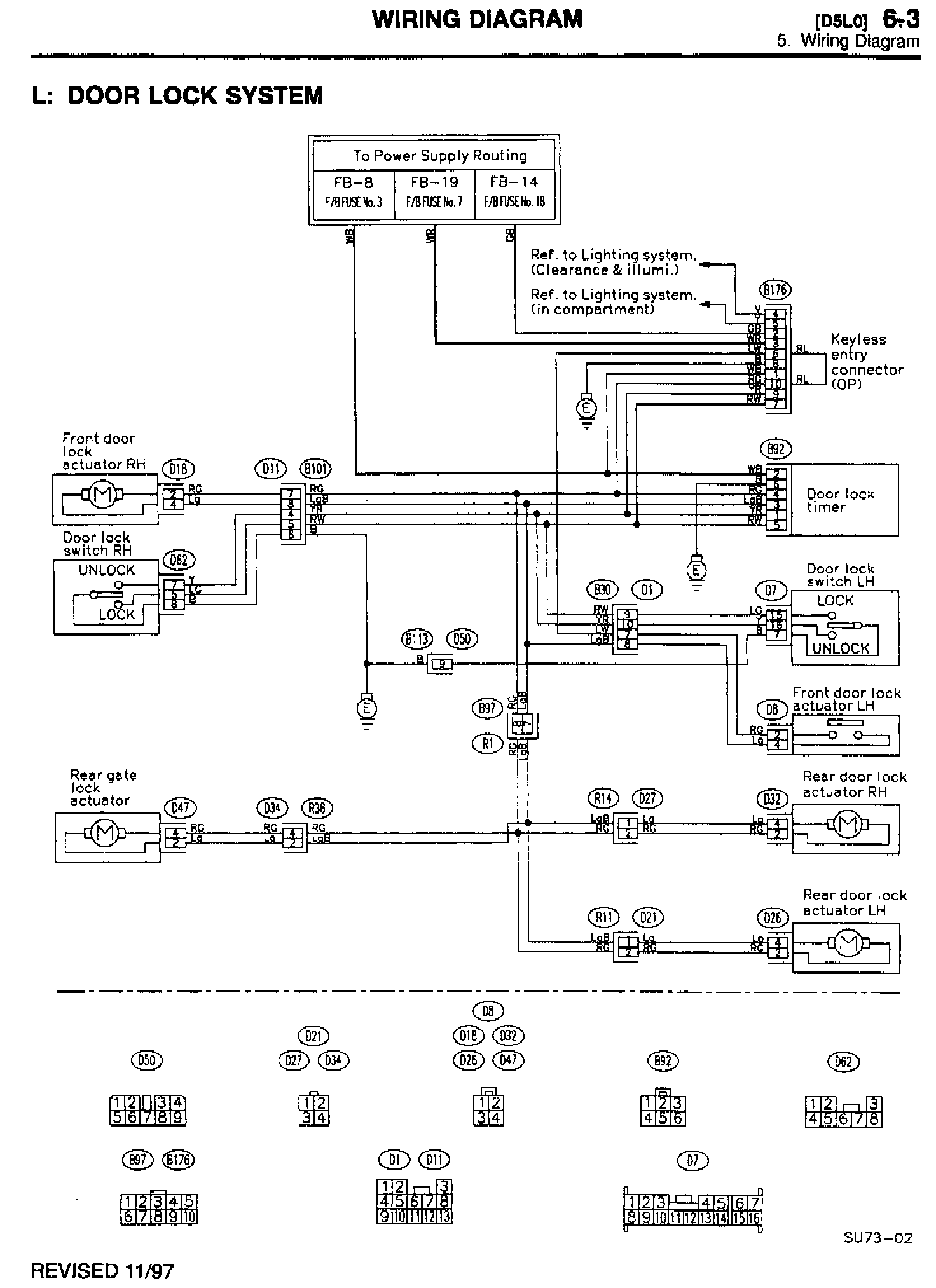

WIRING DIAGRAM 6-3 [D5L0]
WIRING DIAGRAM 6-3 [D5M0]
