Wiper Arm: Service and Repair
Front Wiper and Washer1. Open front hood.
2. Remove cap. Remove the nut which secure wiper arm, and remove wiper arm.
3. Installation is in the reverse order of removal.
Tightening torque:
14 ± 2 N.m (1.4 ± 0.2 kg.m, 10.1 ± 1.4 ft.lb)
Rear Wiper and Washer

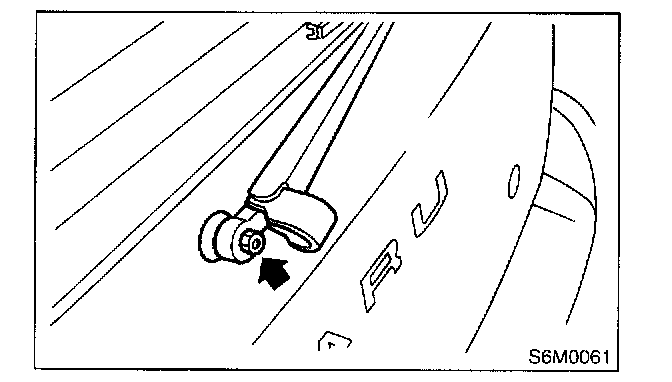

1. Remove head cover.
2. Remove nut and wiper arm.
3. Installation is in the reverse order of removal.
Tightening torque:
5.9 ± 1.5 N.m (0.6 ± 0.15 kg.m, 4.3 ± 1.1 ft.lb)
