Scan Tool Testing and Procedures

Applicable cartridge of select monitor: No. 24082AA010

NOTE:
- For basic handling of the select monitor, refer to its Operation Manual.

LIST OF FUNCTION MODE

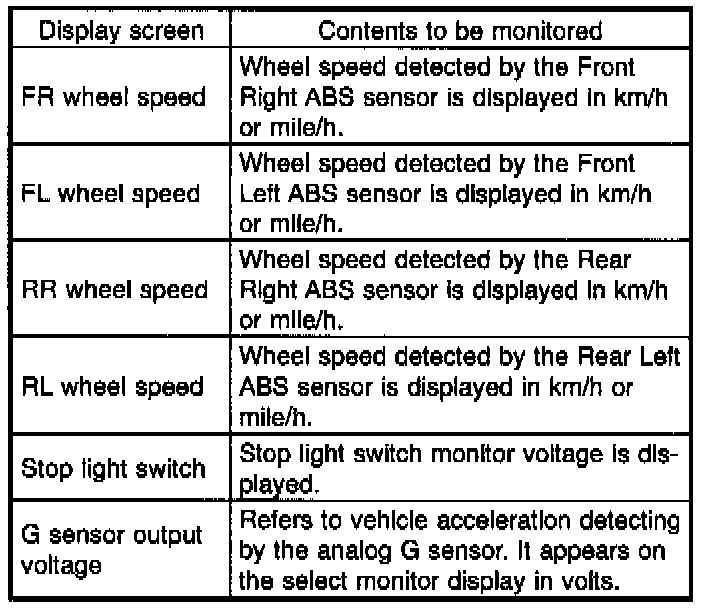

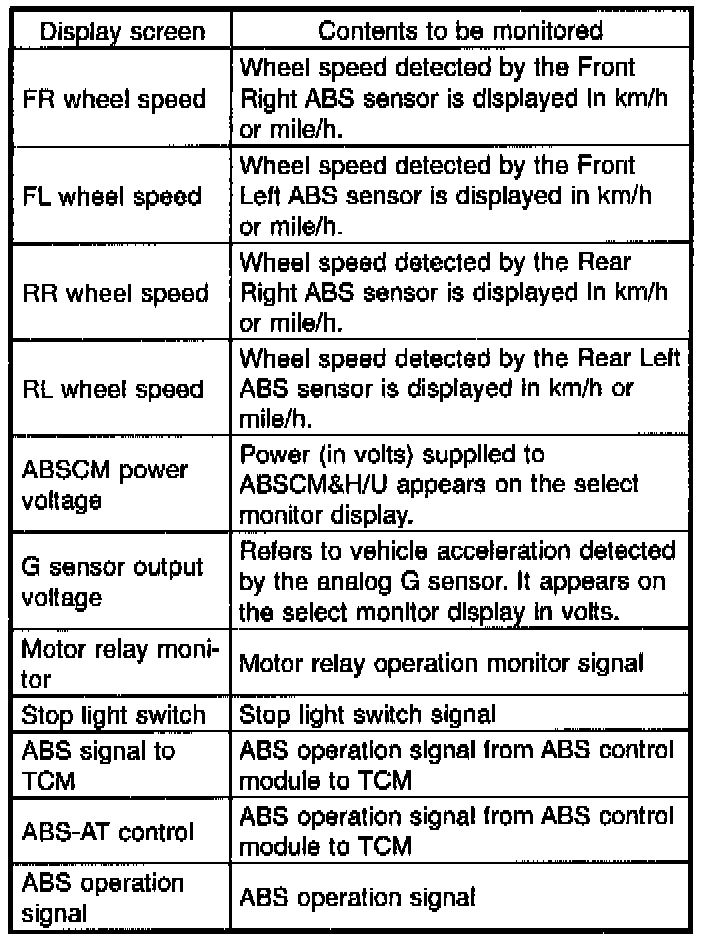

Analog Data Are Displayed

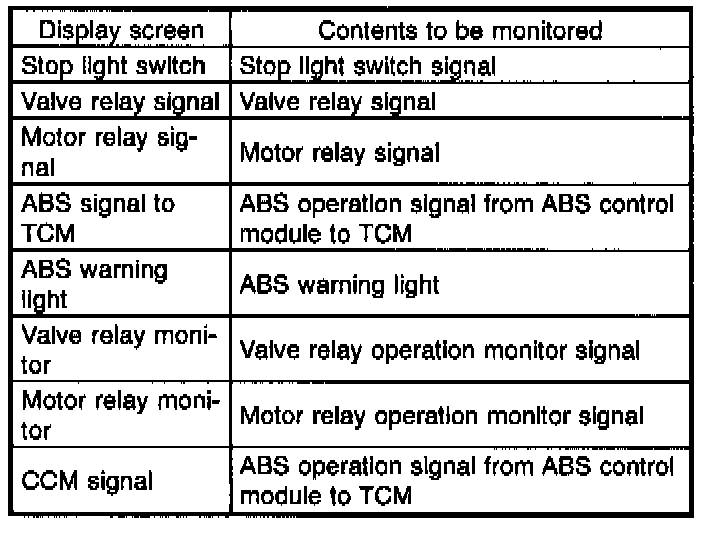

On/Off Data Are Displayed

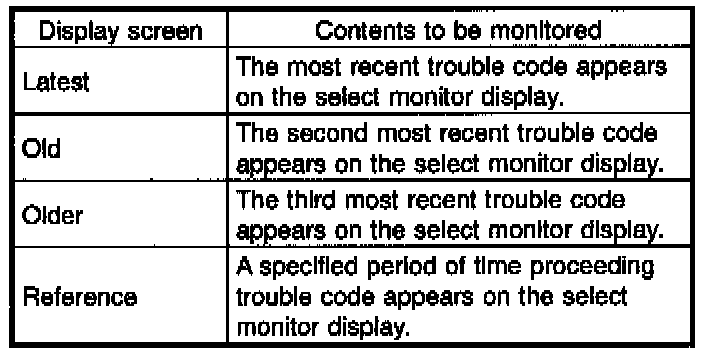

Trouble Codes Are Displayed
A maximum of 3 trouble codes are displayed in order of occurrence.

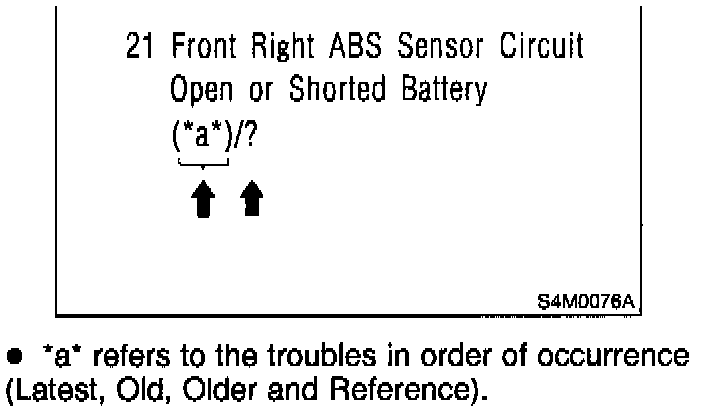

- If a particular trouble code is not properly stored in memory (due to a drop in ABSCM&H/U power supply, etc.) when a problem occurs, the trouble code, followed by a question mark "?", appears on the select monitor display. This shows it may be an unreliable reading.

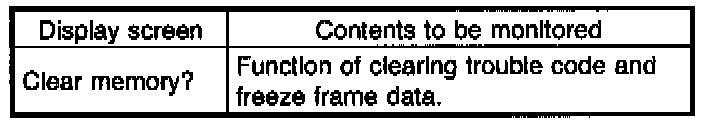

Clear Memory





ABS Sequence Control





Freeze Frame Data

NOTE:
- Data stored at the time of trouble occurrence is shown on display.
- Each time trouble occurs, the latest information is stored in the freeze frame data in memory.
- If freeze frame data is not properly stored in memory (due to a drop in ABSCM power supply, etc.), a trouble code, preceded by a question mark "?", appears on the select monitor display. This shows it may be an unreliable reading.
