Shift Interlock: Testing and Inspection

Basic Diagnostic Chart:

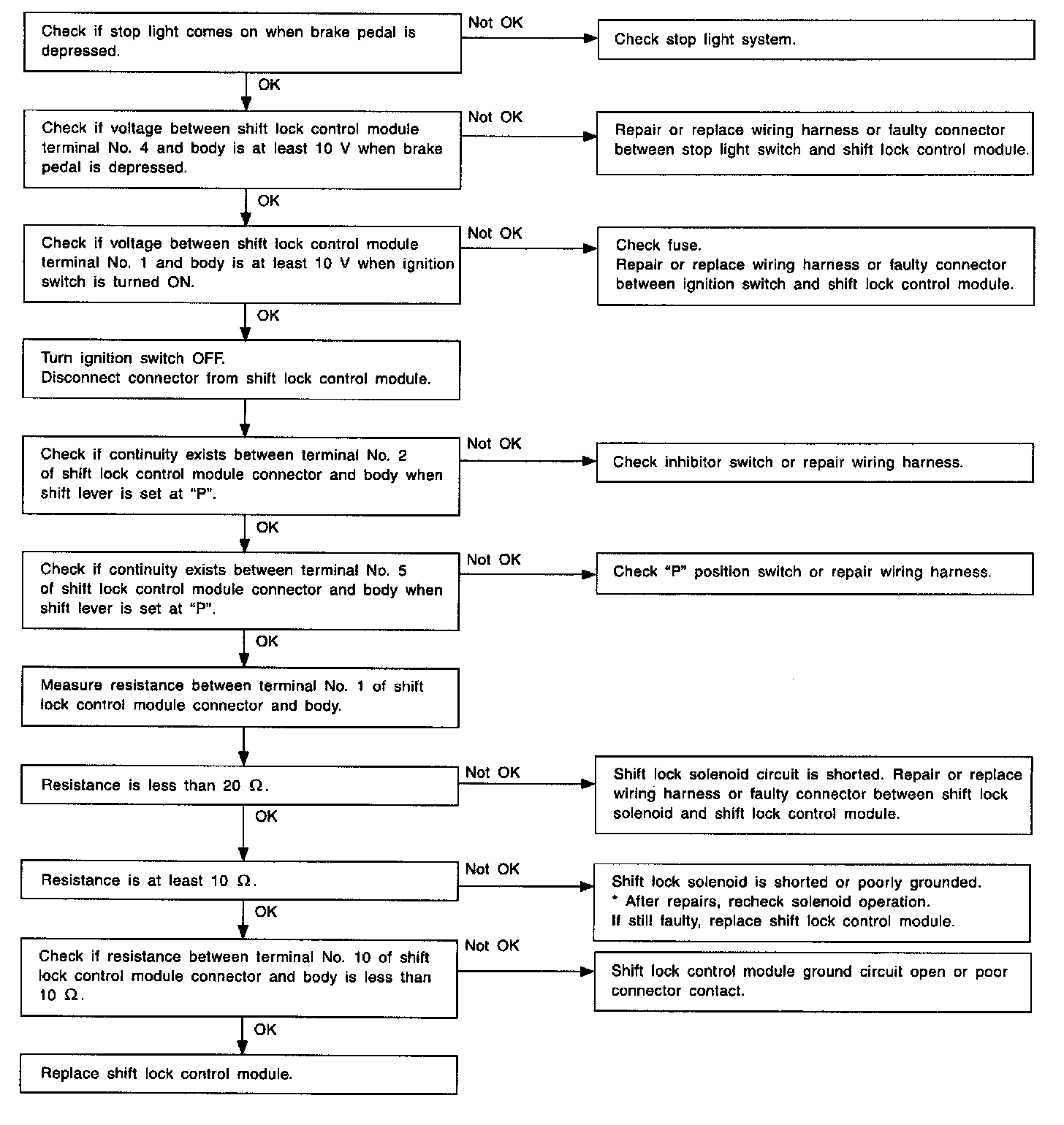

Diagnostics Procedure No.1:

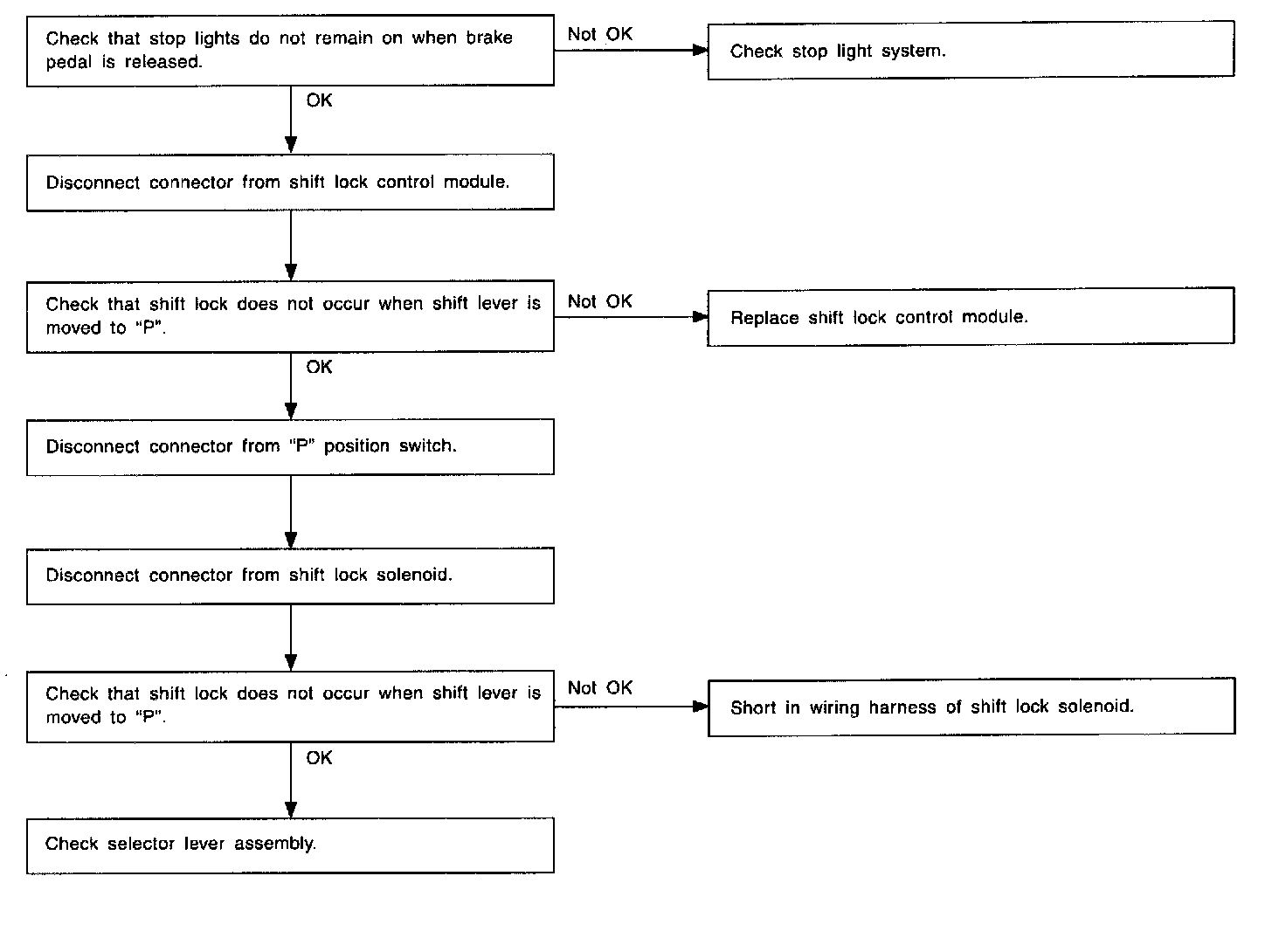

Diagnostics Procedure No.2 (Shift Lock Does Not Release):

Diagnostics Procedure No.3 (Key Interlock Does Not Operate.):

Diagnostics Procedure No.4 (Key Interlock Does Not Operate):
