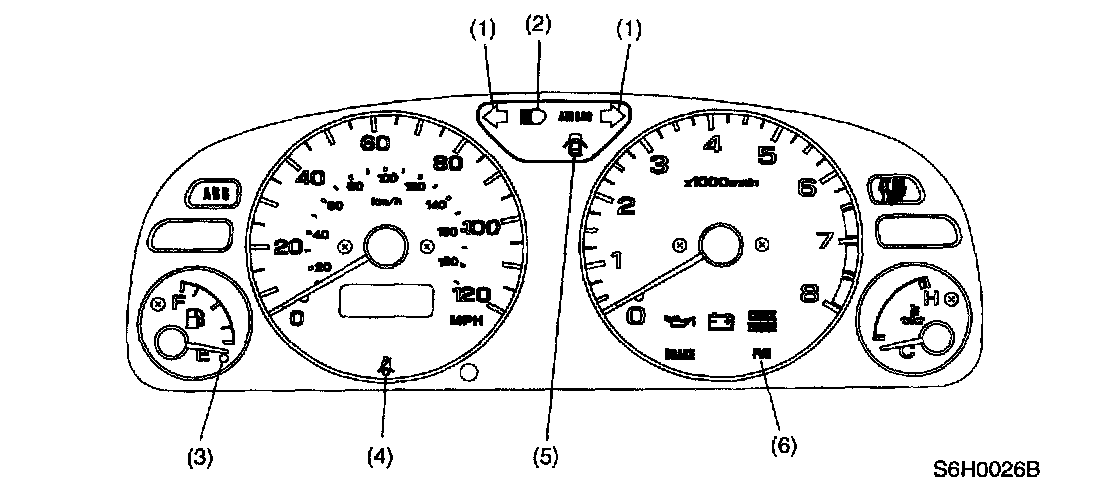

Telltale (Graphic Monitor)

1. Turn signal indicator light
This light blinks (and turn signal light flashes) when the turn signal switch is turned ON.

2. Headlight beam indicator light
This light illuminates when the headlight is in high-beam position.

3. Low fuel warning light
This light illuminates when the fuel amount in fuel tank is lower than 8.0 liters (2.1 US gal, 1.8 Imp gal).

4. Seat belt warning light
This light illuminates about 6 seconds after ignition switch turns ON if the drivers' seat belt is not fastened.

5. Door open warning light
This light illuminates when one or more doors and/or rear gate are not fully closed.

6. FWD indicator light
This light illuminates when the center differential locks (with the fuse installed in the center differential locking circuit).

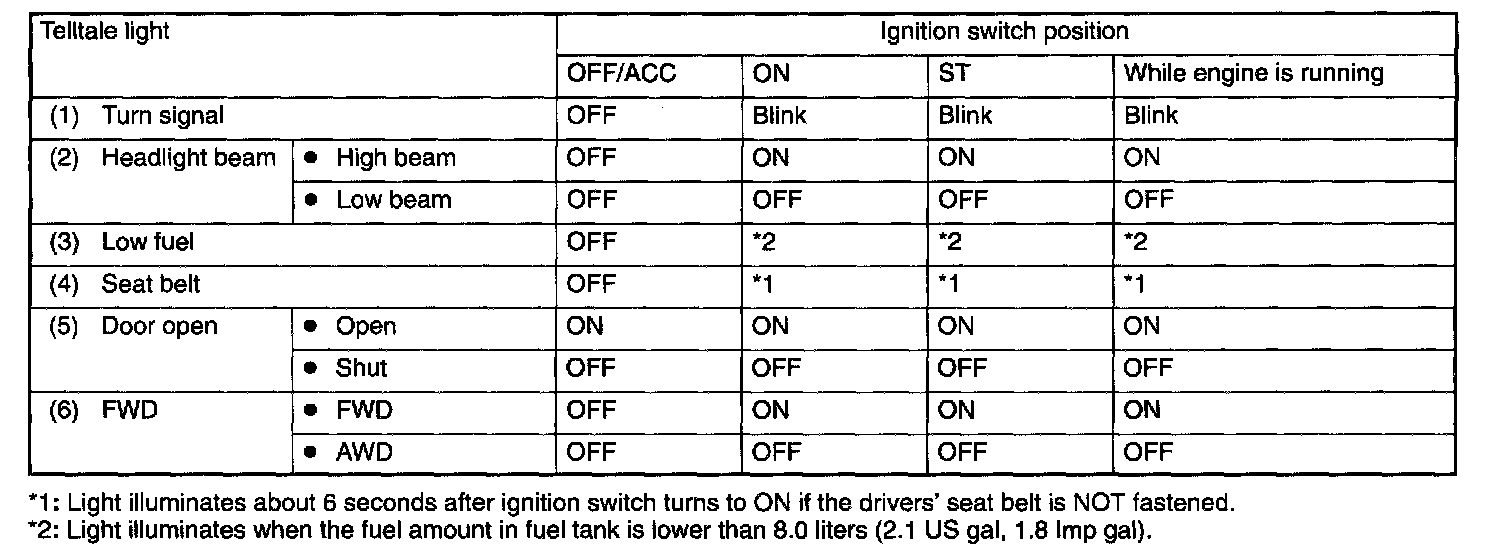

According to ignition switch position, the telltales will come on and/or go off under normal conditions as follows:
