Warning and Indicator Light

1. ABS warning light
This light illuminates when trouble occurs in electrical components of ABS (Anti-lock Brake System).

2. AIR BAG system warning light
This light illuminates when trouble occurs in Airbag system.

3. AT oil temperature warning light
This light illuminates when the ATF temperature exceeds 150 °c (302 °F).

4. Oil pressure warning light
This light illuminates when the engine oil pressure decreases below 14.7 kPa (0.15 kg/sq.cm, 2.1 psi).

5. Brake fluid level warning/parking brake indicator light
This light illuminates when the fluid level in the brake reservoir tank lowers under specified level and/or when parking brake is applied.

6. Charge indicator light
This light illuminates when trouble occurs in charging system during engine is running.

7. CHECK ENGINE warning light
This light illuminates when trouble occurs in MFI (Multiple point Fuel Injection) system.

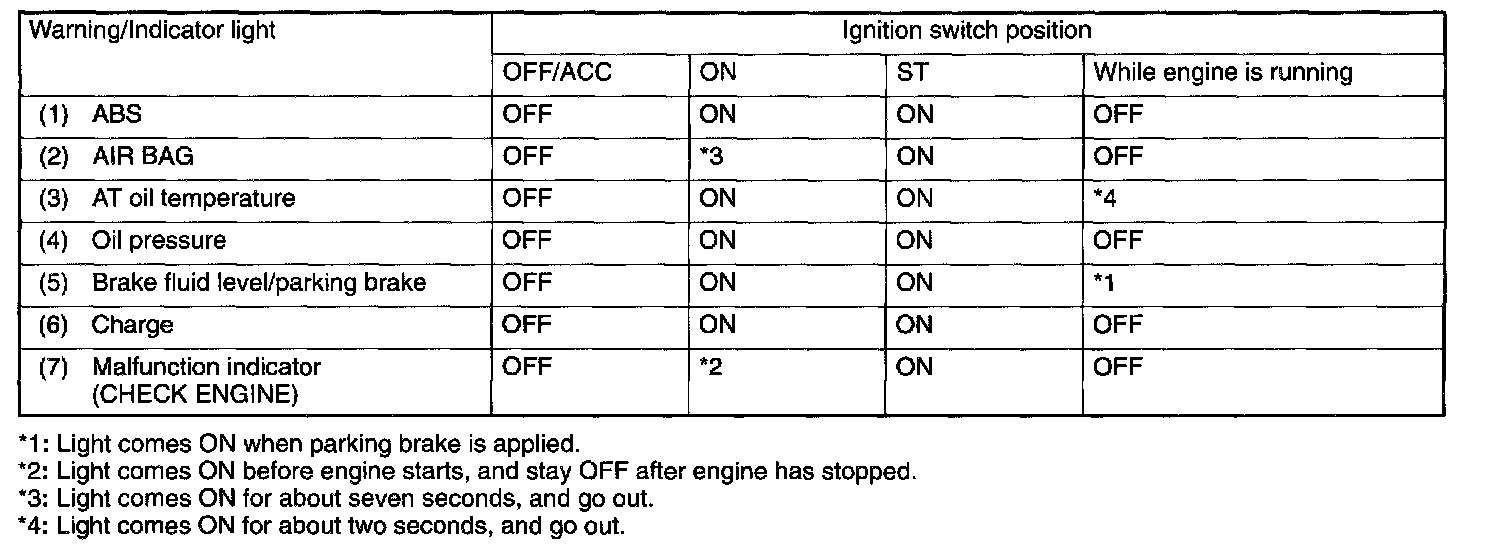

According to ignition switch position the warning and indicator lights will come on and/or go off under normal conditions.
