Pinout Values and Diagnostic Parameters

I/O SIGNAL VOLTAGE

NOTE:
^ The terminal numbers in the Anti-lock Brake System (ABS) control module and hydraulic control unit connector are as shown in the figure.
^ When the connector is removed from the ABS Control Module and Hydraulic Control Unit (ABSCM&H/U), the connector switch closes the circuit between terminal No. 21 and No. 23. The ABS warning light illuminates.

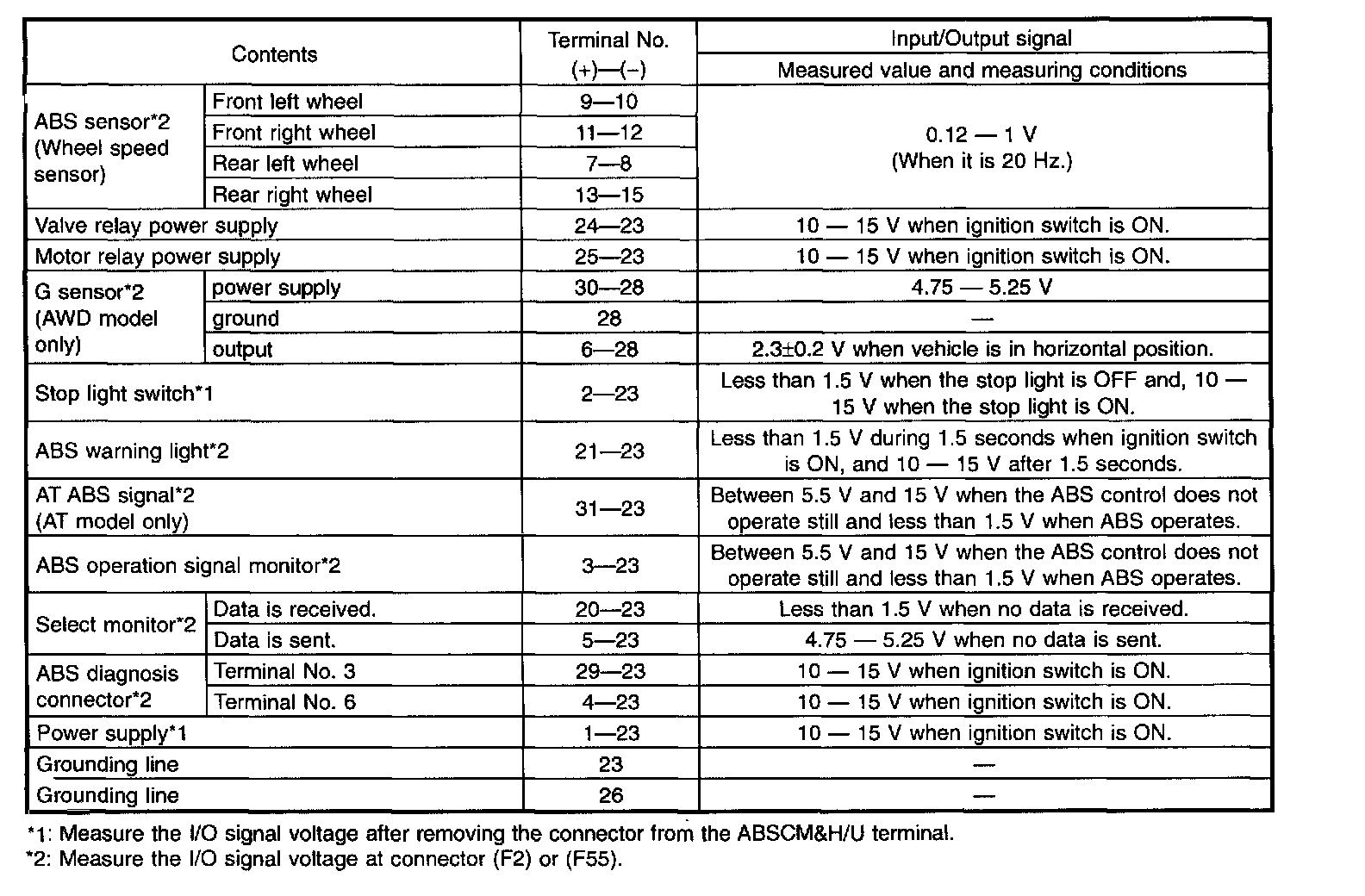

I/O SIGNAL DIAGRAM
