Trouble Code Does Not Appear

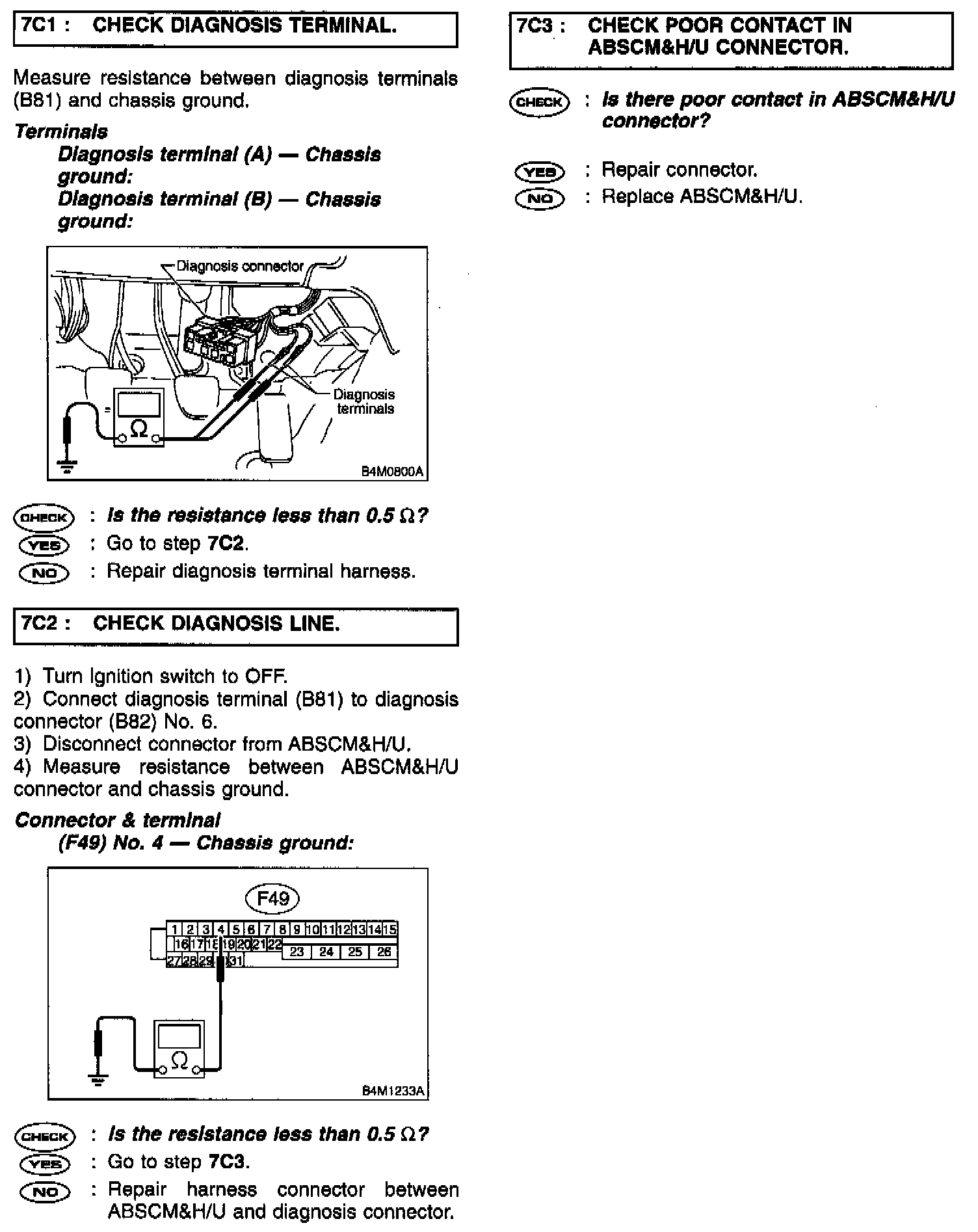

Steps 7C1 - 7C3:
DIAGNOSIS:
^ Diagnosis circuit is open.
TROUBLE SYMPTOM:
^ The ABS warning light turns on or off normally but the start code cannot be read out in the diagnostic mode.
WIRING DIAGRAM
DIAGNOSIS:
^ Diagnosis circuit is open.
TROUBLE SYMPTOM:
^ The ABS warning light turns on or off normally but the start code cannot be read out in the diagnostic mode.
WIRING DIAGRAM
