Combination Meter

Combination Meter

WARNING AND INDICATOR LIGHT




1. ABS warning light
This light illuminates when trouble occurs in electrical components of ABS (Anti-lock Brake System).

2. AIR BAG system warning light
This light illuminates when trouble occurs in Airbag system.

3. AT oil temperature warning light
This light illuminates when the ATF temperature exceeds 150 °C (302 °F).

4. Oil pressure warning light
This light illuminates when the engine oil pressure decreases below 14.7 kPa (0.15 kgf/sq.cm, 2.1 psi).

5. Brake fluid level warning/parking brake indicator light
This light illuminates when the fluid level in the brake reservoir tank lowers under specified level and/or when parking brake is applied.

6. Charge indicator light
This light illuminates when trouble occurs in charging system during engine is running.

7. CHECK ENGINE warning light
This light illuminates when trouble occurs in MFI (Multiple point Fuel Injection) system.

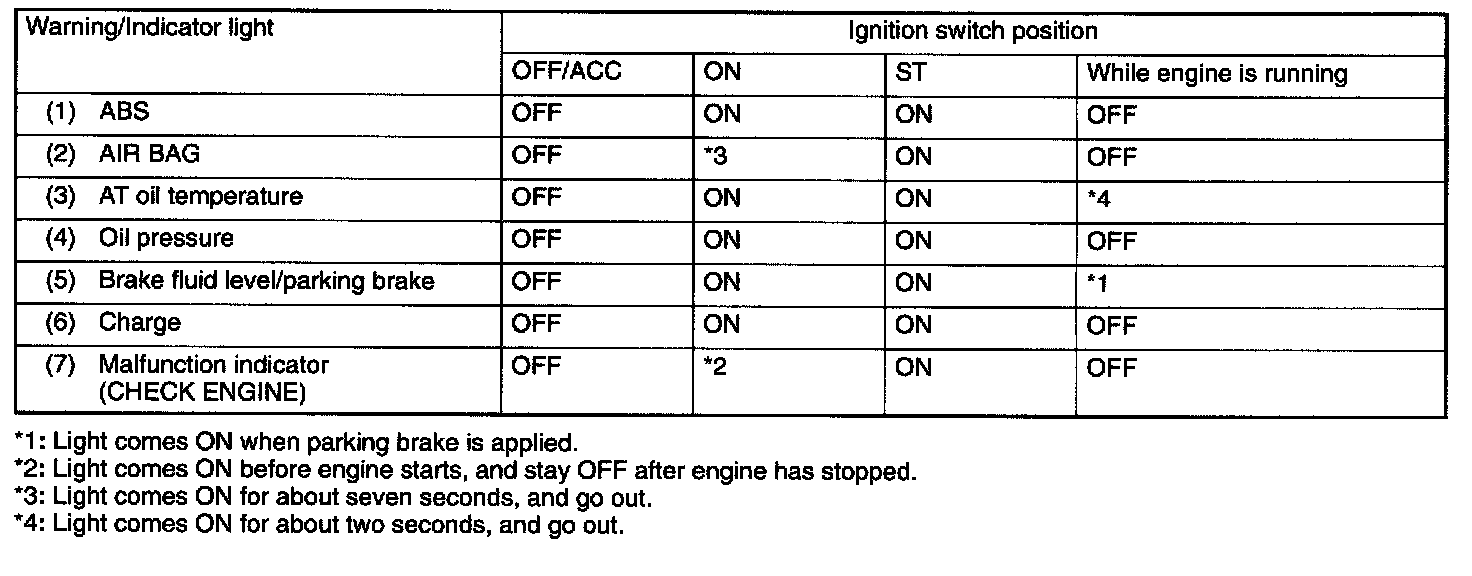

According to ignition switch position, the warning and indicator lights will come on and/or go off under normal conditions as shown.

TELLTALE (GRAPHIC MONITOR)




1. Turn signal indicator light
This light blinks (and turn signal light flashes) when the turn signal switch is turned ON.

2. Headlight beam indicator light
This light illuminates when the headlight is in high-beam position.

3. Low fuel warning light
This light illuminates when the fuel amount in fuel tank is lower than 8.0 liters (2.1 US gal, 1.8 Imp gal).

4. Seat belt warning light
This light illuminates about 6 seconds after ignition switch turns ON if the drivers' seat belt is not fastened.

5. Door open warning light
This light illuminates when one or more doors and/or rear gate are not fully closed.

6. FWD indicator light
This light illuminates when the center differential locks (with the fuse installed in the center differential locking circuit).

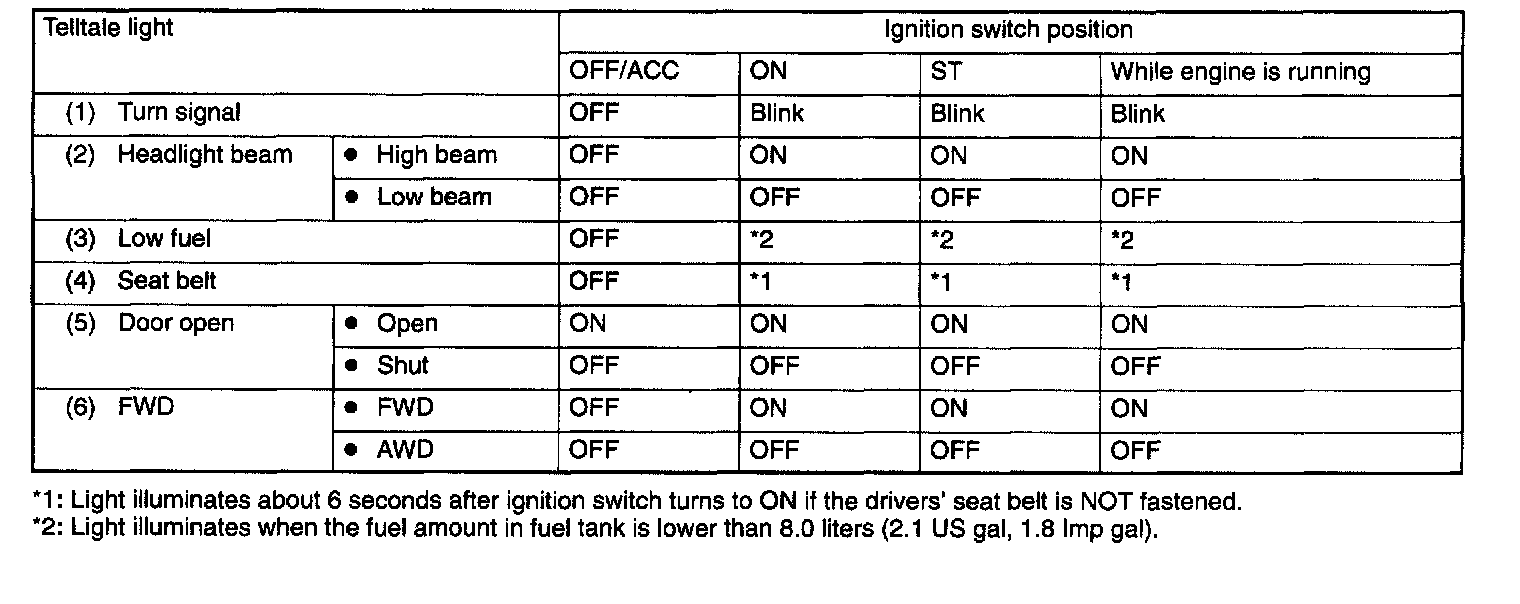

According to ignition switch position, the telltales will come on and/or go off under normal conditions as shown.
