RHD

DTC P0451 - EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR RANGE / PERFORMANCE PROBLEM

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer To How To Clear Diagnostic Trouble Codes.





WIRING DIAGRAM

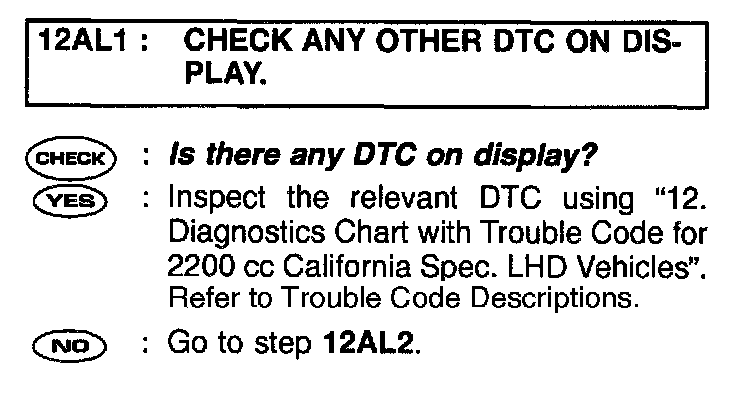

Step 12AL1:

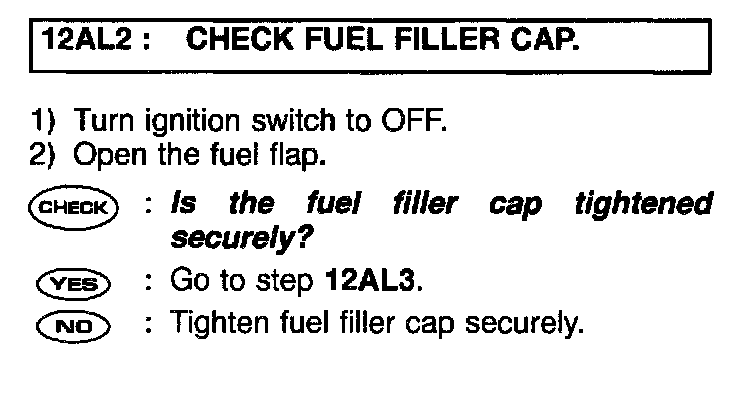

Step 12AL2:

Step 12AL3:

PROCEDURES
