Home >> Subaru >> 1999 >> Legacy L Sedan AWD F4-2.2L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1703 >> Except California >> RHD

RHD

DTC P1703 - LOW CLUTCH TIMING CONTROL SOLENOID VALVE CIRCUIT MALFUNCTION

NOTE: Check low clutch timing control solenoid valve circuit.

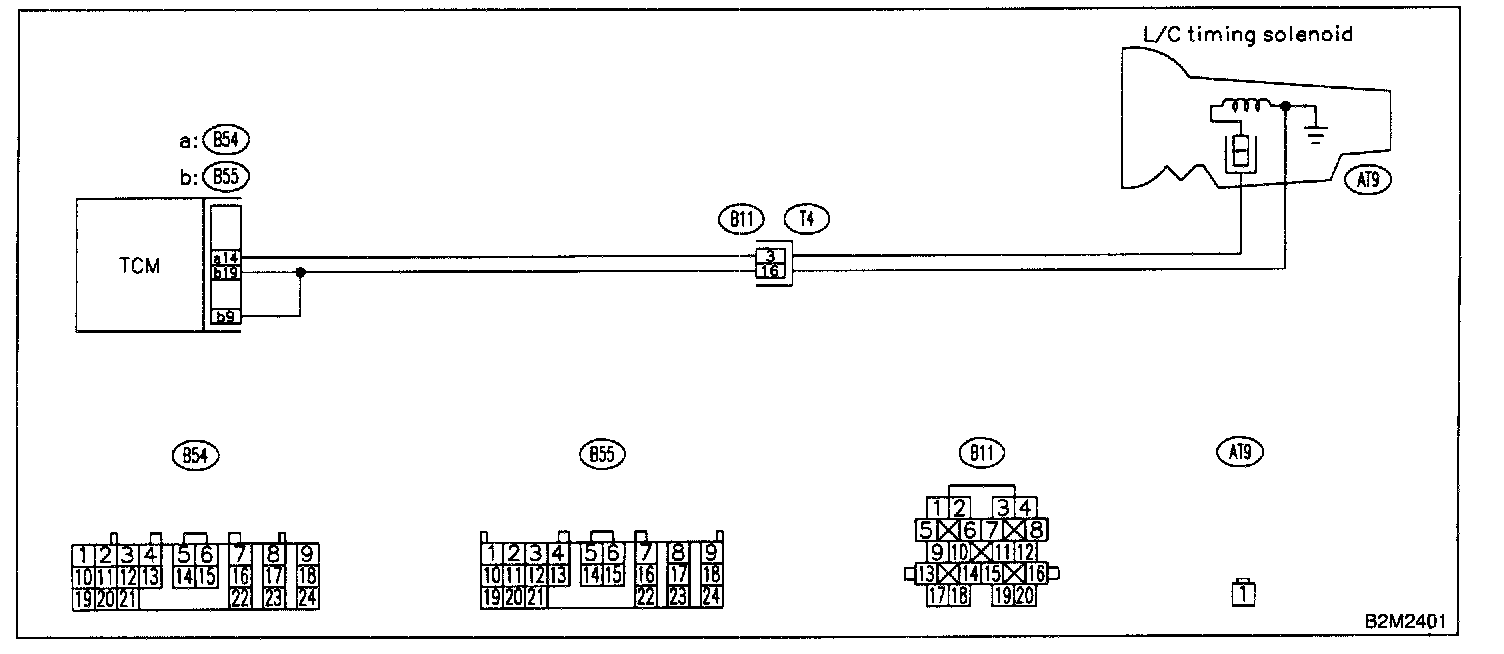

WIRING DIAGRAM
