Rear Seat Belt
REMOVAL AND INSTALLATIONWARNING: Replace rear seat belt worn by occupants of a vehicle that has been in a serious accident. The entire assembly should be replaced even if damage is not obvious
1. OUTER BELT
1. Remove rear cushion and side pad.
2. Remove rear backrest.
3. Remove rear quarter upper trim and rear quarter lower trim.
4. Remove anchor bolts.
5. Remove bolt and nut and then detach outer belt assembly.
6. Installation is in the reverse order of removal.
NOTE: Ensure that seat belt is properly reeled on and off after installation of ELR.
CAUTION:
- Be extremely careful not to confuse center seat anchor plate with outer seat anchor plate during installation.
- Ensure that seat belts are free from twisting after installation.
- Ensure that tongues, buckles and belts are properly placed on seat.

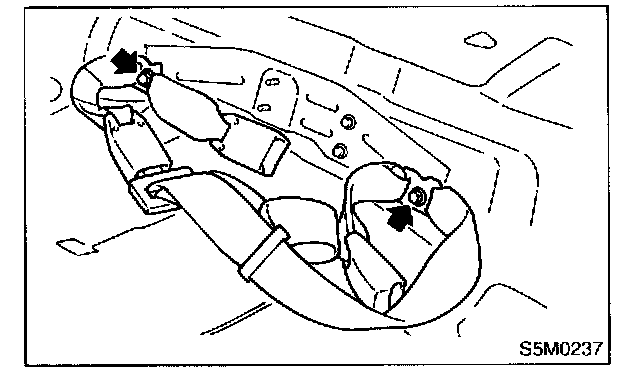

2. INNER BELT AND CENTER BELT
1. Remove rear cushion.
2. Remove bolts and then remove inner belt and center belt.
3. Installation is in the reverse order of removal.
