Pinout Values and Diagnostic Parameters





Connector Views





Description Part 1 of 2





Description Part 2 of 2

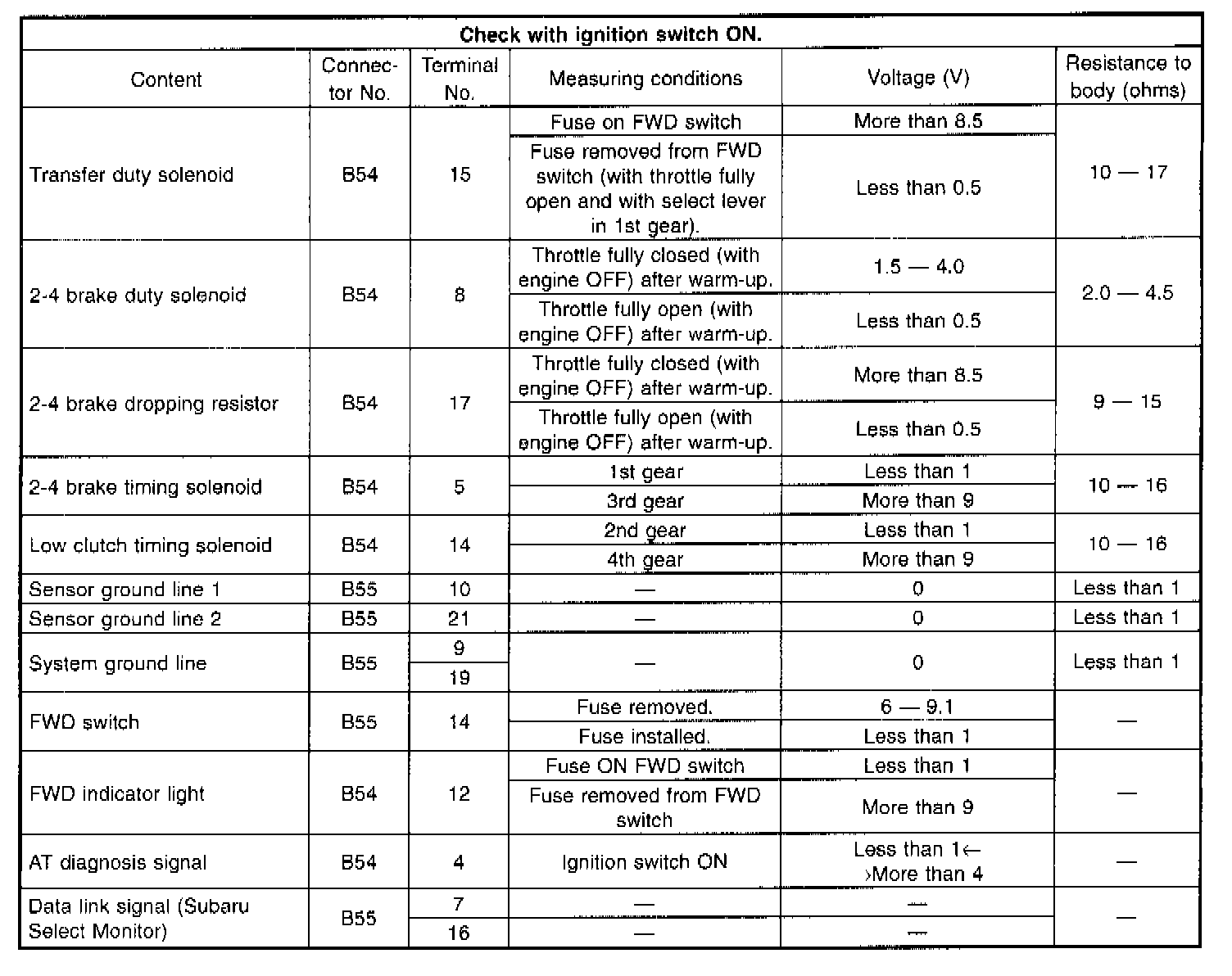

Transmission Control Module (TCM) I/0 Signal
