Trunk / Liftgate: Adjustments
1. TRUNK LID1. To adjust left-right lid positioning, loosen bolts which hold trunk lid to hinges.

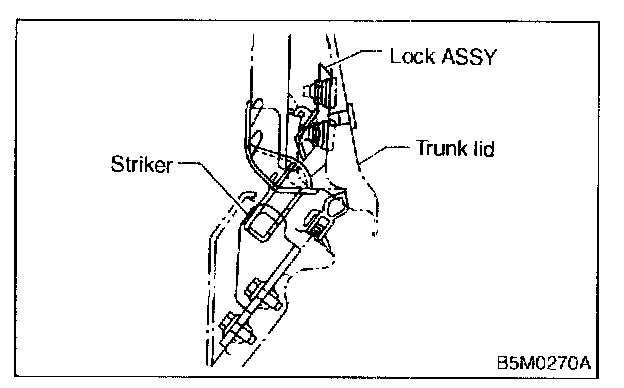

2. To adjust up-down lid alignment, place washer(s) between trunk lid and hinges or move trunk lock assembly up or down.
1. To adjust left-right lid positioning, loosen bolts which hold trunk lid to hinges.
2. To adjust up-down lid alignment, place washer(s) between trunk lid and hinges or move trunk lock assembly up or down.
