Removal and Installation

1. Move steering wheel to most down position.

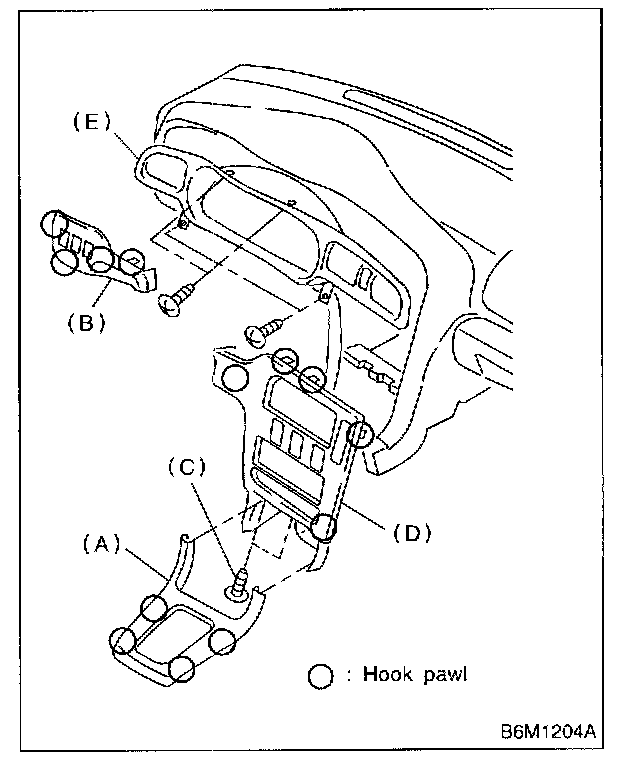

2. Remove front cover (A) and switch panel (B) while disconnecting connector.
3. Remove two screws (C) and then remove center panel (D) while disconnecting connector.

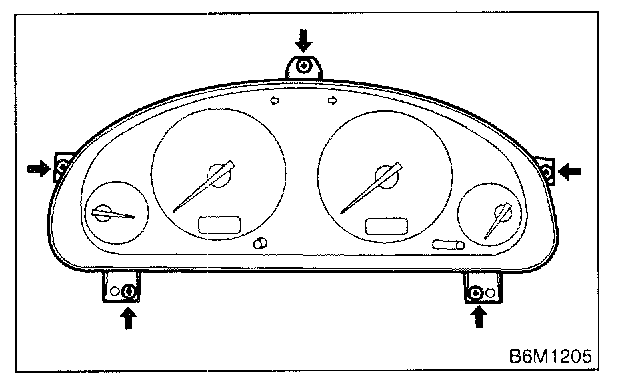

4. Remove screws which secure visor and remove visor (E) while disconnecting connector.




5. Remove screws which secure combination meter and pull combination meter out.
6. Disconnect connector from top of combination meter.
7. Installation is in the reverse order of removal.

CAUTION: When installing combination meter, be sure to connect connectors to top of combination meter.
