Condenser HVAC: Service and Repair
Condenser1. Disconnect battery negative terminal.

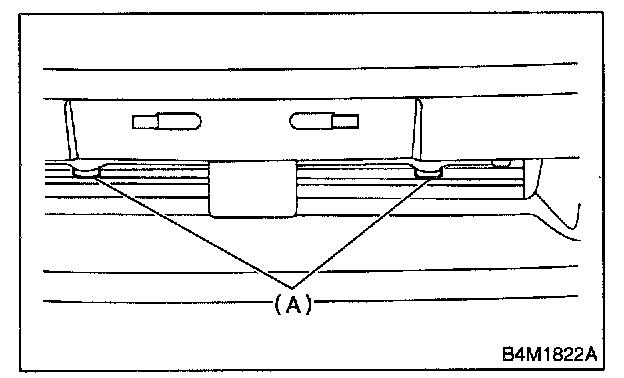

2. Remove duct (A).
3. Discharge refrigerant using refrigerant recovery system.

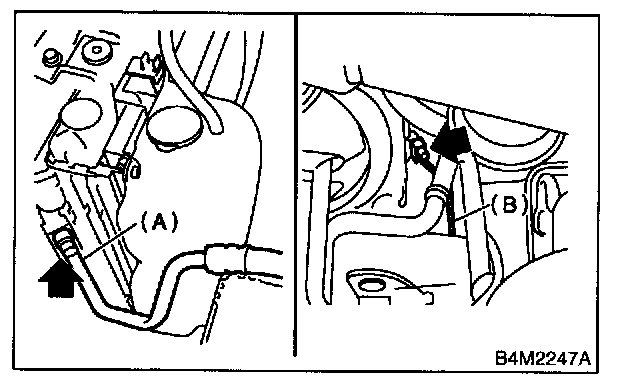

4. Disconnect high-pressure hose (A) and high-pressure pipe (B) from condenser.
5. Remove the radiator bracket (A).

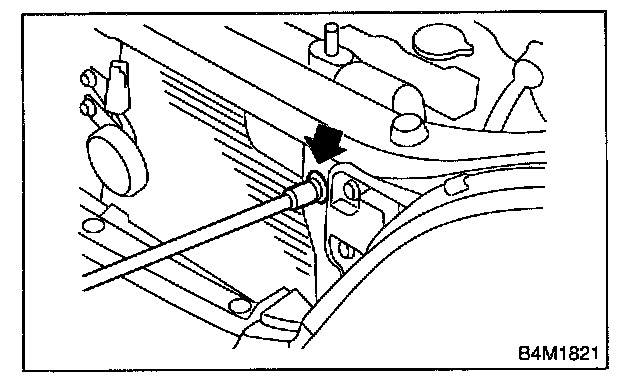

6. Remove the two bolts which secure condenser. While lifting condenser, remove it through space between radiator and radiator panel.
7. The condenser should be installed in the reverse order in which it was removed. When installing the condenser, pay attention to the following:
CAUTION: Before connecting the pipe, be sure to apply oil to the periphery of O-ring.
NOTE: After installing condenser, ensure that guide (A) on lower side of condenser is inserted into hole in radiator panel. Tighten attaching bolts.
8. Charge refrigerant.
