Theft Prevention

The Theft Prevention (T.P.) label is stuck or V.I.N. is inscribed on the main line installed parts shown in the figure. Additionally, the "R DOT" label is stuck or "R DOT" is inscribed on the main spare parts shown in the figure.

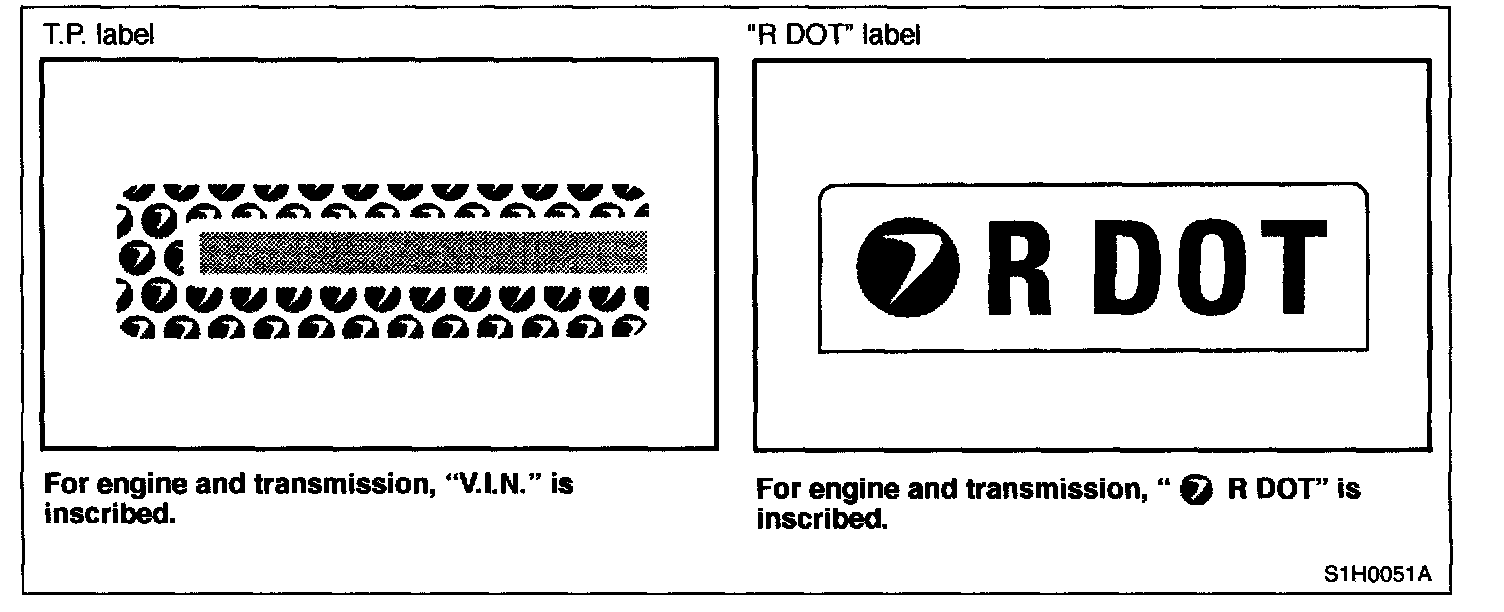

A: T.P. LABEL AND "R DOT" LABEL

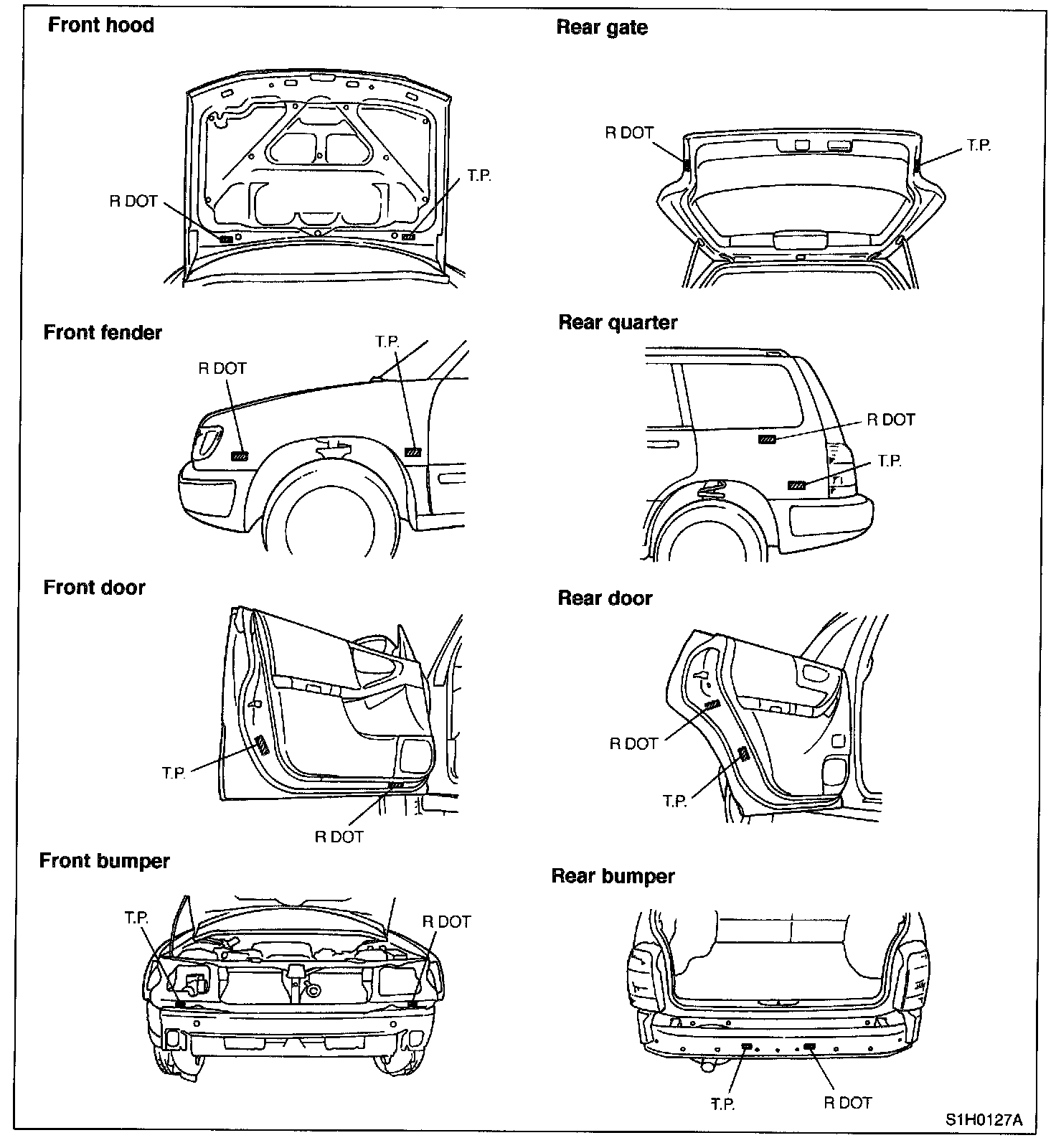

B: LOCATION

Inscription:

1. INSCRIPTION

Label:

2. LABEL
