Hood: Service and Repair

1. Open front hood, and remove washer hose.

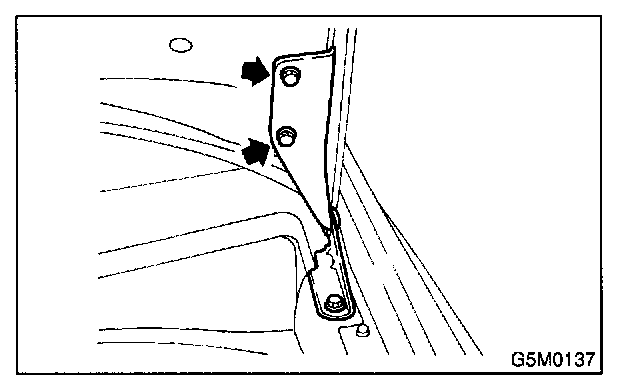

2. Remove attaching bolts.
3. Detach front hood from hinges.
4. Install in the reverse order of removal.

CAUTION: Adjust buffer assembly on each end so that main lock is applied securely when hood is released from a height of approx. 20 mm (0.79 in).






NOTE: Align the center of striker with lock during installation. Make sure safety lever is properly caught by the striker under the hood's own weight.
