Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

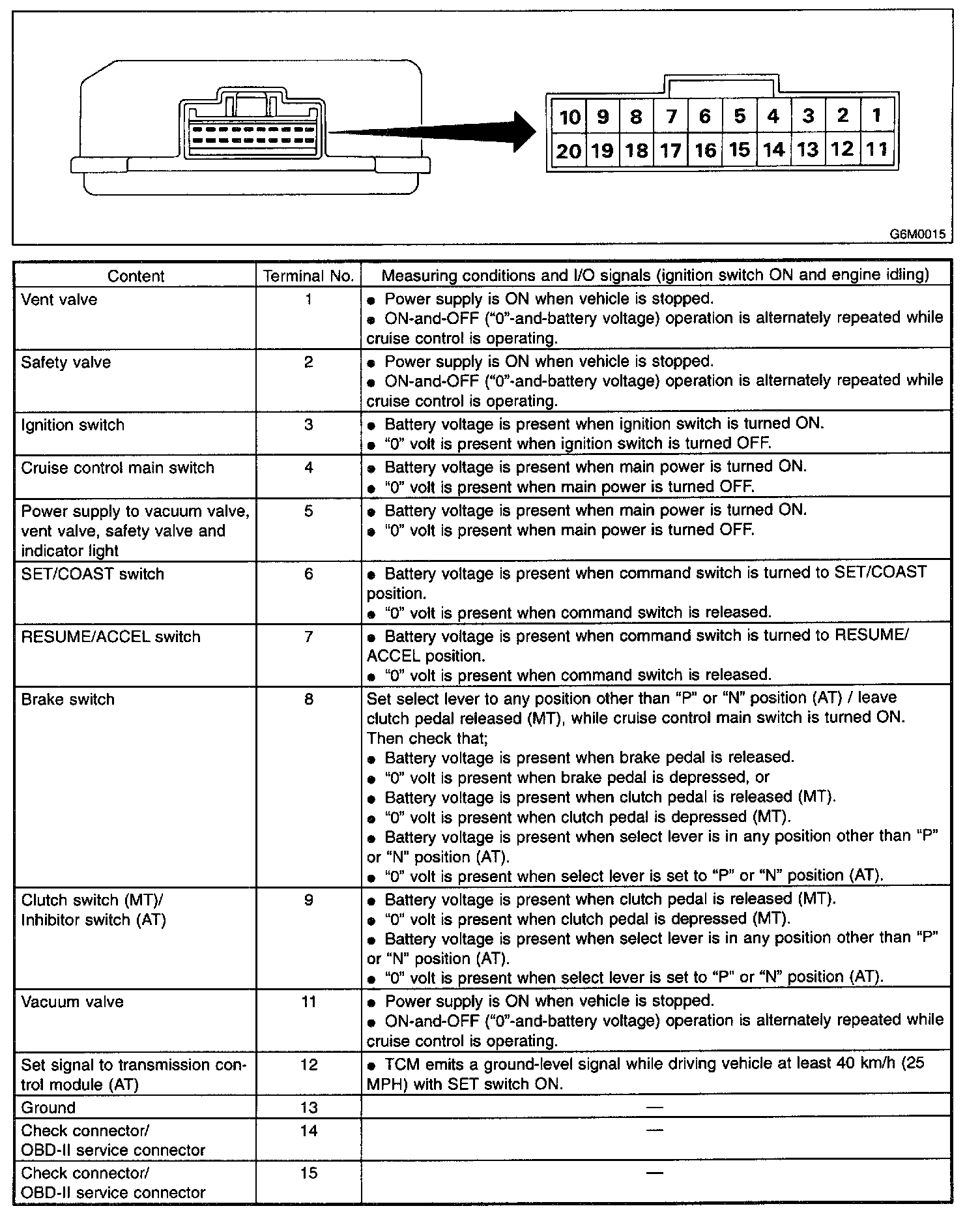

Control Module I/O Signal Connector And Terminal No 1 - 15:
Terminal No 18 - 20:
