Outside Temperature Display

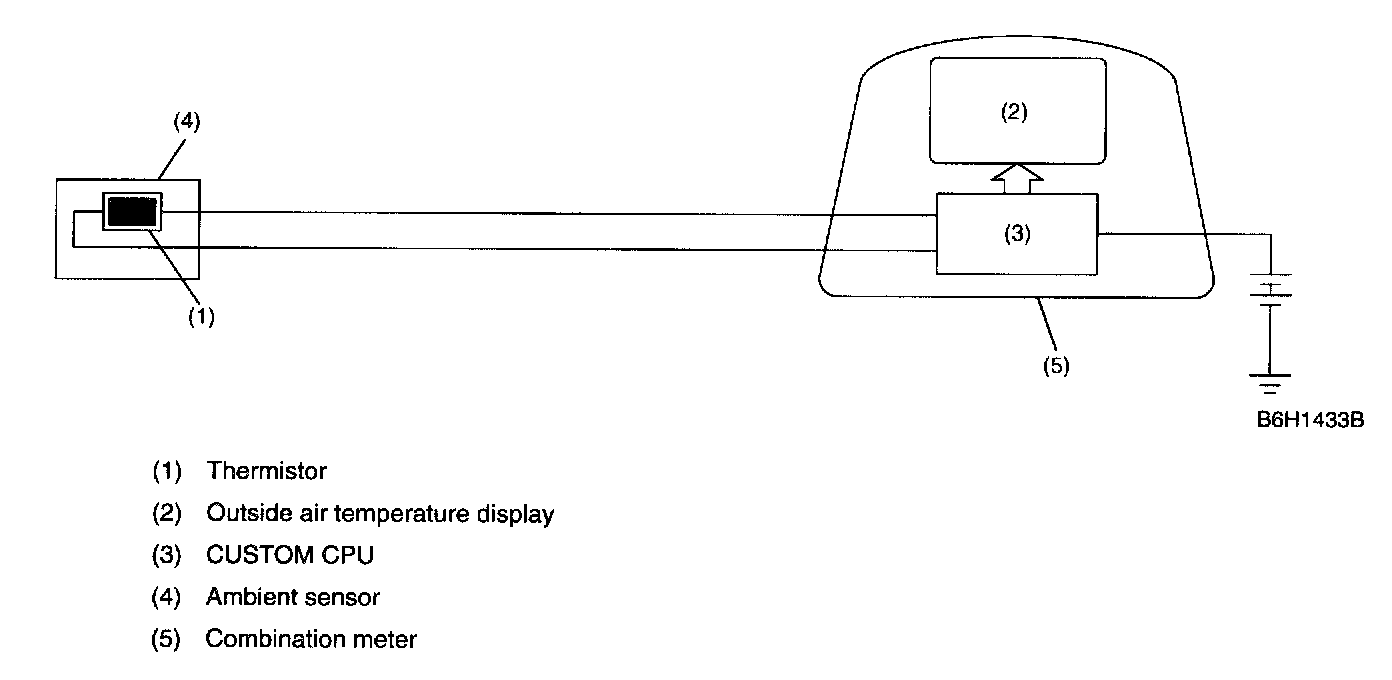

Outside Temperature Display System Schematic:

Outside Temperature Display System - Circuit:
