Home >> Subaru >> 2001 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

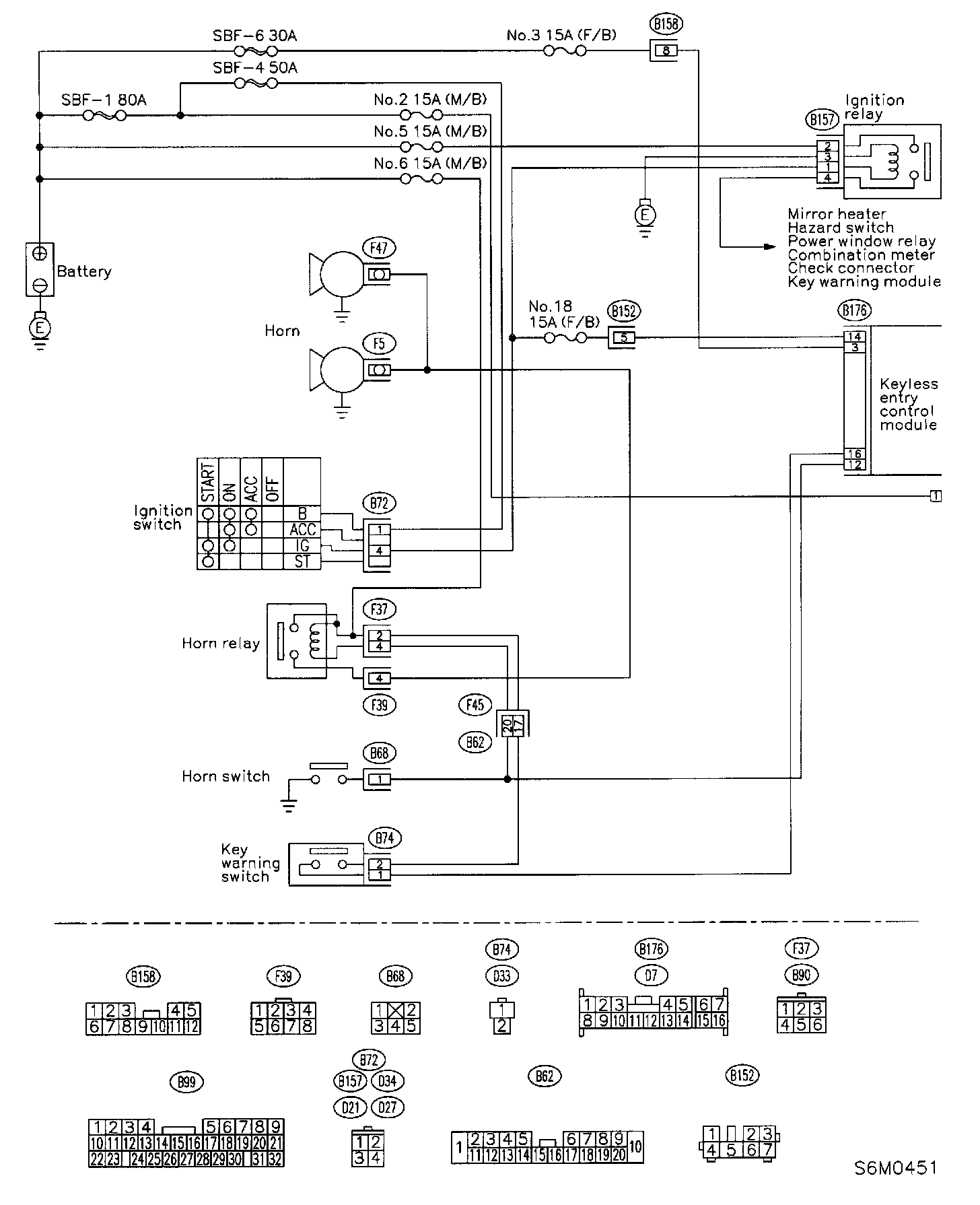

Keyless Entry System Schematic Part 1:

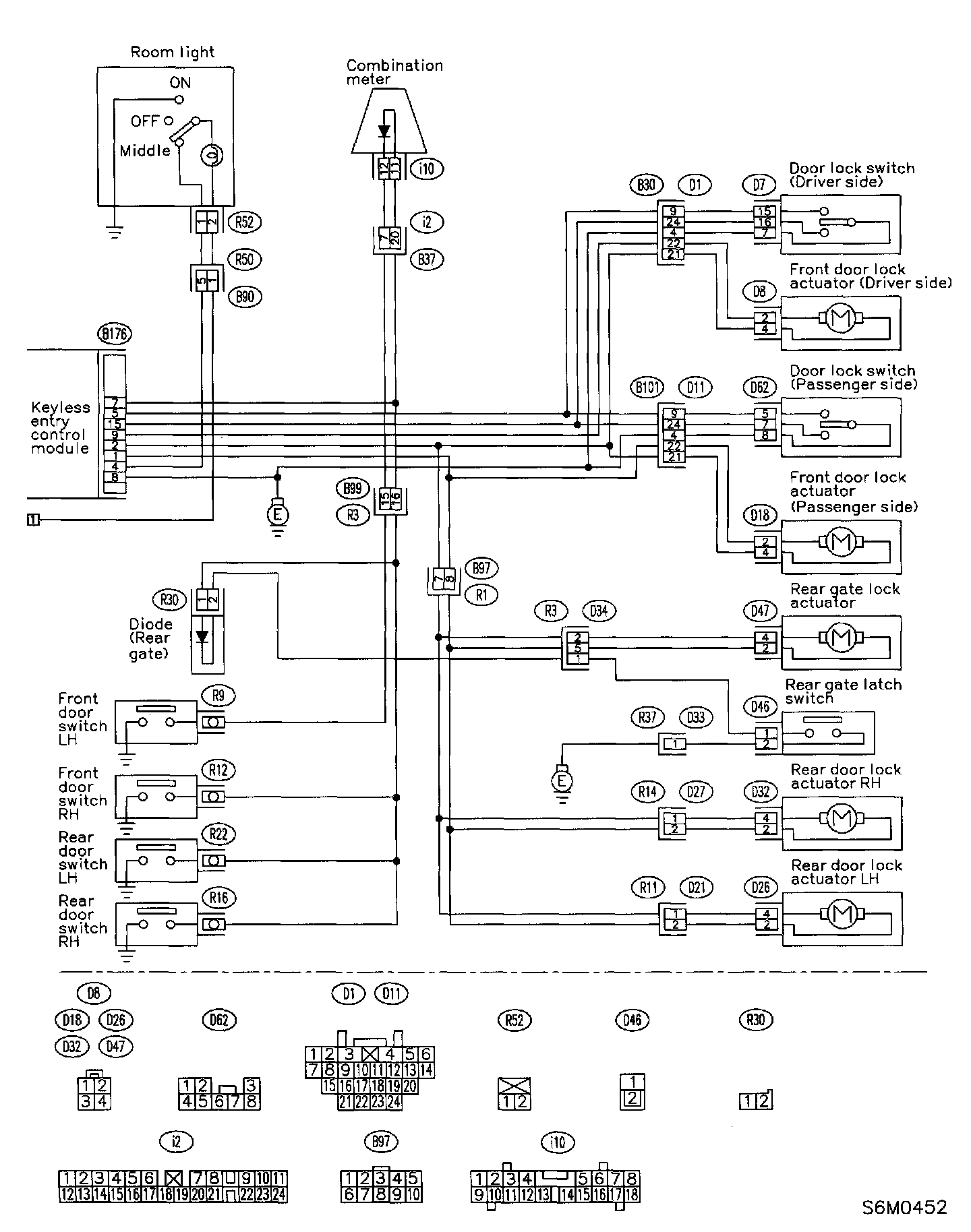

Keyless Entry System Schematic Part 2:



Keyless Entry And Security System - Circuit 1:



Keyless Entry And Security System - Circuit 2:
