System Diagram
System Diagram
Lighting System (Clearance Light And Illumination Light) - Circuit 1:
Lighting System (Clearance Light And Illumination Light) - Circuit 2:

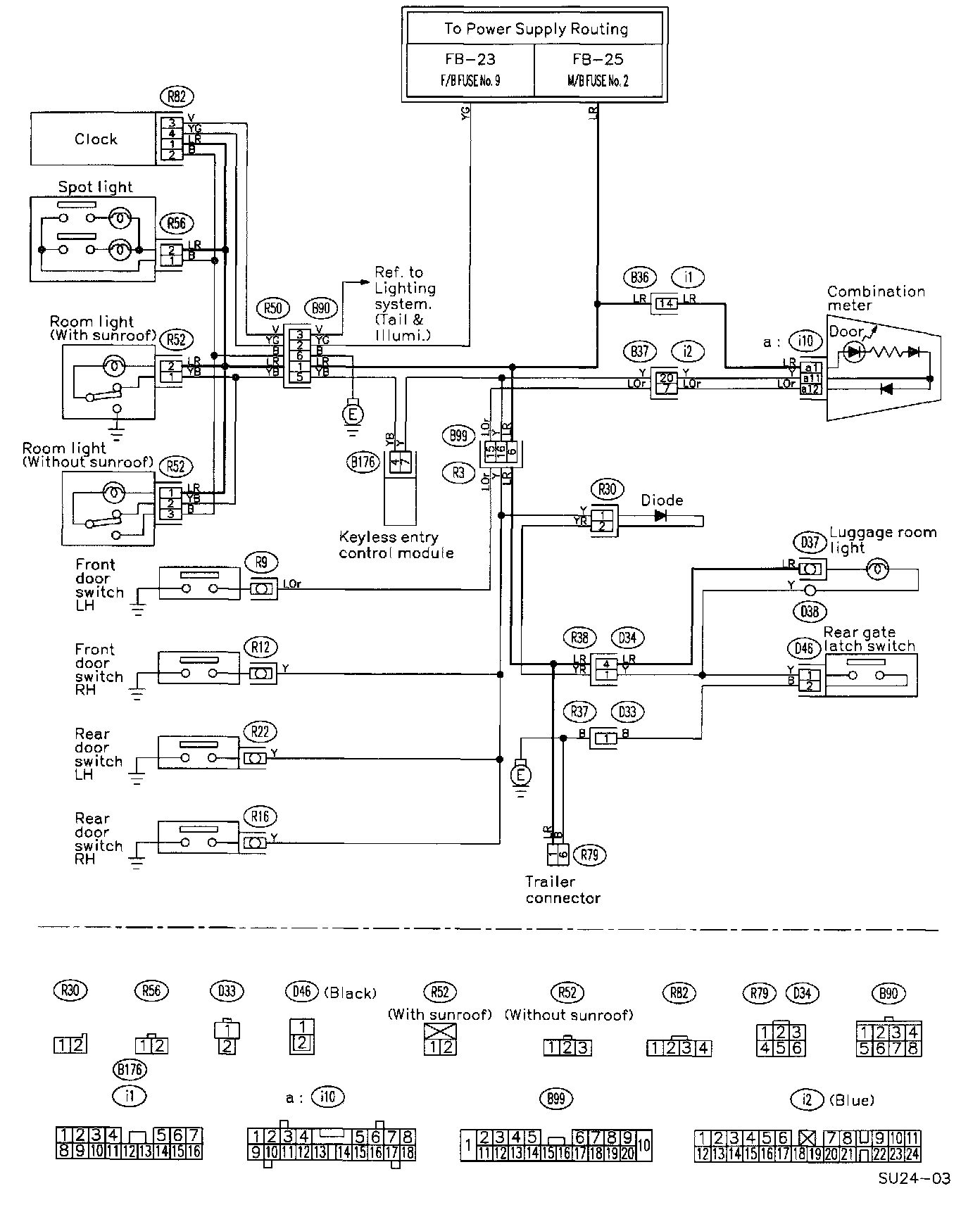

Lighting System (In Compartment) - Circuit:
