Mirrors
Mirrors

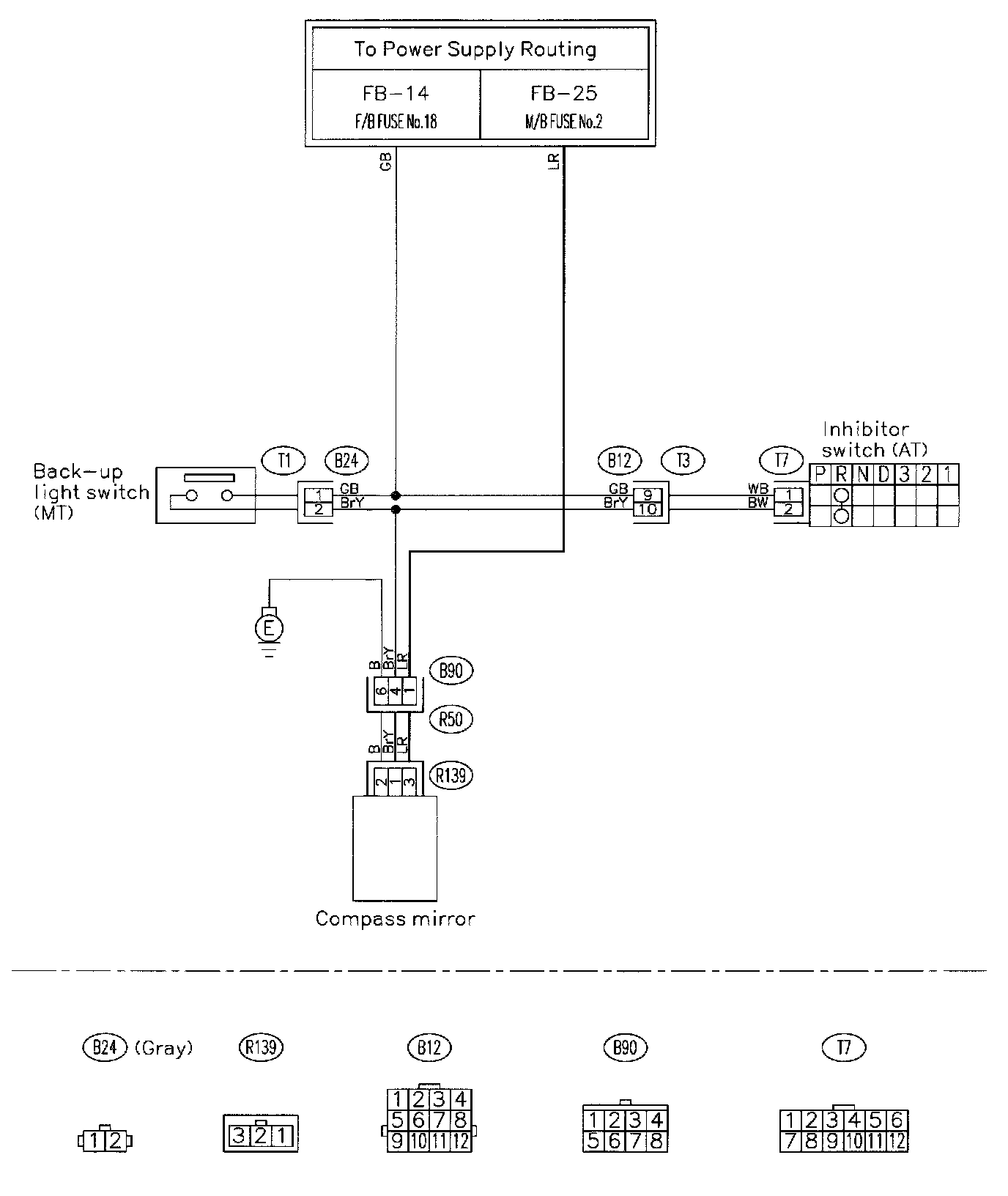

Compass Mirror System - Circuit:

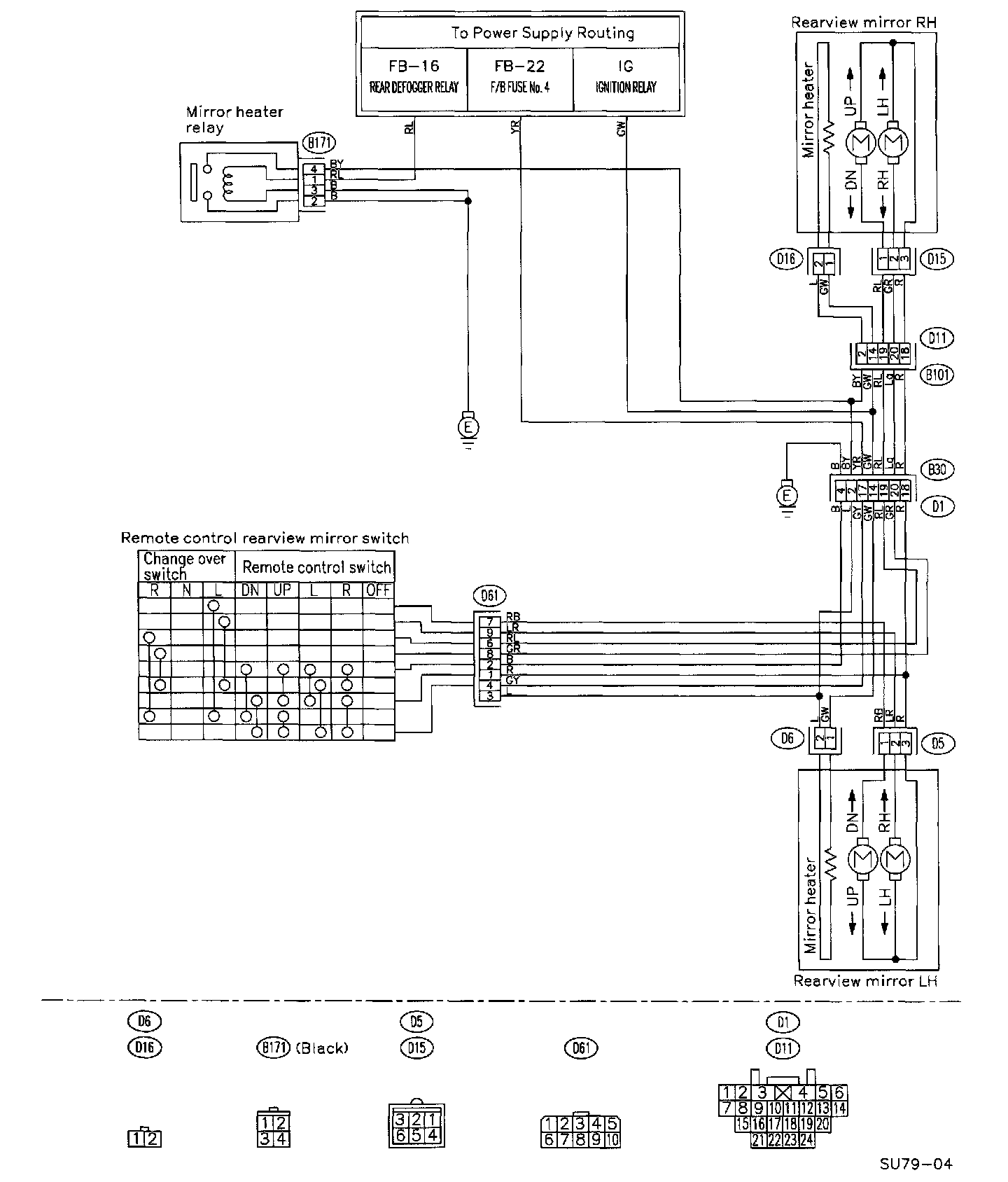

Remote Controlled Rearview Mirror System - Circuit:
