Power Locks
Power Locks

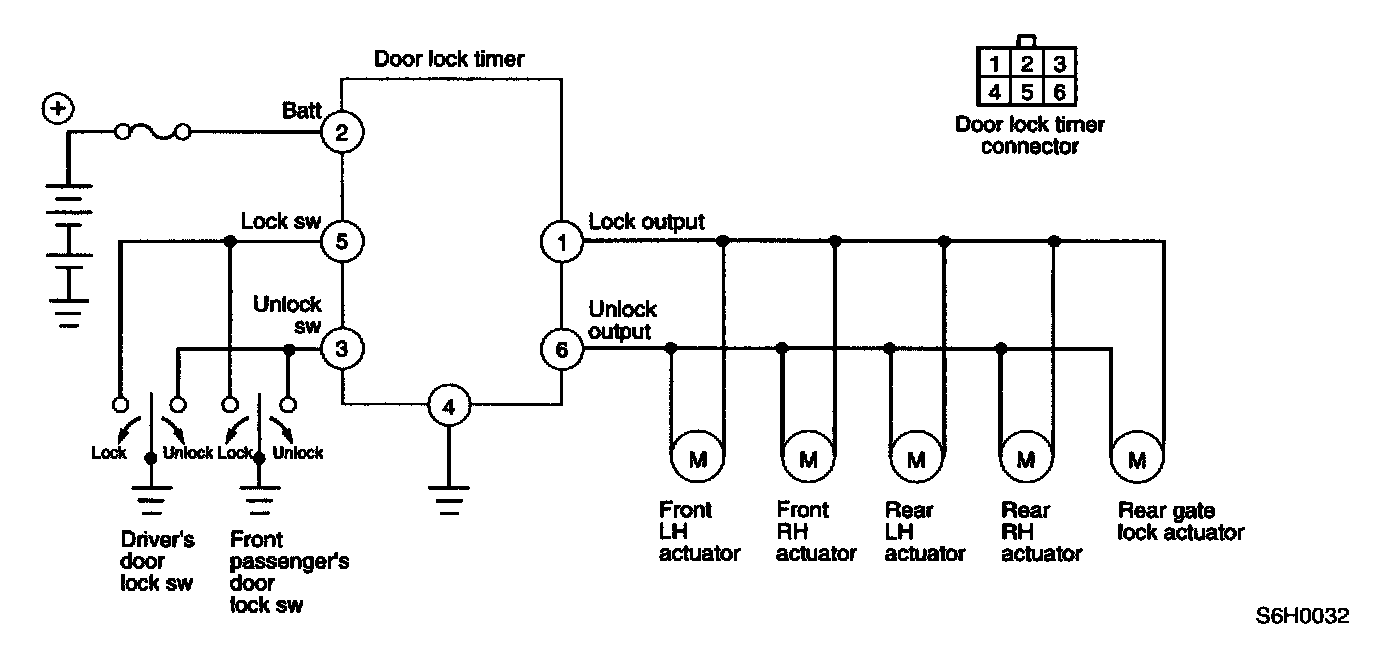

Power Door Lock System Schematic:
Keyless Entry And Security System - Circuit 1:
Keyless Entry And Security System - Circuit 2:
