Auxiliary Power Outlet
Auxiliary Power Outlet

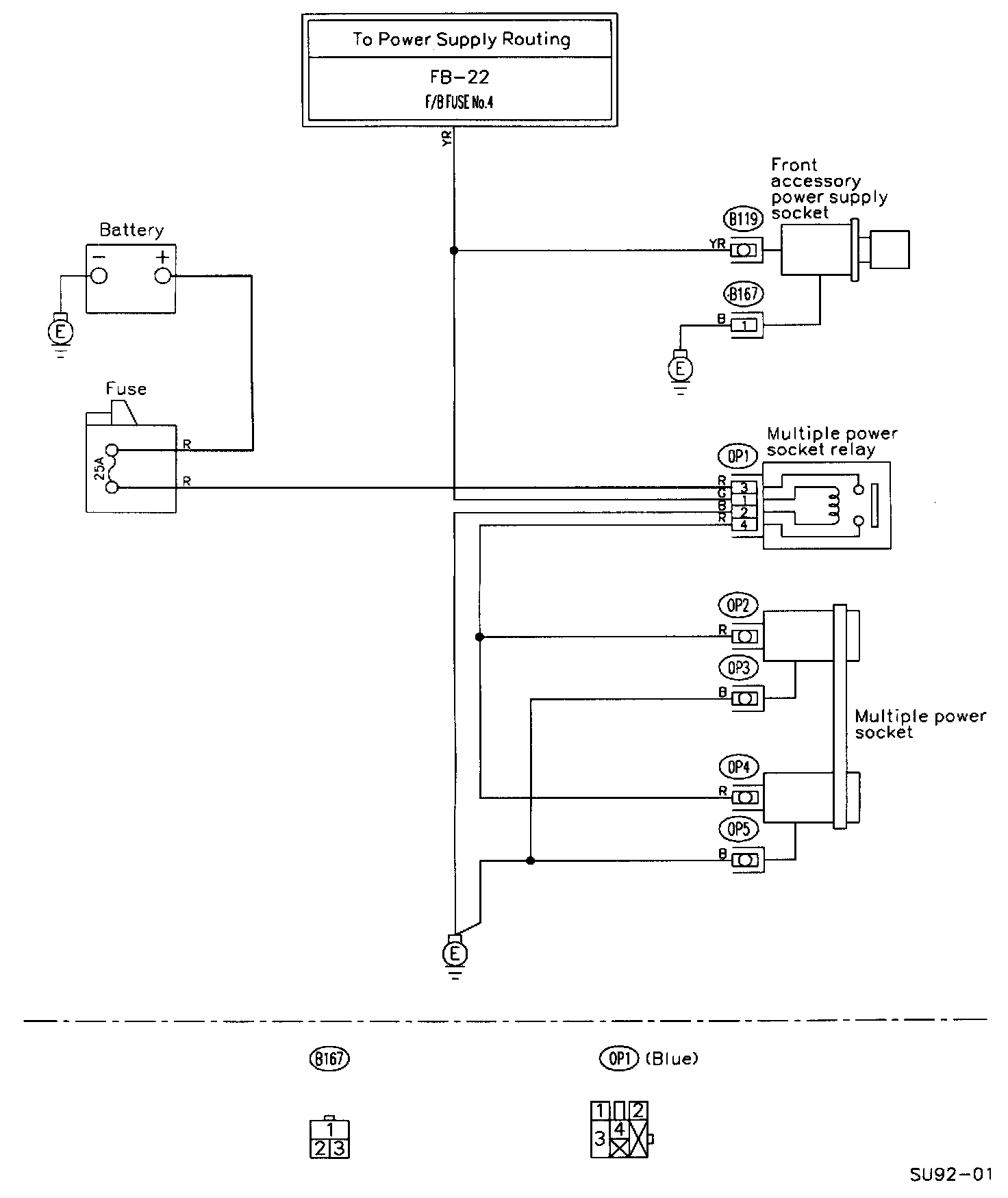

Horn And Front Accessory Power Supply System - Circuit:
Multiple Power Socket System (Option) - Circuit:
Rear Accessary Power Supply System - Circuit:
