Blower Motor: Service and Repair

Removal and Installation




1. Disconnect ground cable from battery.

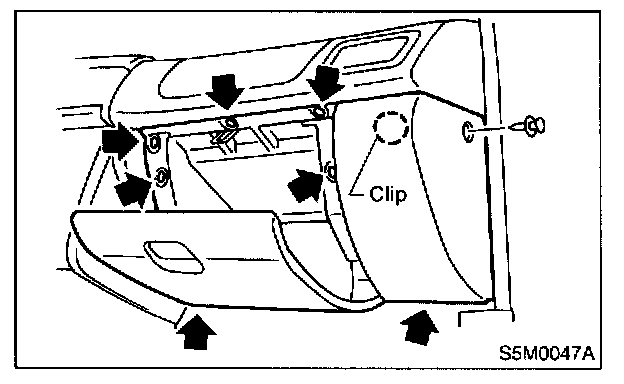

2. Remove glove box.




3. Disconnect blower motor harness connector.
4. Disconnect aspirator pipe (A).
5. Remove blower motor mounting screw.
6. Remove blower motor assembly.
7. Install in the reverse order of removal.
