Instrument Cluster / Carrier: Service and Repair

Removal and Installation

1. Disconnect ground cable from battery.
2. Move steering wheel most down.

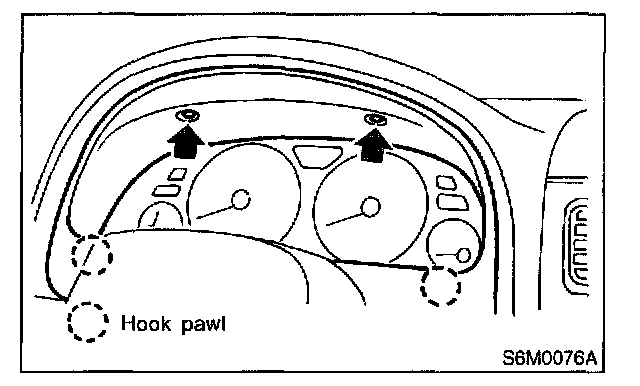

3. Remove screws which secure visor and remove visor.




4. Remove screws which secure combination meter, and pull combination meter out.
5. Disconnect connector from top of combination meter.
6. Install in the reverse order of removal.

CAUTION: When installing the combination meter, be sure to connect the connectors to the top of combination meter.
