Headlamp: Service and Repair
1. HEADLIGHT AND SIDE MARKER LIGHT1. Disconnect ground cable from battery.
2. Remove front grille and disconnect connector from headlight.
3. Remove screw (A) then remove side marker light while disconnecting connector.
4. Remove extension (B).
5. Remove bolts (C) which secure headlight and remove headlight.
6. Install in the reverse order of removal.
Tightening torque: 6.4 ± 0.5 N.m (0.65 ± 0.05 kg-m, 4.7 ± 0.4 ft-lb)
NOTE: When installing, securely fit clip (on fender side) into locating (on front turn signal light side).
2. REAR COMBINATION LIGHT
1. Disconnect ground cable from battery.
2. Remove rear quarter upper and lower trim.
3. Remove nuts and disconnect connector.
4. Attach adhesive cloth tape to body area around rear combination light.
5. Using a standard screwdriver, carefully pry rear combination light off and away from the front of the vehicle.
6. Install in the reverse order of removal.
Tightening torque: 6.4 ± 0.5 N.m (0.65 ± 0.05 kg-m, 4.7 ± 0.4 ft-lb)
CAUTION:
- Do not pry on the rear combination light forcefully as this may scratch the vehicle body.
- Remove all traces of adhesive tape from body before installation.
- Attach butyl rubber tape to back of rear combination light before installing rear combination light on body for sealing purposes.
3. REAR FINISHER LIGHT
1. Disconnect ground cable from battery.
2. Remove rear gate trim access hole cover.
3. Remove the four nuts.
4. Detach rear finisher light while disconnecting connector.
5. Install in the reverse order of removal.
4. HIGH-MOUNTED STOP LIGHT
1. Disconnect ground cable from battery.
2. Remove cap (A) by prying on the edge with a screwdriver.
3. Remove screws (B) and then detach cover (C).
4. Remove screws (D) and then detach high-mounted stop light while disconnecting connector.
5. Install in the reverse order of removal.
5. COMBINATION SWITCH
1. Disconnect ground cable from battery.
2. Remove instrument panel lower cover.

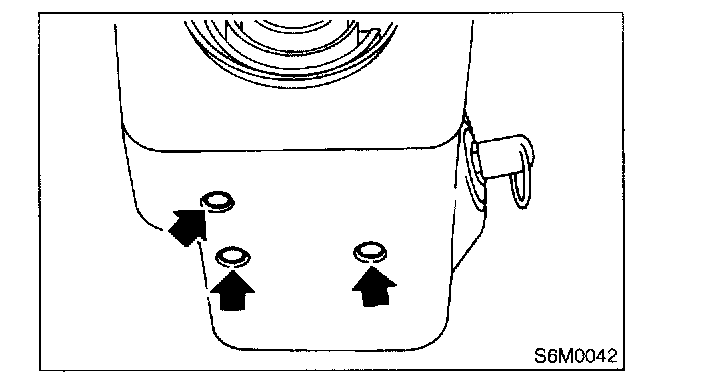

3. Remove screws which secure upper column cover to lower column cover.
4. Disconnect connector from combination switch.
5. Remove screws which secure switch and remove switch.
6. Install in the reverse order of removal.
