Drive Belt: Testing and Inspection

INSPECTION
1. Replace belts, if cracks, fraying or wear is found.

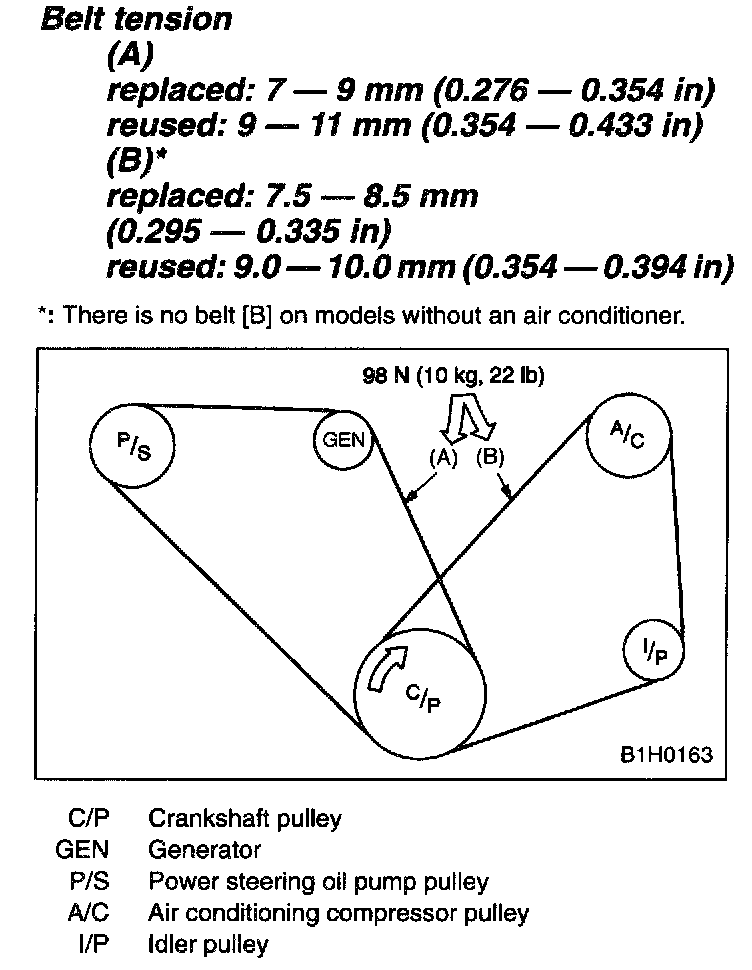

2. Check drive belt tension and adjust it if necessary by changing alternator installing position and/or idler pulley installing position.
