Power Supply Routing
Power Supply Routing

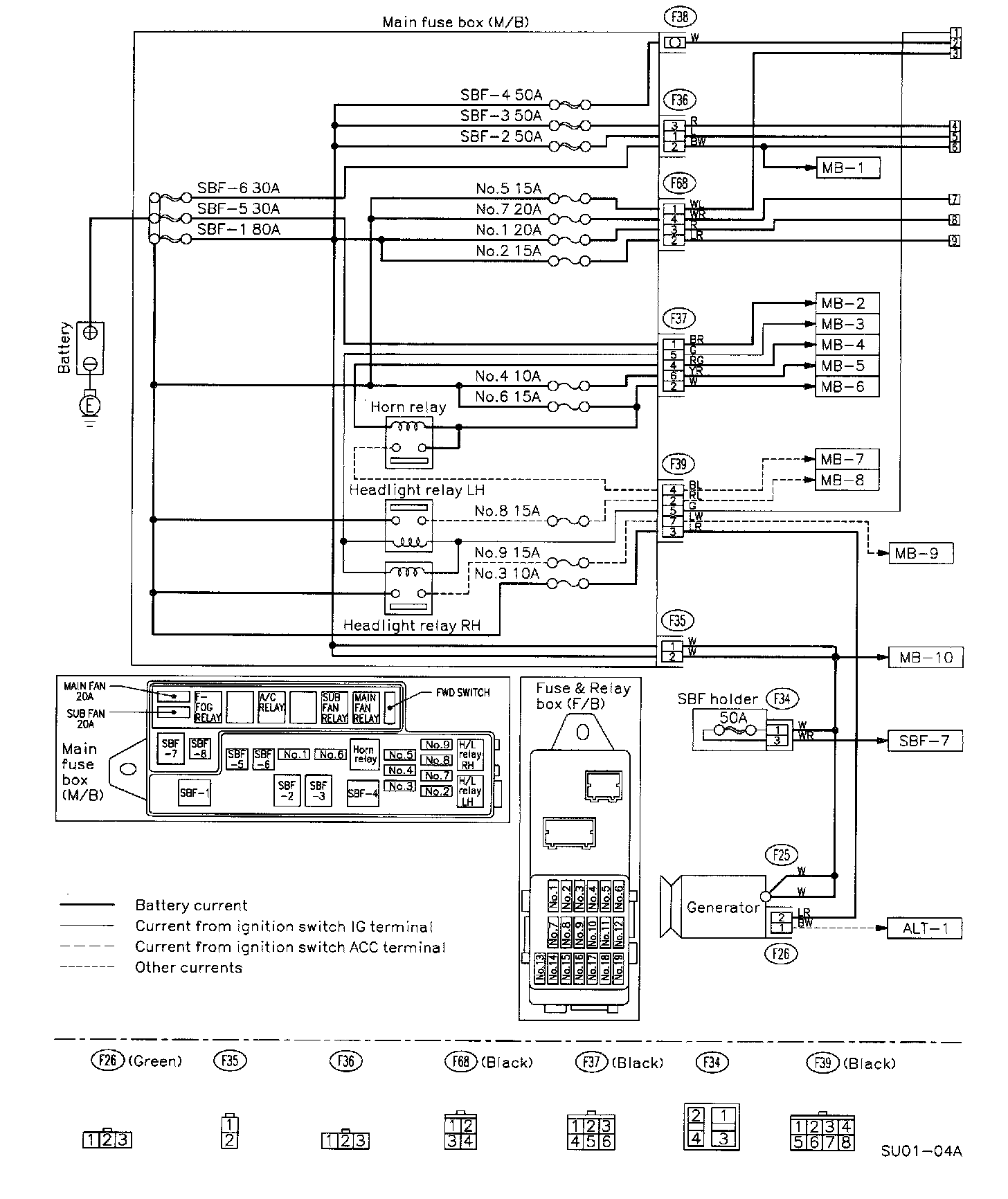

Power Supply Routing - Circuit 1:
Power Supply Routing - Circuit 2:

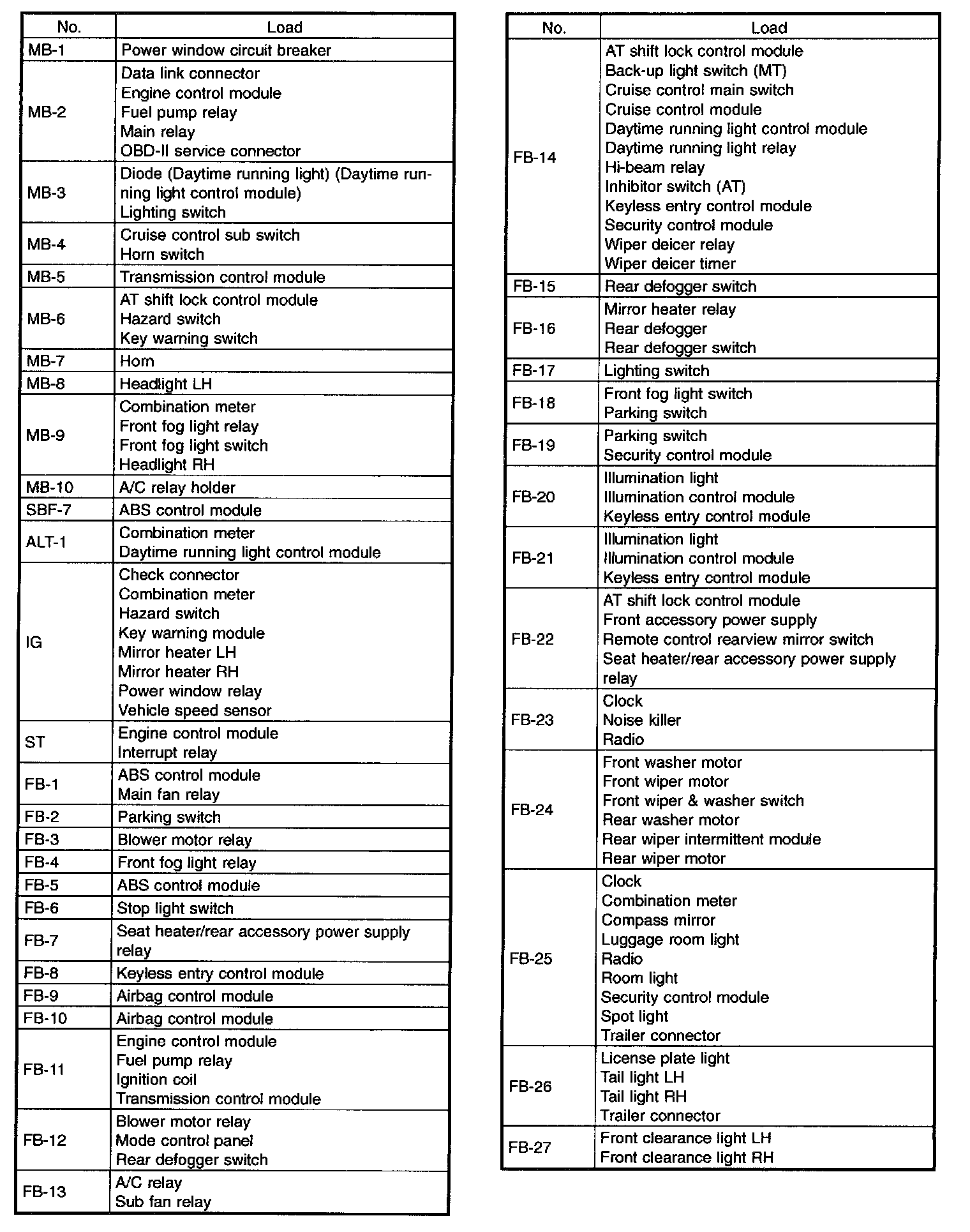

List of Items Part 1:

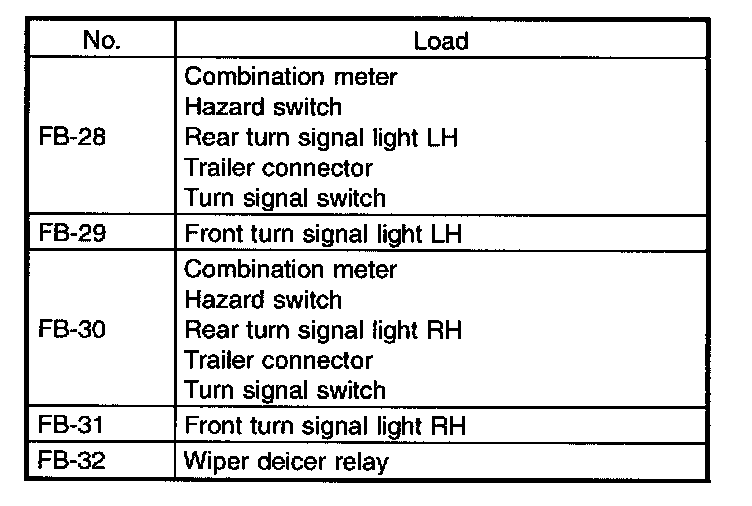

List of Items Part 2:
