Engine Wiring Diagrams

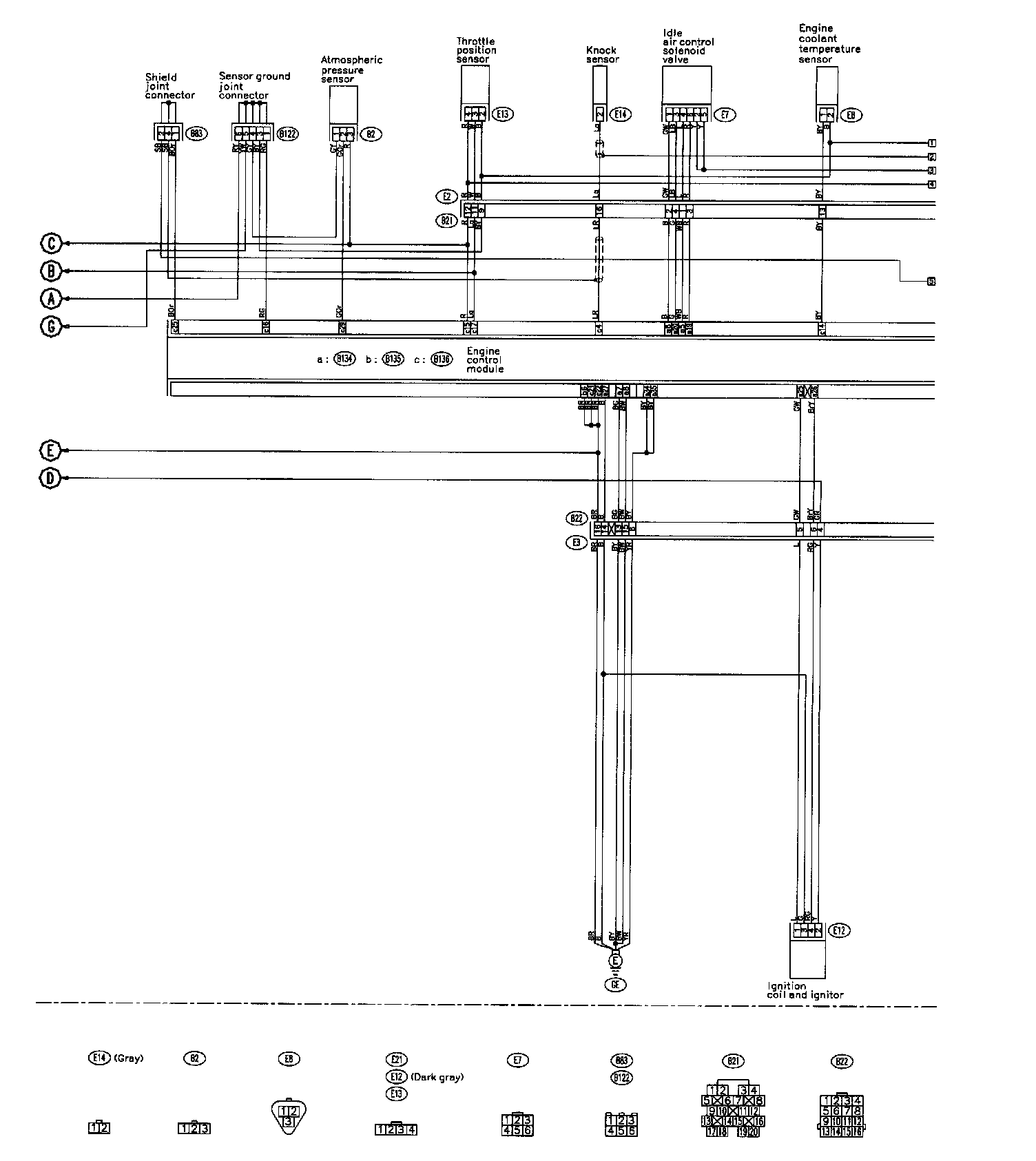

Engine Electrical System - Circuit 1:

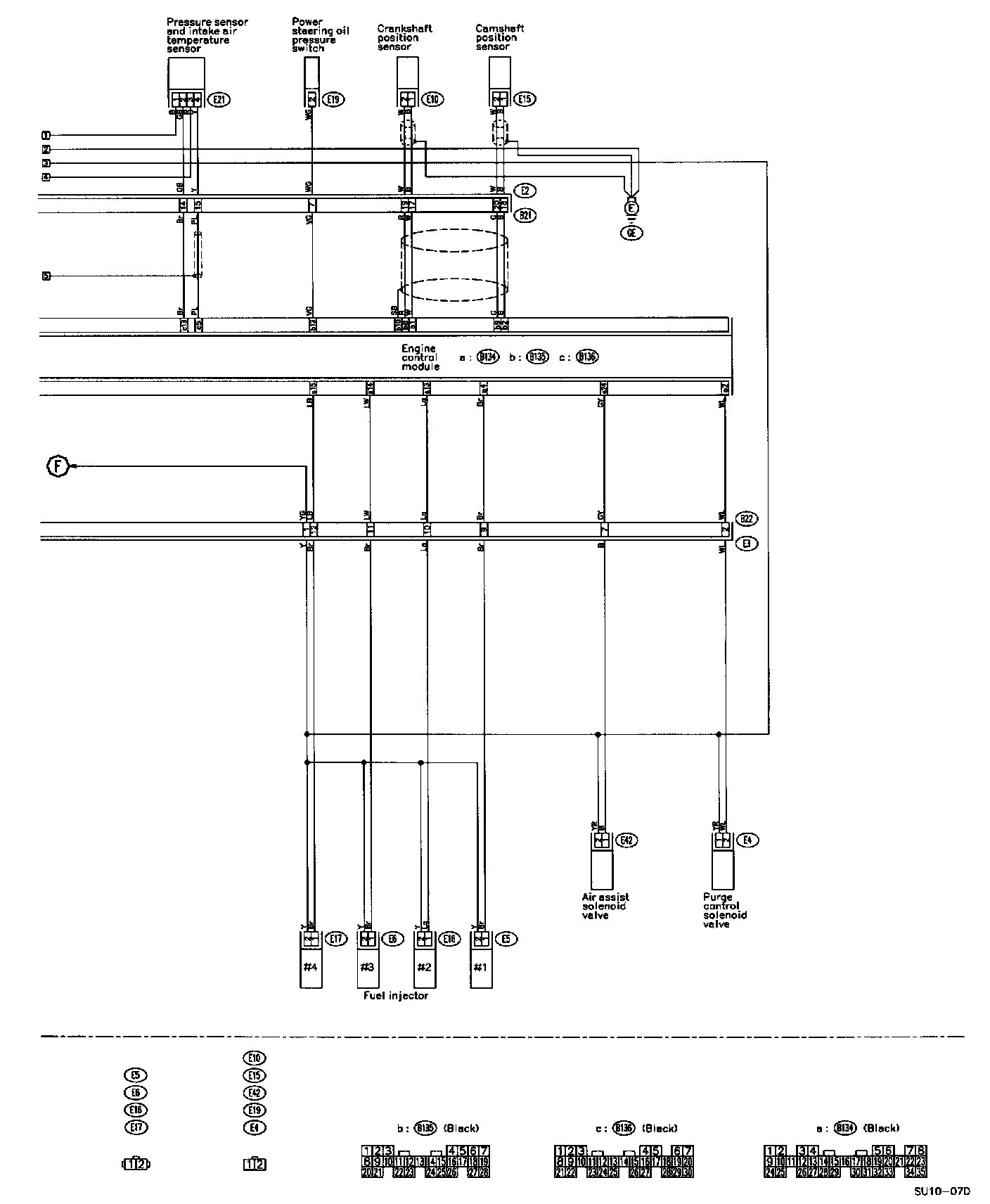

Engine Electrical System - Circuit 2:



Engine Electrical System - Circuit 3:



Engine Electrical System - Circuit 4:
