Pinout Values and Diagnostic Parameters

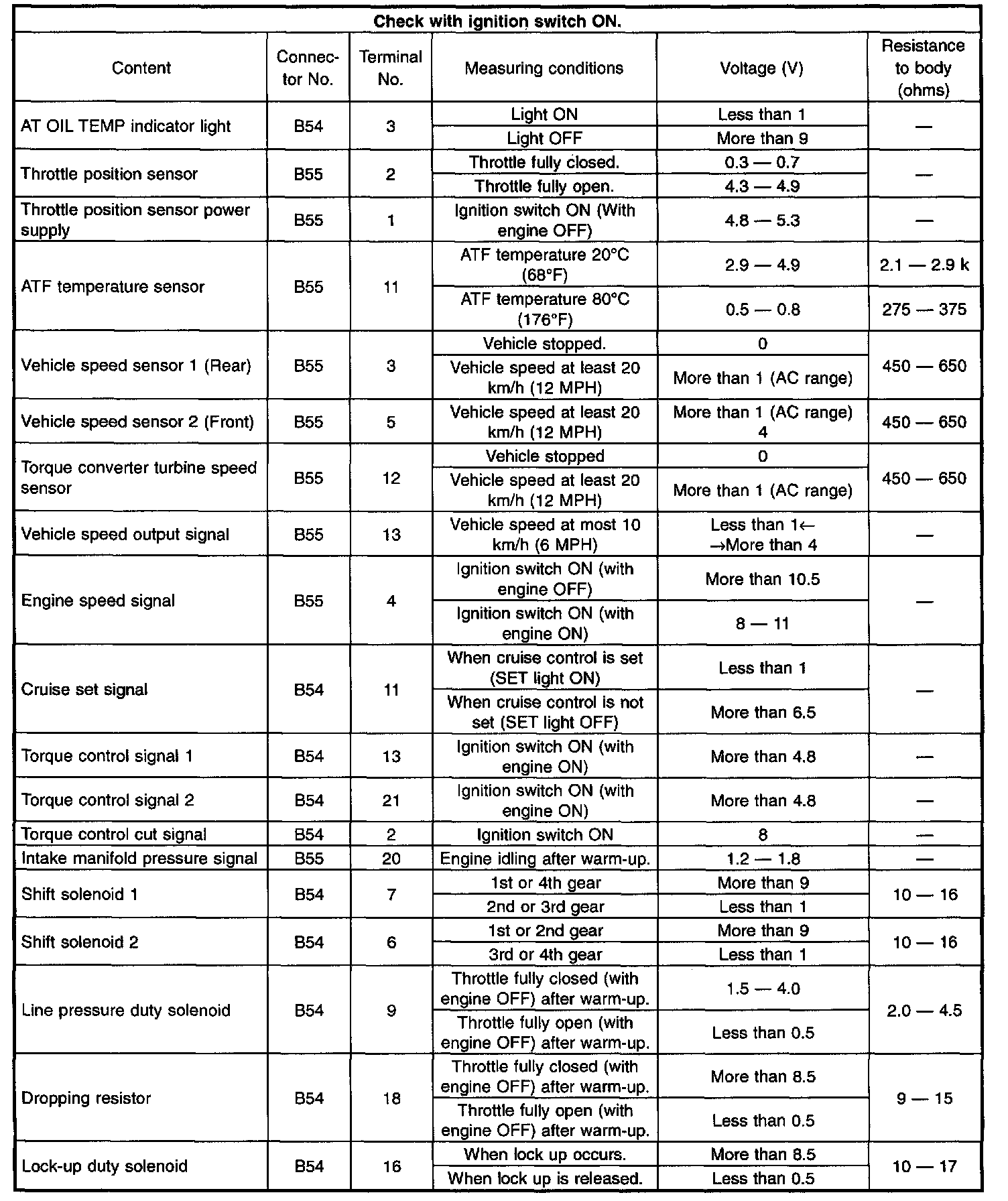

5. TRANSMISSION CONTROL MODULE (TCM) I/0 SIGNAL
1 of 4
2 of 4
3 of 4
4 of 4
