Front Seat

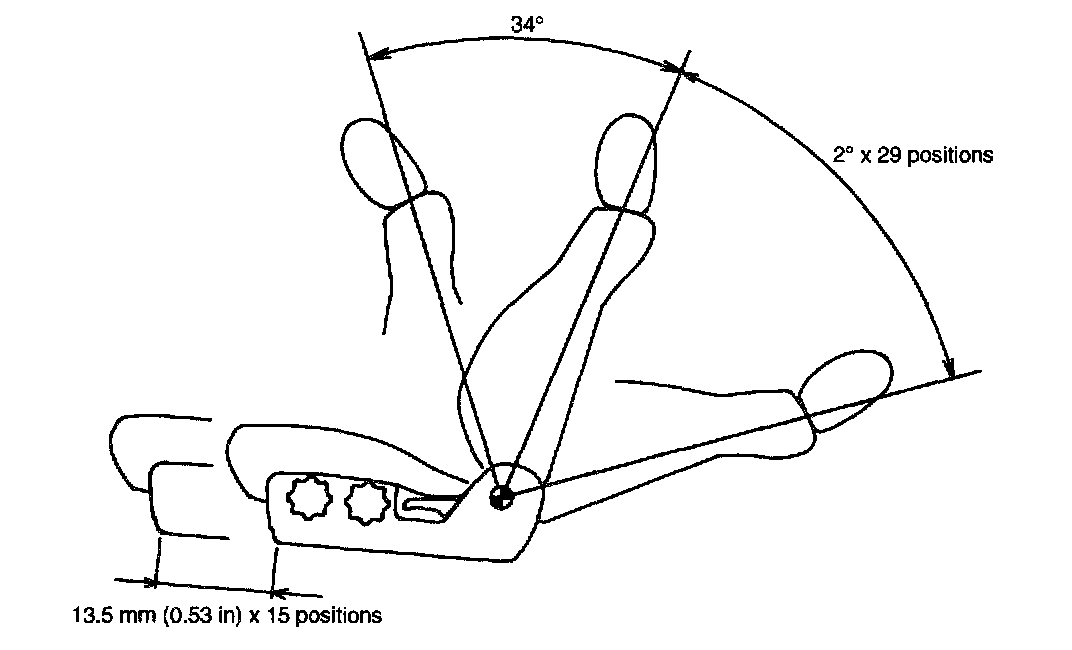

ADJUSTMENT
- The height of each head restraint is adjustable to 4 positions at 20 mm (0.79 in) steps.
- The angle of each backrest is adjustable to 29 positions at 20 steps.
- The front seat can be slid back and forth to one of 15 positions at 13.5 mm (0.53 in) steps.

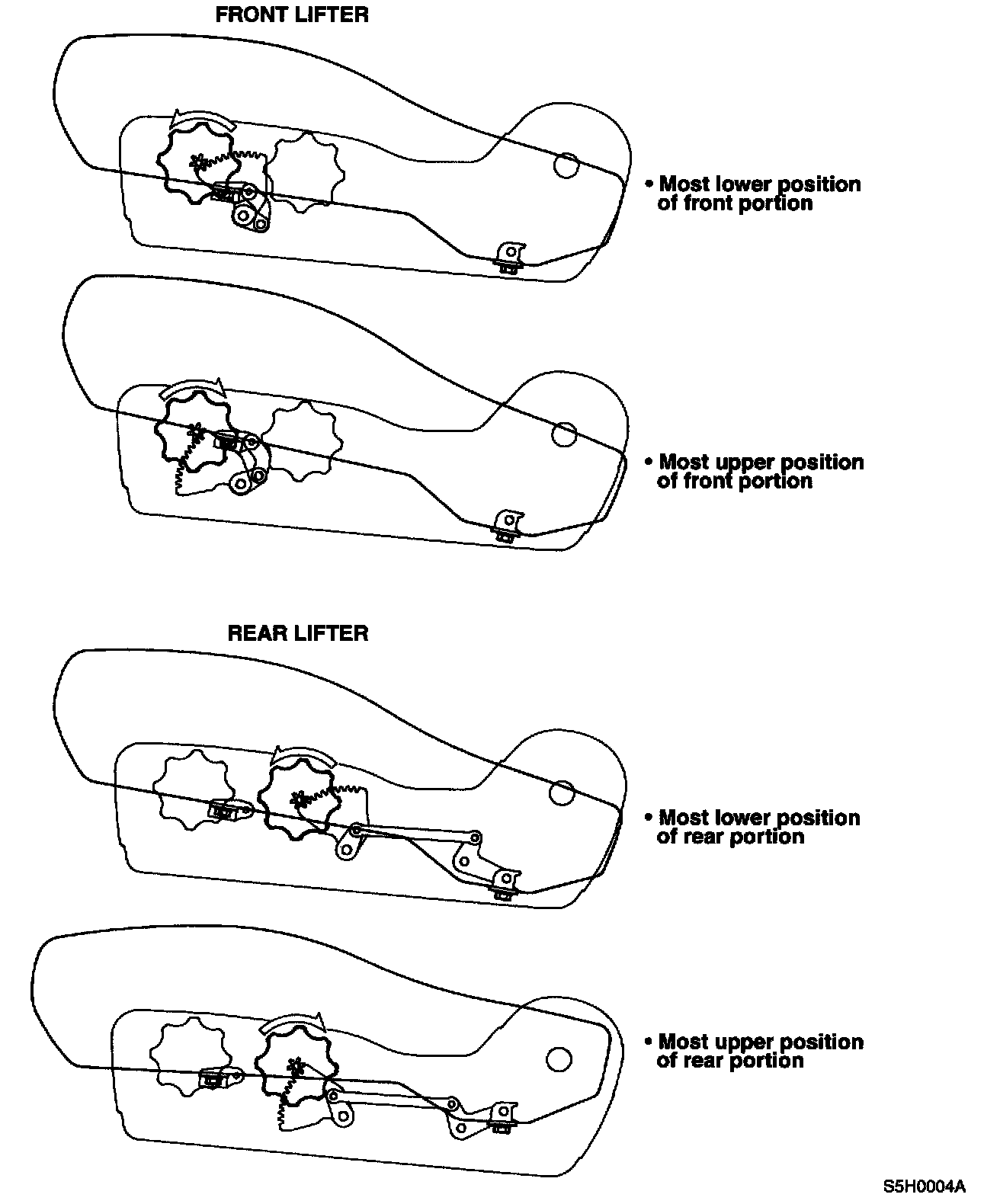

SEAT LIFTER
- When the front lifter adjustment dial is rotated, the front portion of seat cushion can be adjusted to the desired height.
- When the rear lifter adjustment dial is rotated, the rear portion of seat cushion can be adjusted to the desired height.

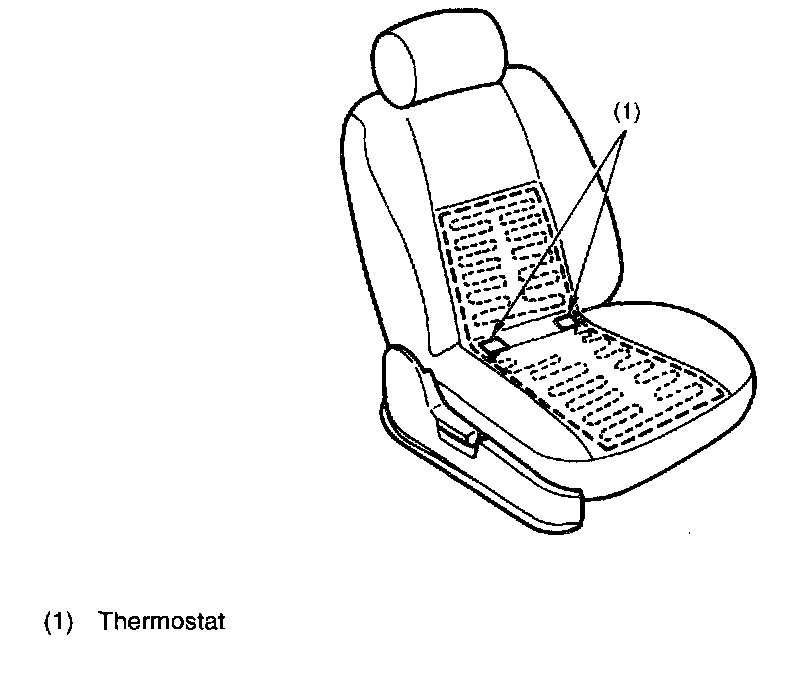

SEAT HEATER
The seat accommodates an electric heater (comprising wire-like heating elements buried under the seat surface skin) to directly warm the body. Temperature control switchover can be made in two stages; high and low (high circuit for quick warming and low circuit for preservation of warmth). Two thermostats are provided for each seat as temperature control and safety devices.

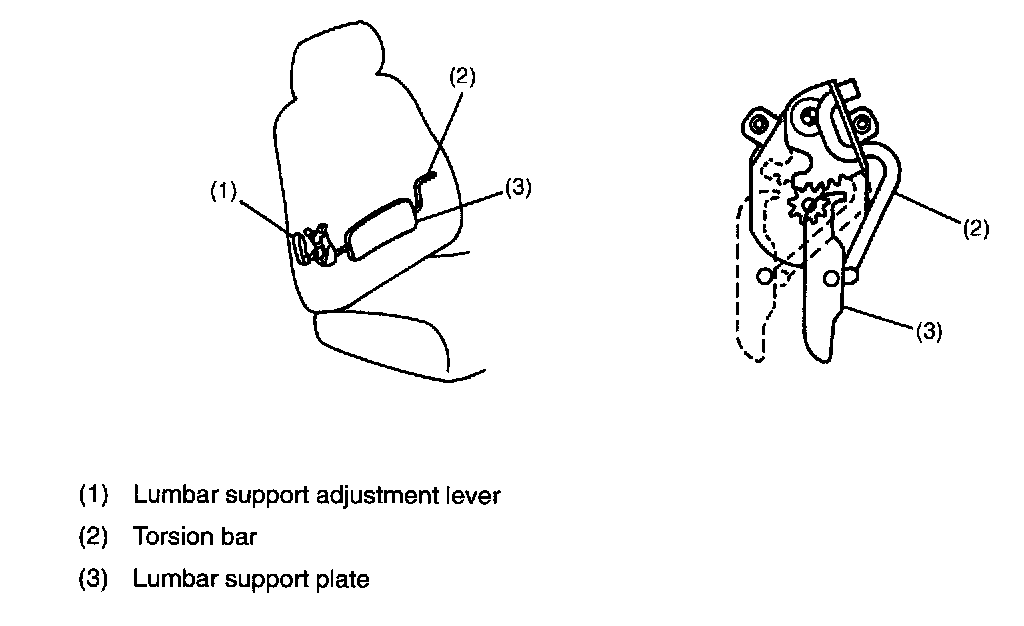

LUMBAR SUPPORT
The lumbar support adjustment lever can set the loin supporting section of the backrest to free position in the fore-and-aft direction.
