Home >> Subaru >> 2001 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Locations

Seat Belt Systems: Locations

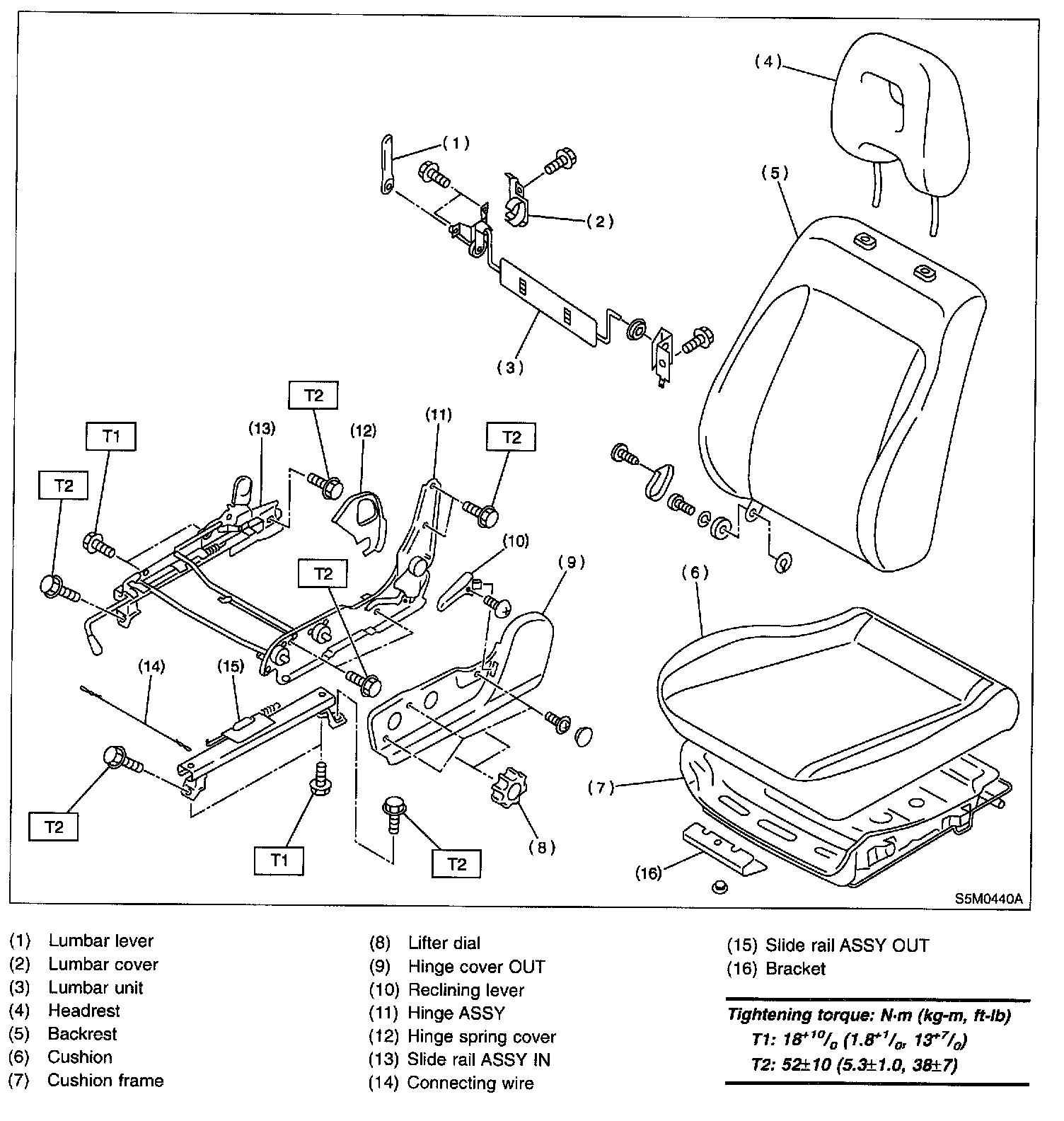

Front Seat:

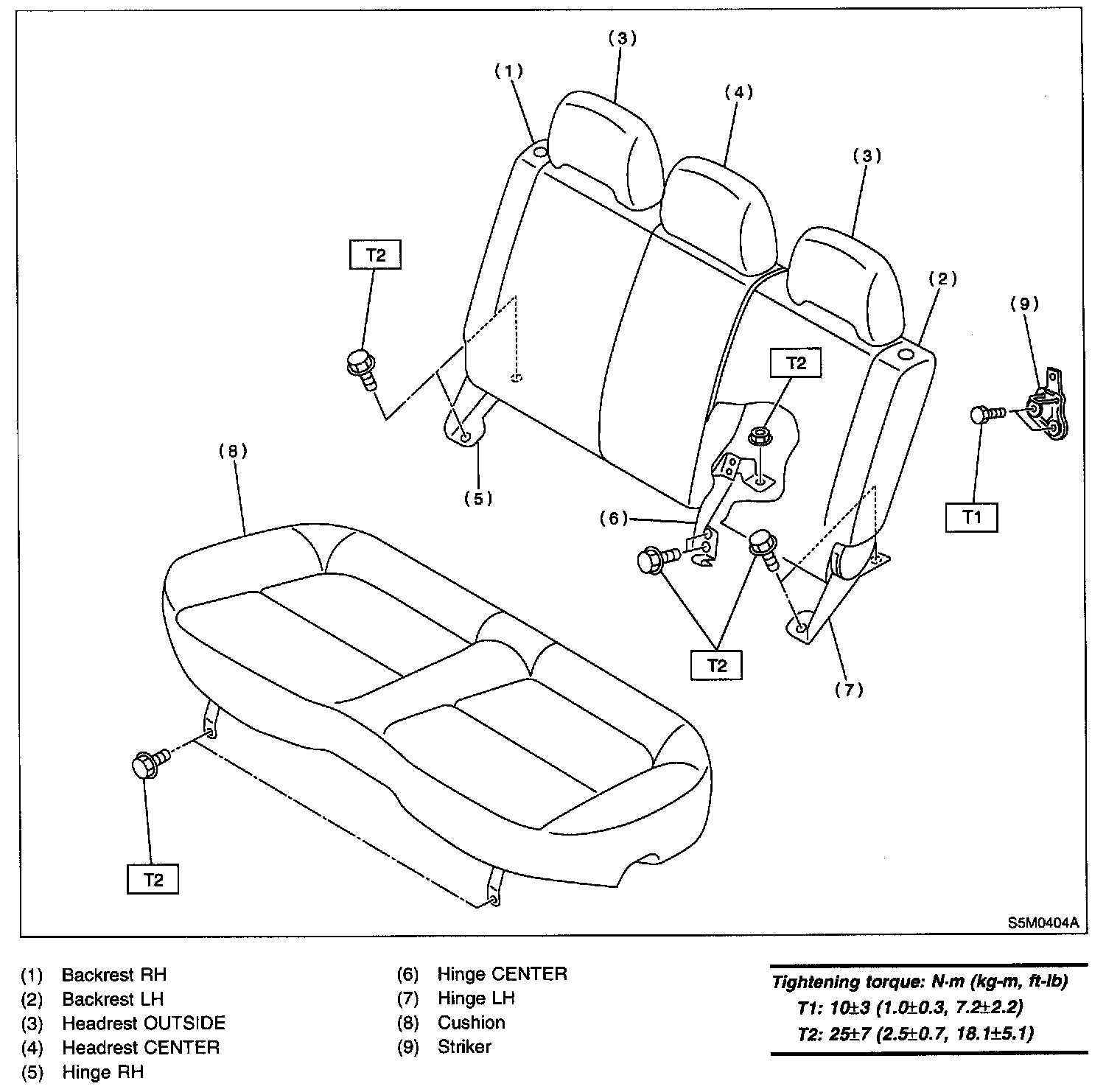

Rear Seat:
