Rear Seat

REMOVAL AND INSTALLATION

1. CUSHION

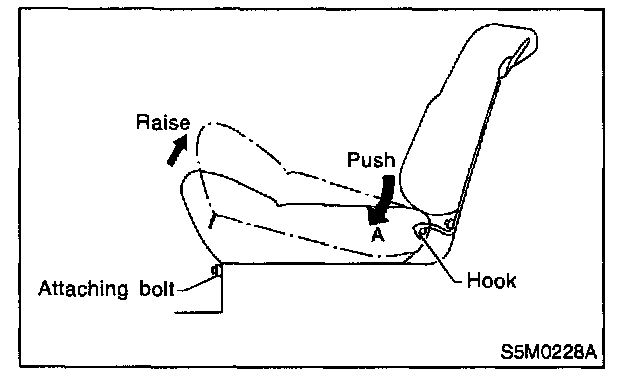

1. Remove bolts securing hinges (located at front of cushion) to body.




2. Slightly raise front of cushion while pushing down on cushion in the direction of "A". With cushion held in that position, move it forward until it is unhooked.
3. Install in the reverse order of removal.

2. BACKREST
1. Remove cushion.
2. Remove rear quarter lower trim.

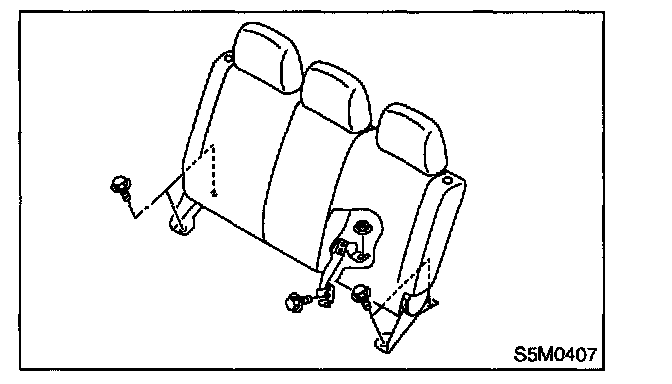

3. Remove bolts and nuts.
4. Detach backrest.
5. Install in the reverse order of removal.

CAUTION:
- Before installing seat, ensure that seat belt is placed on cushion.
- Confirm that winding of three-point type seat belt can operate regularly.
