Fluid Diagrams
9. Schematic Drawing

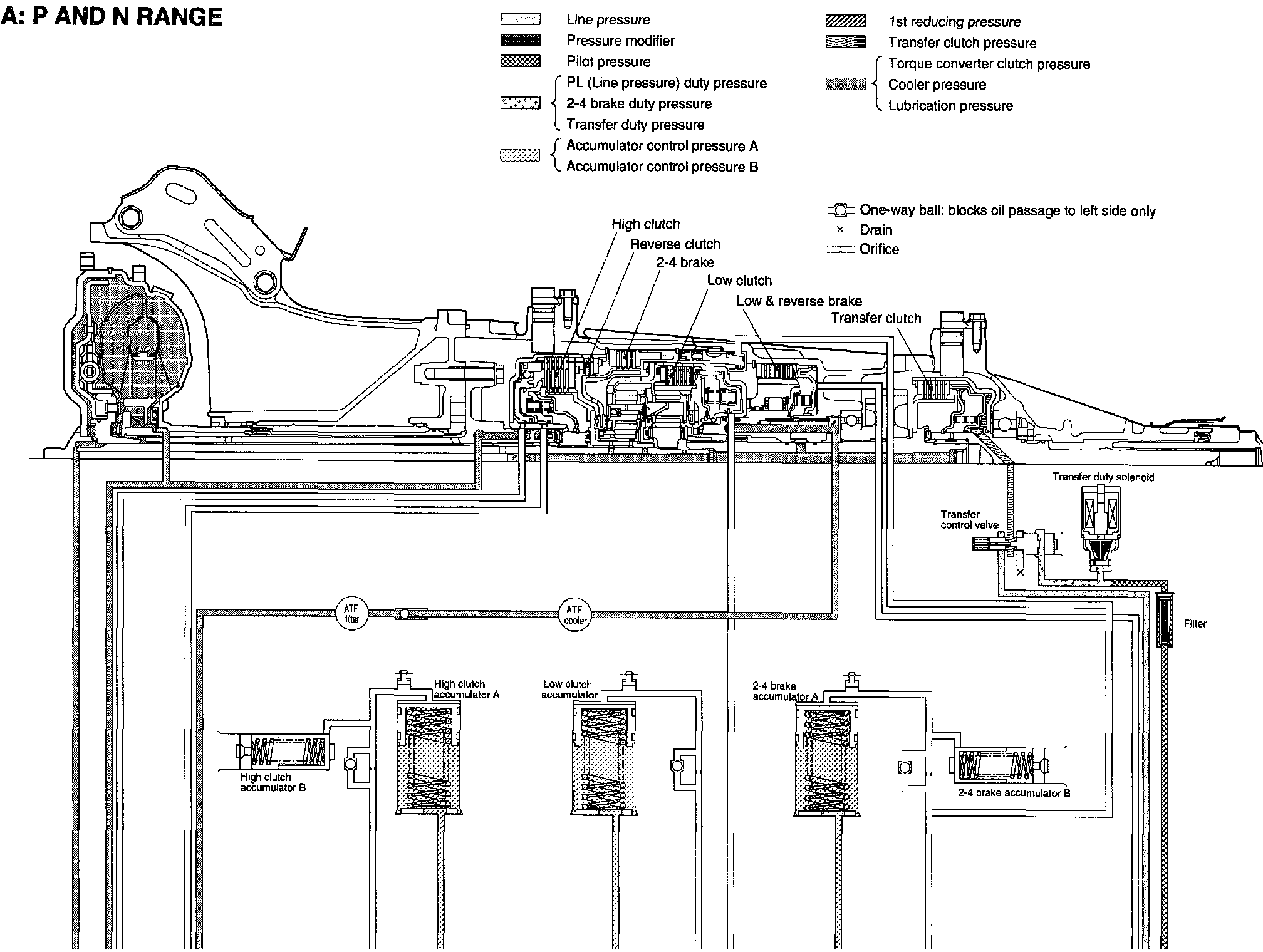

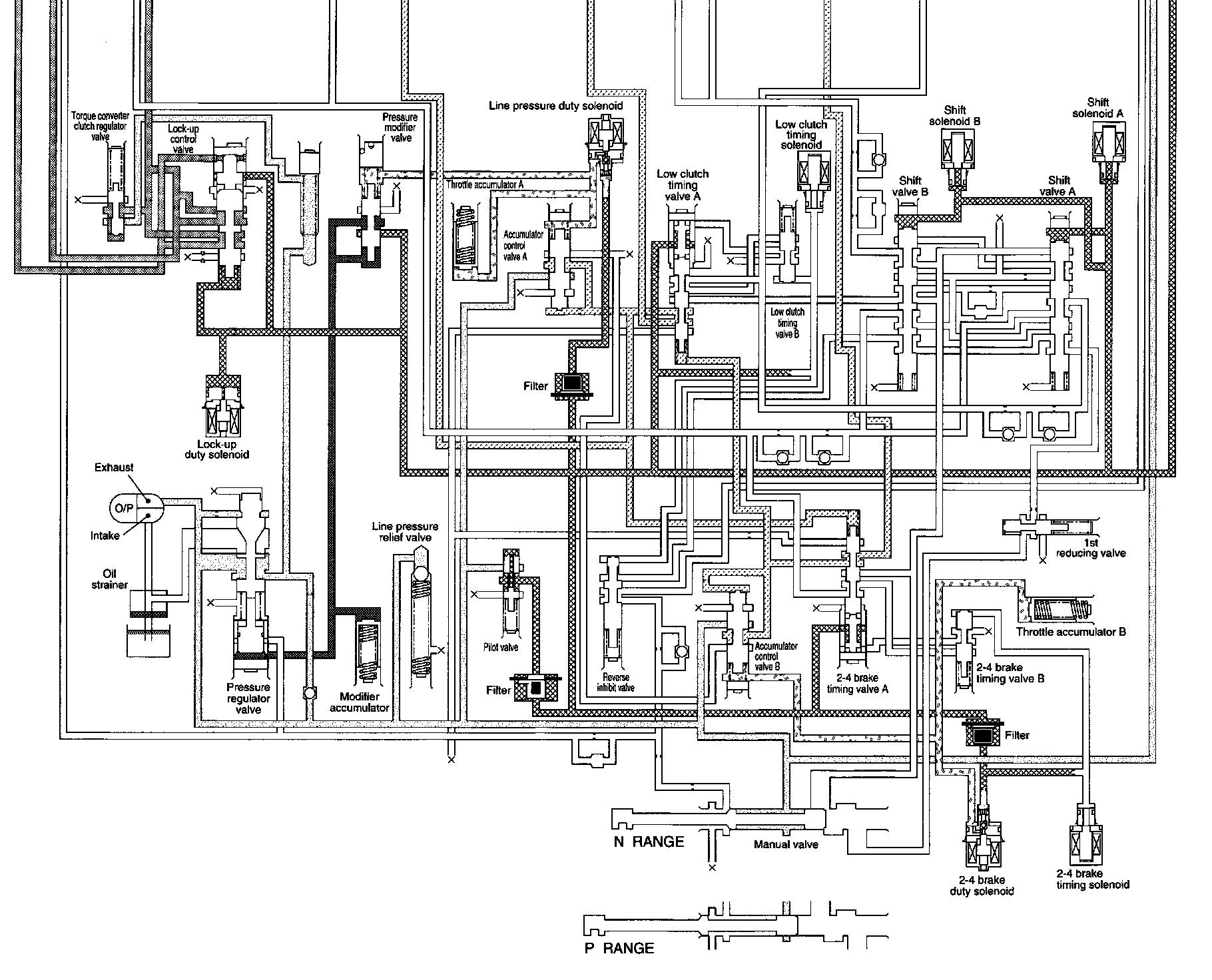

A: P AND N RANGE

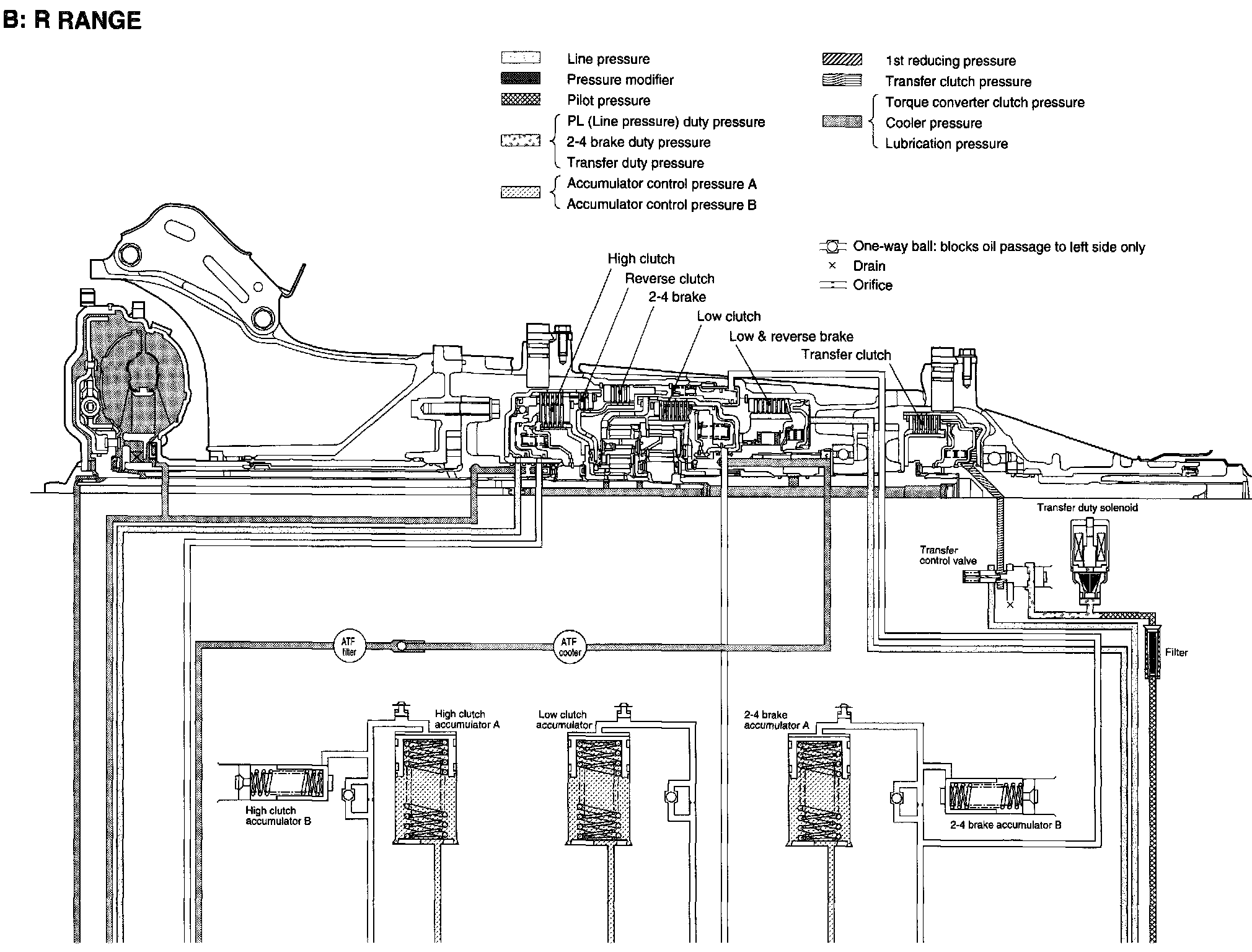

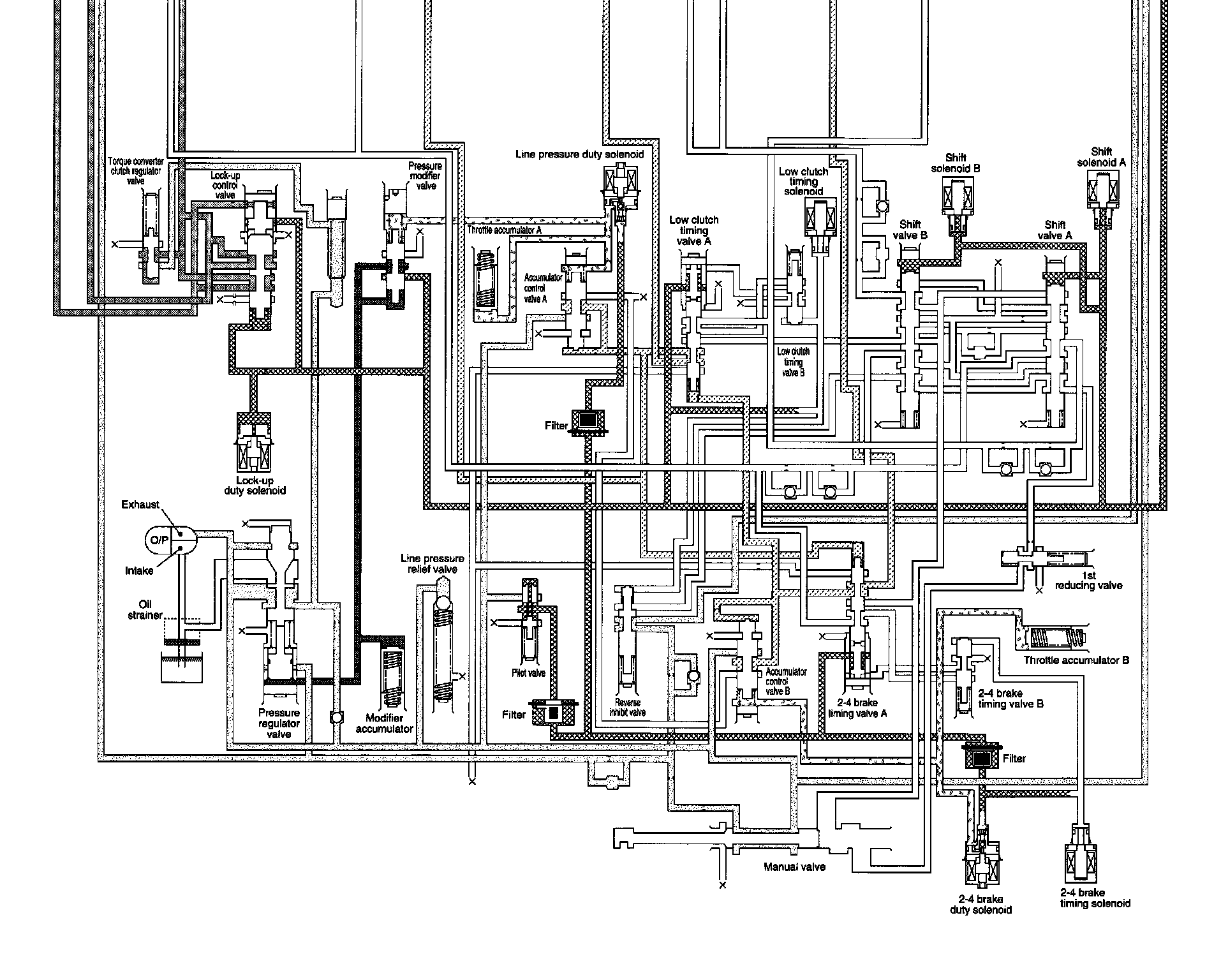

B: R RANGE

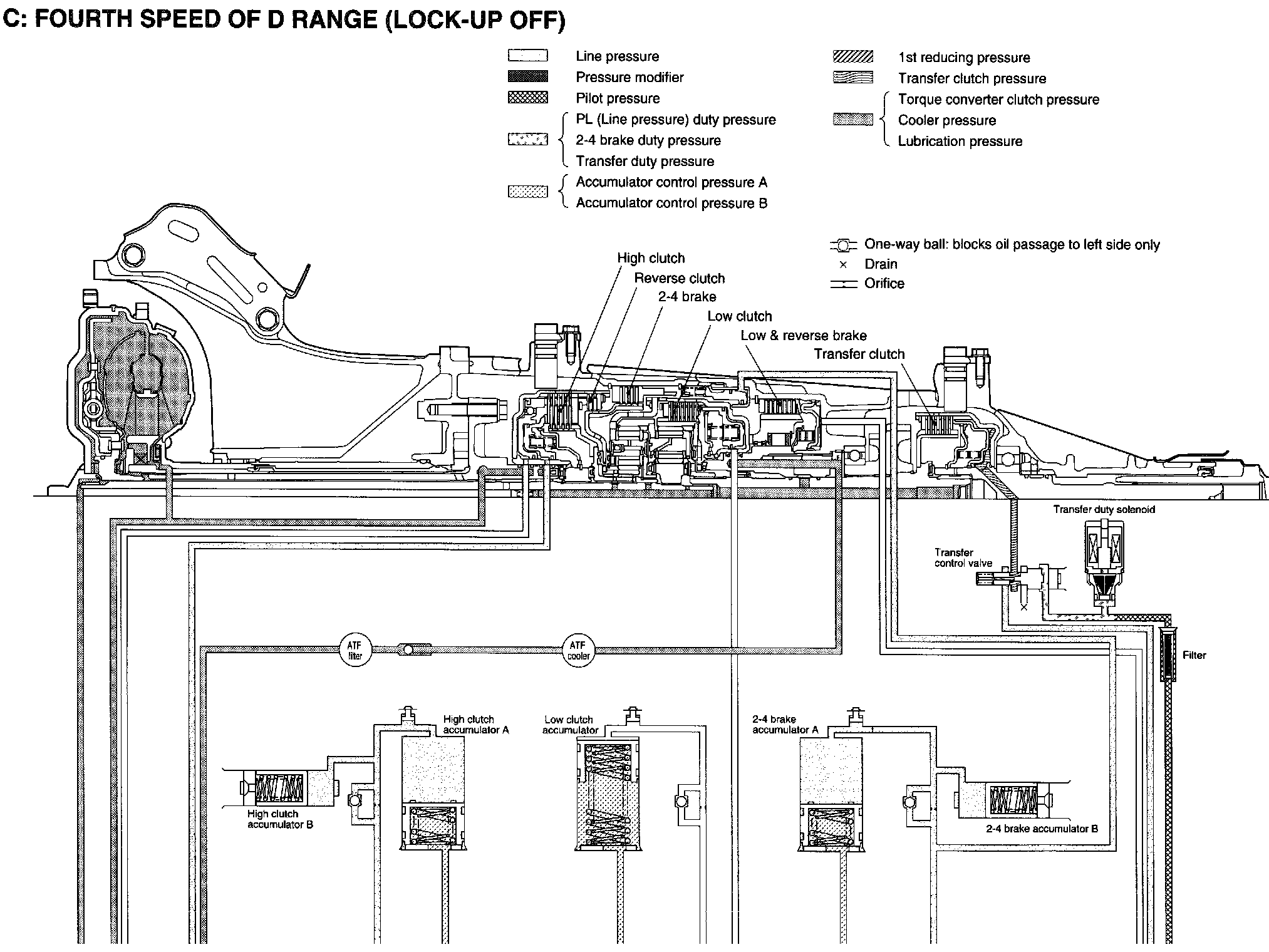

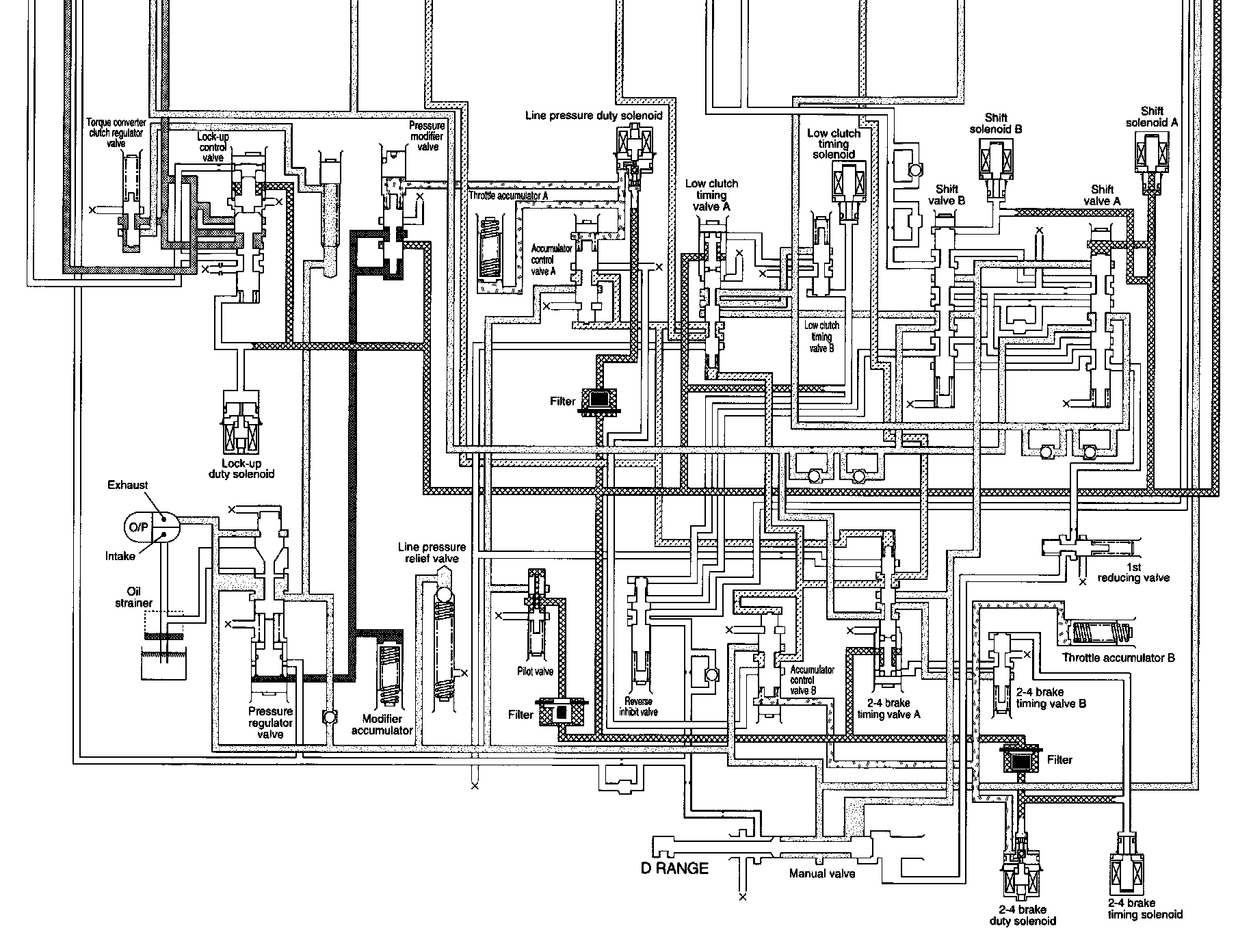

C: FOURTH SPEED OF D RANGE (LOCK-UP OFF)
D: FOURTH SPEED OF D RANGE (LOCK-UP ON)

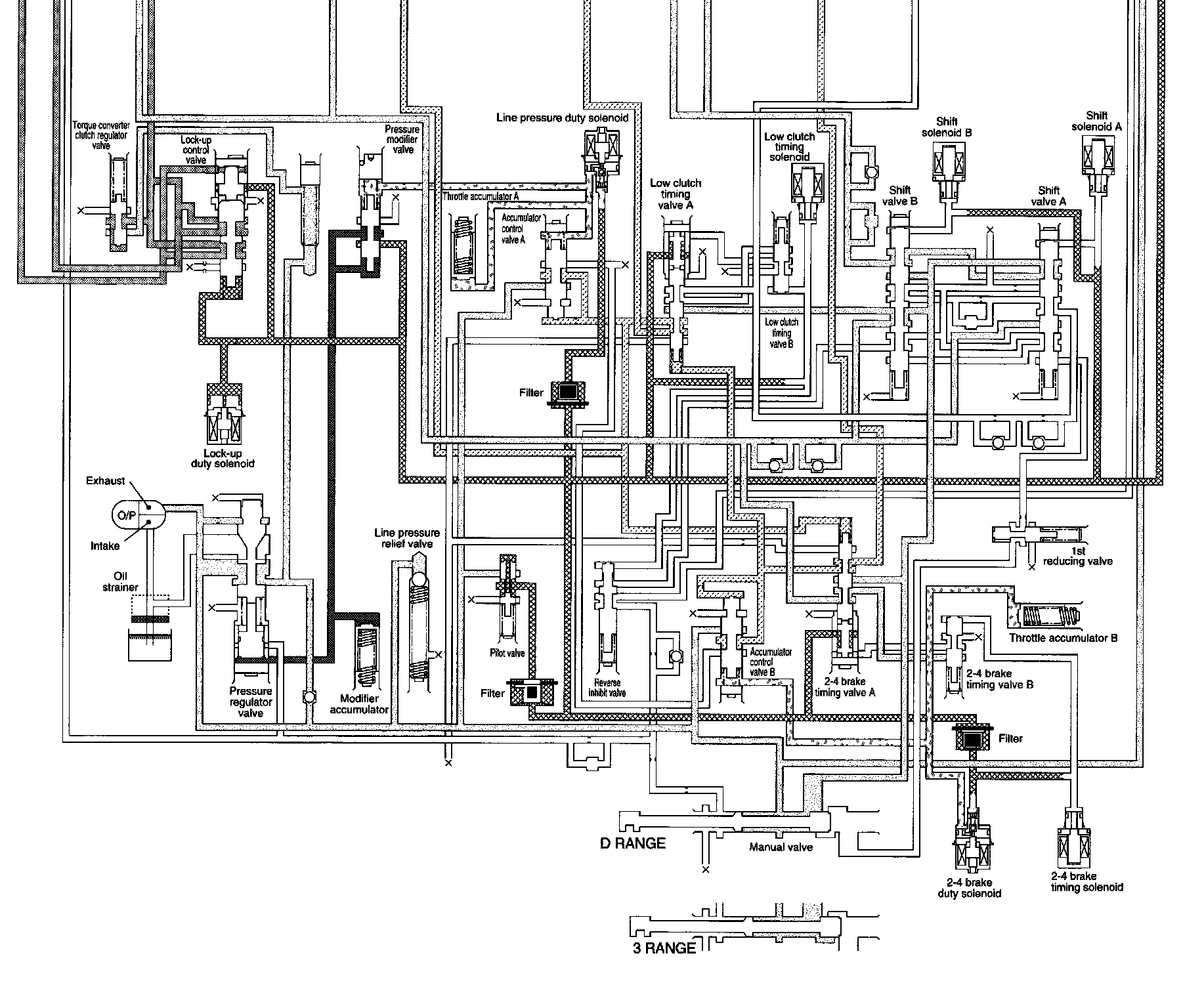

E: THIRD SPEED OF D AND 3 RANGE

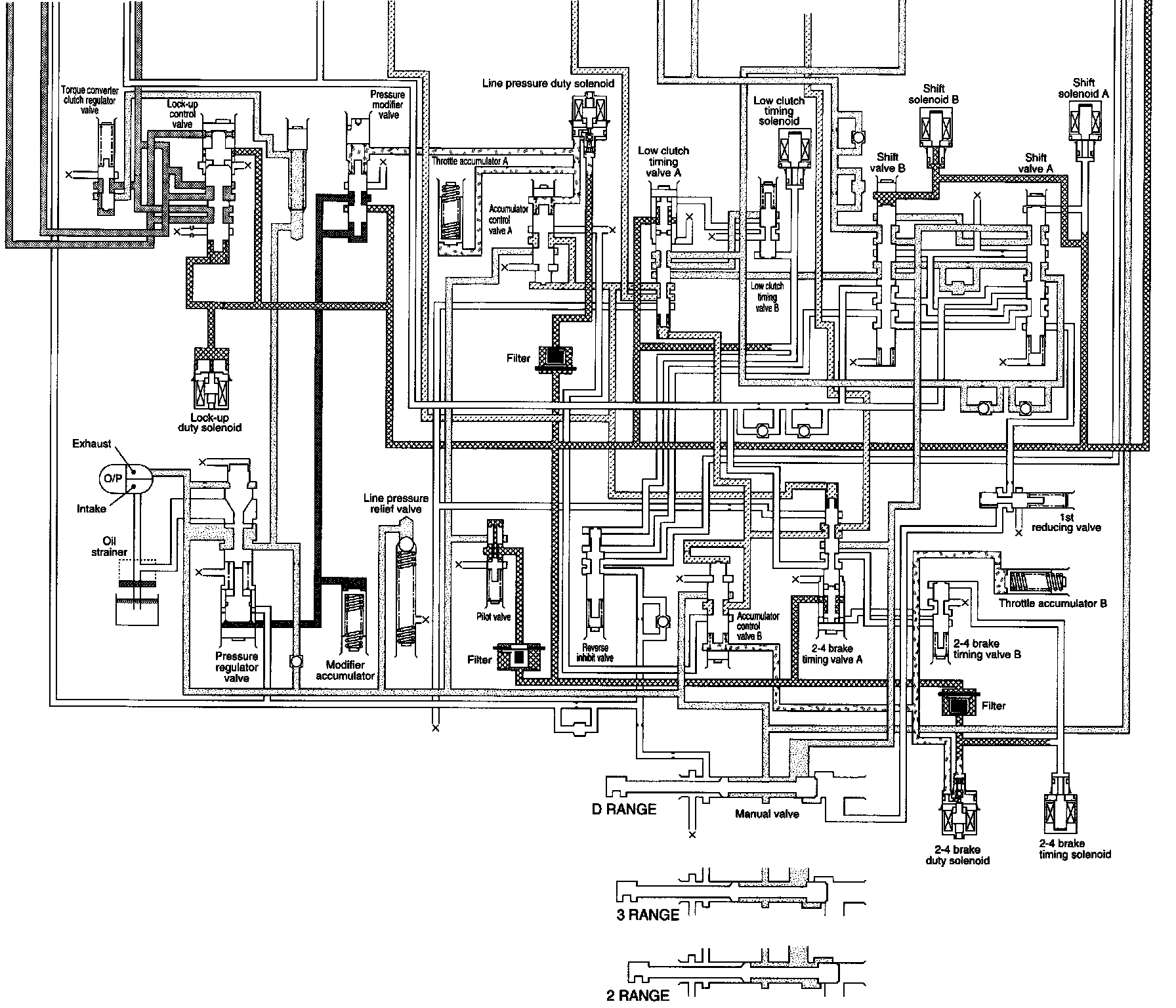

F.: SECOND SPEED OF D, 3 AND 2 RANGE

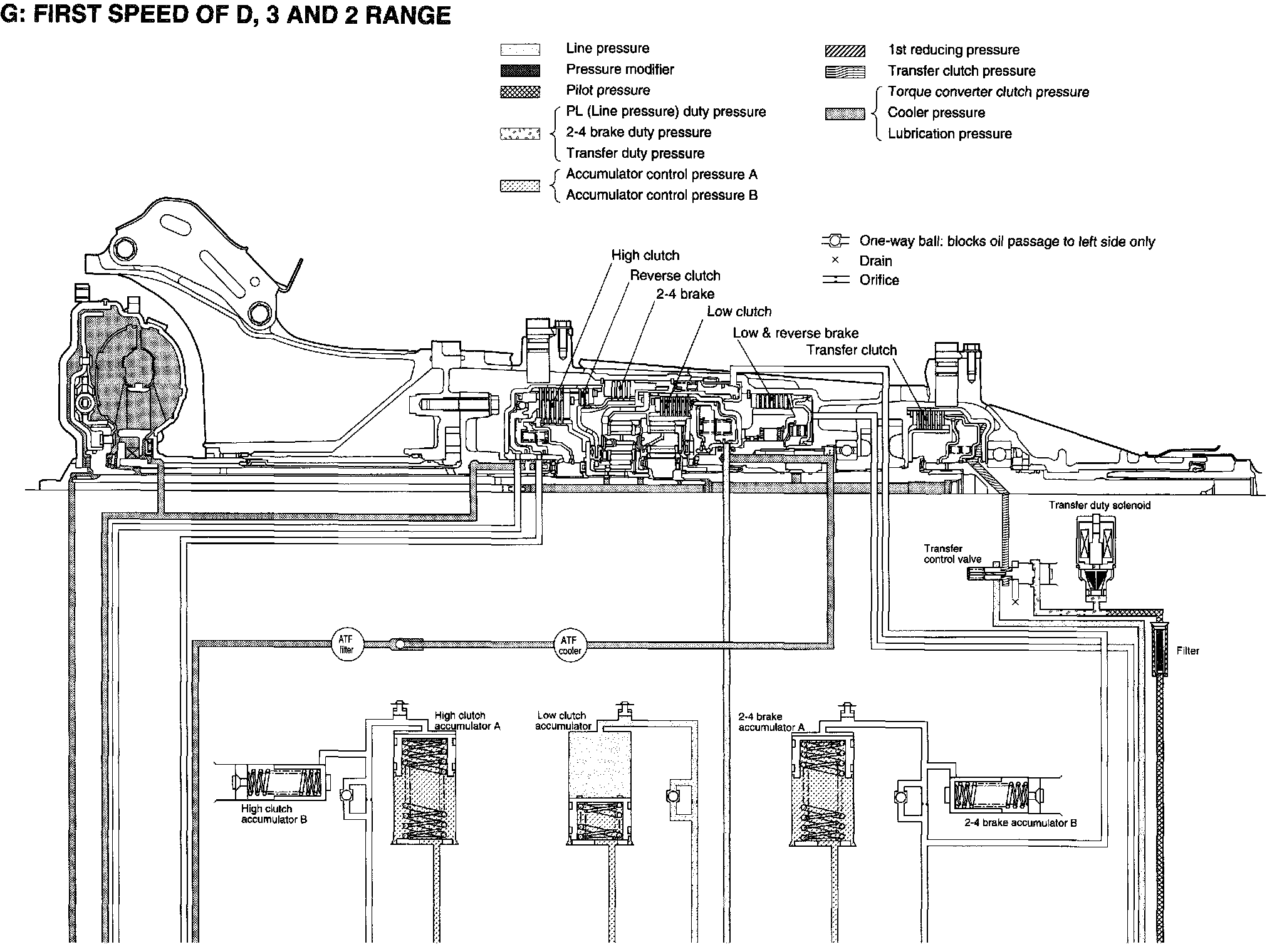

G: FIRST SPEED OF D, 3 AND 2 RANGE

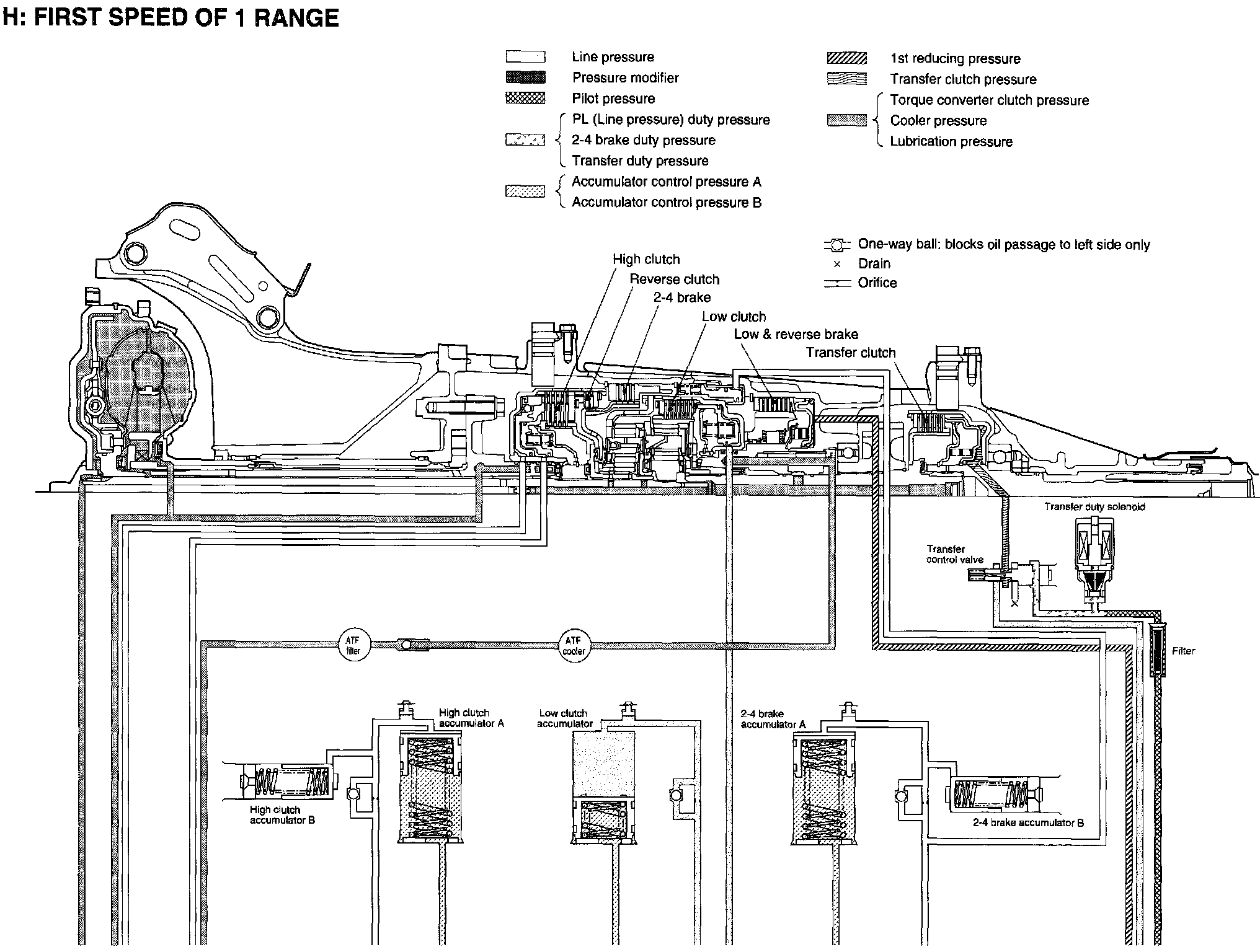

H: FIRST SPEED OF 1 RANGE
