Differential Assembly: Application and ID

A: SPECIFICATIONS


B: IDENTIFICATION





When replacing a rear differential assembly, select the correct one according to the provided table.

CAUTION: Using the different rear differential assembly causes the drive line and tires to "drag" or emit abnormal noise when AWD is selected.

C: ADJUSTING PARTS

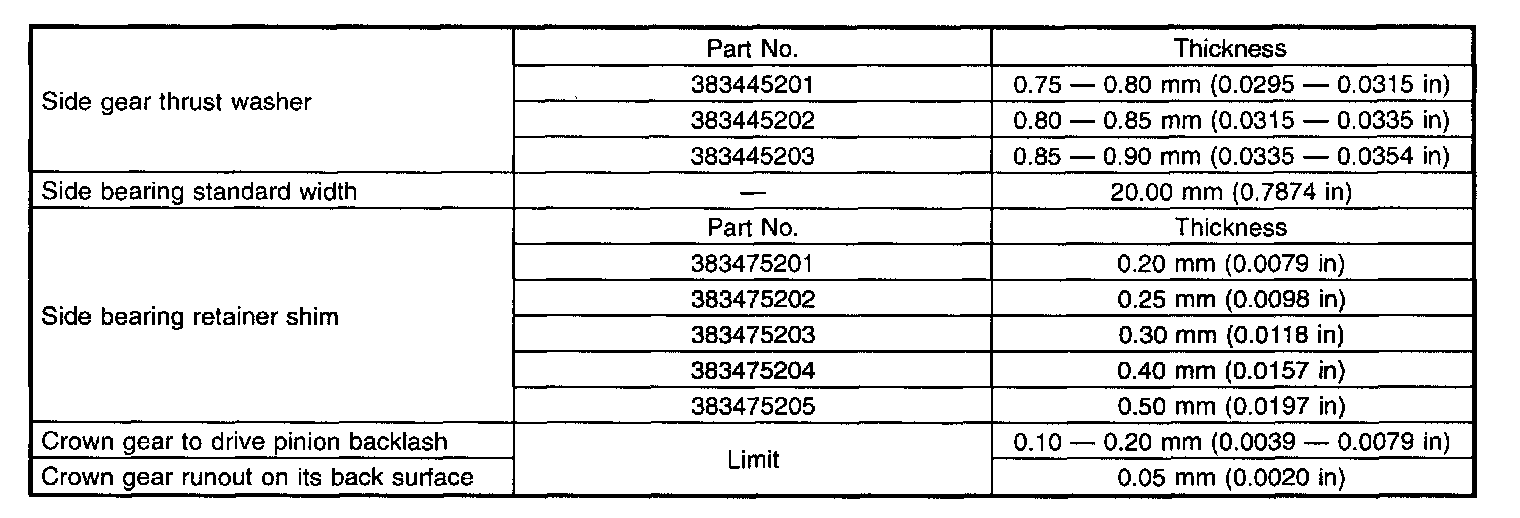

Table: 1 of 2

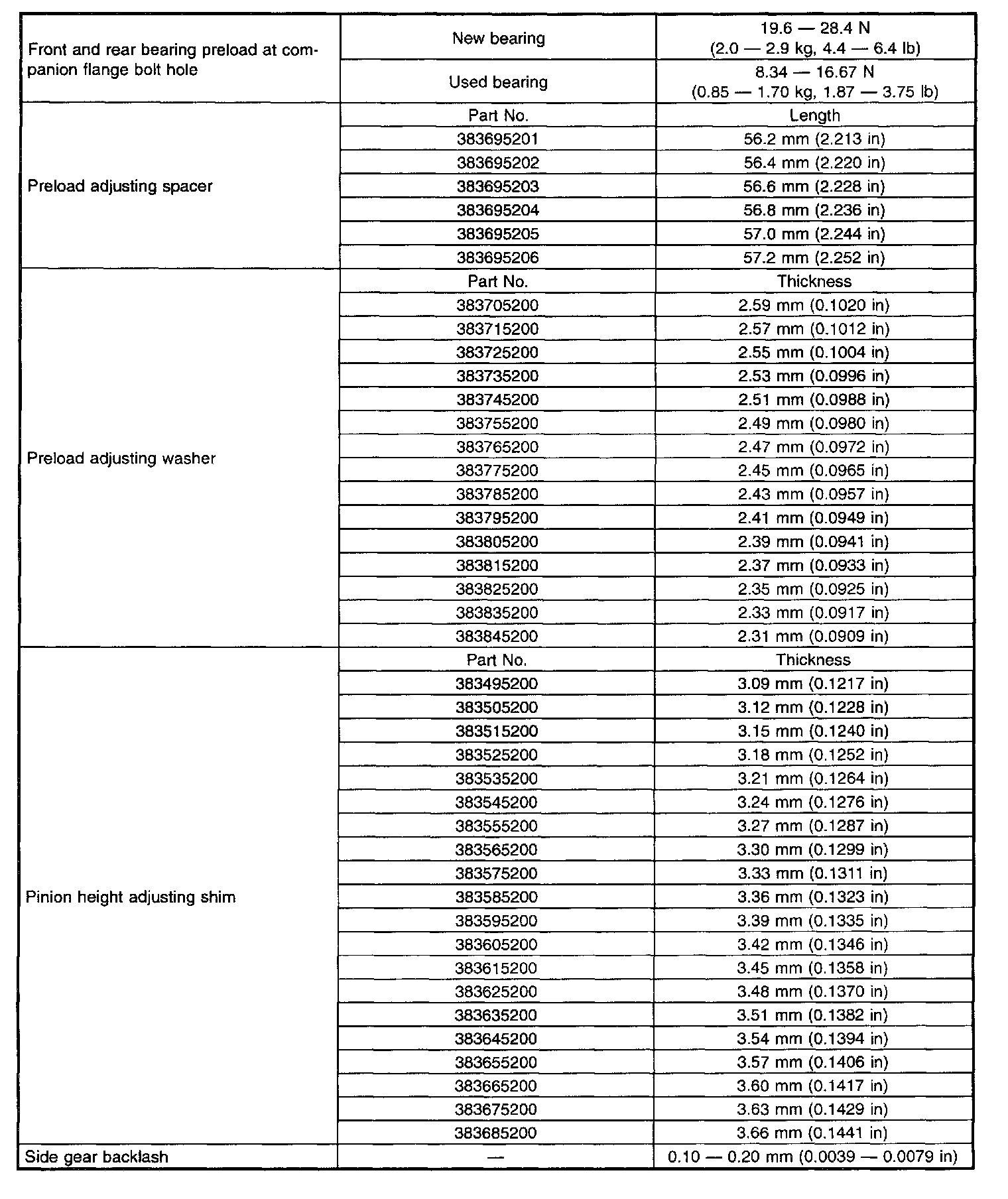

Table: 2 of 2
