Automatic Transmission and Differential
AUTOMATIC TRANSMISSION AND DIFFERENTIAL
1. Torque Converter Clutch
2. Oil Pump

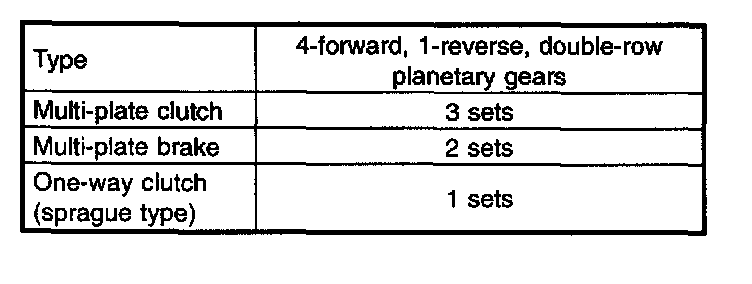

3. Transmission Control Element

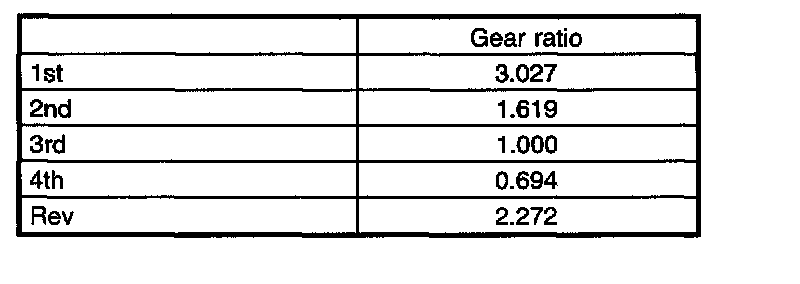

4. Transmission Gear Ratio

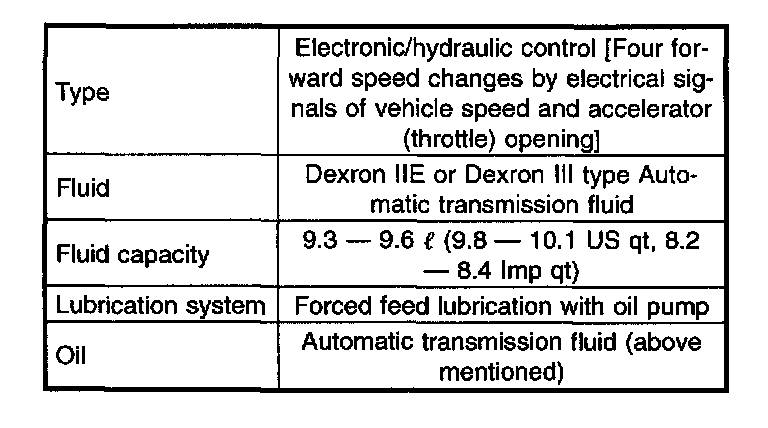

5. Planetary Gear and Plate
6. Selector Position
7. Hydraulic Control and Lubrication

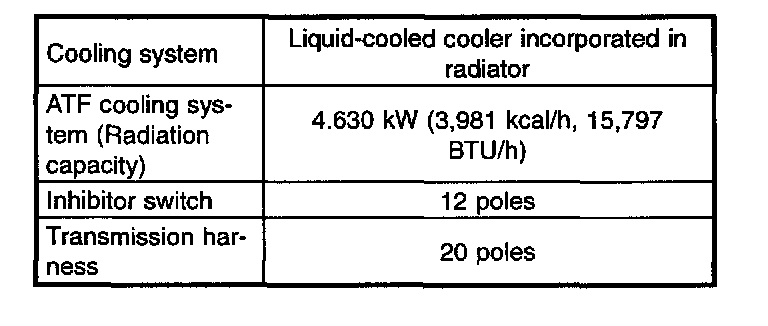

8. Cooling and Harness

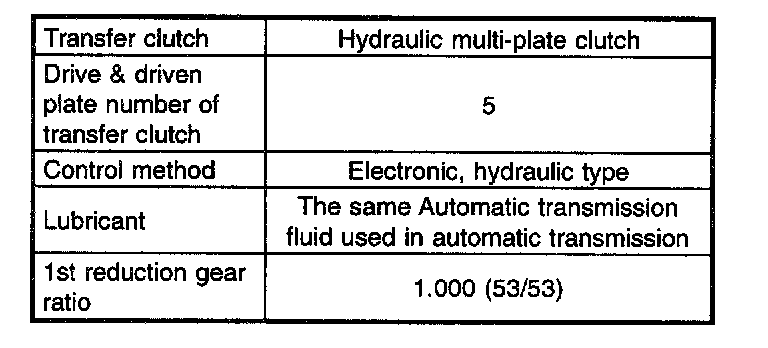

9. Transfer

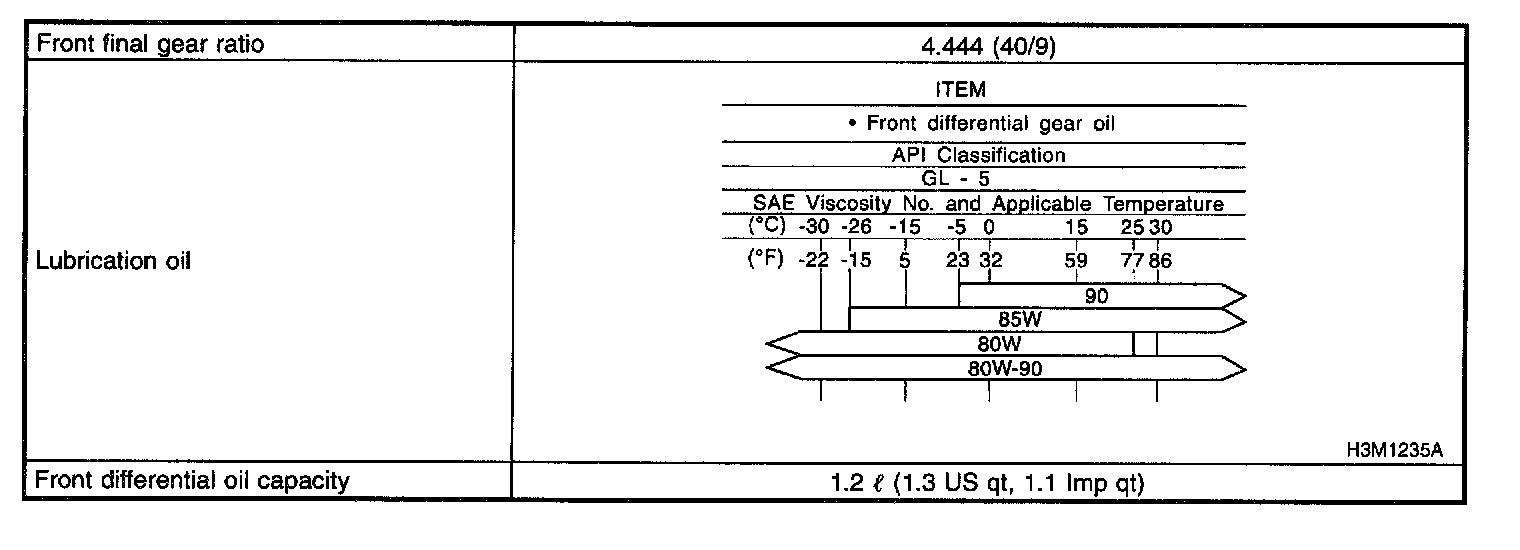

10. Final Reduction
11. Adjusting Parts
Diagram

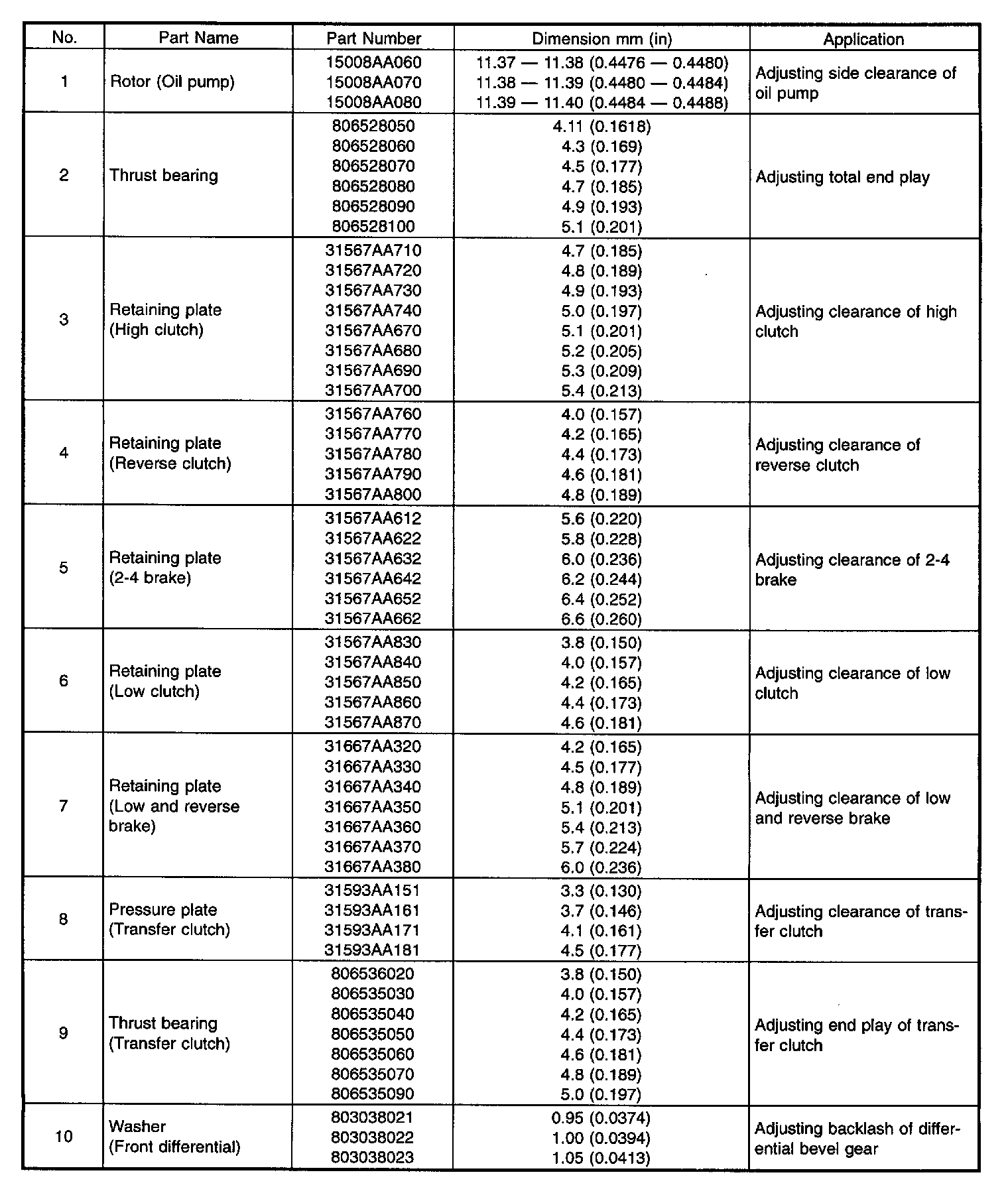

Legend 1 - 10

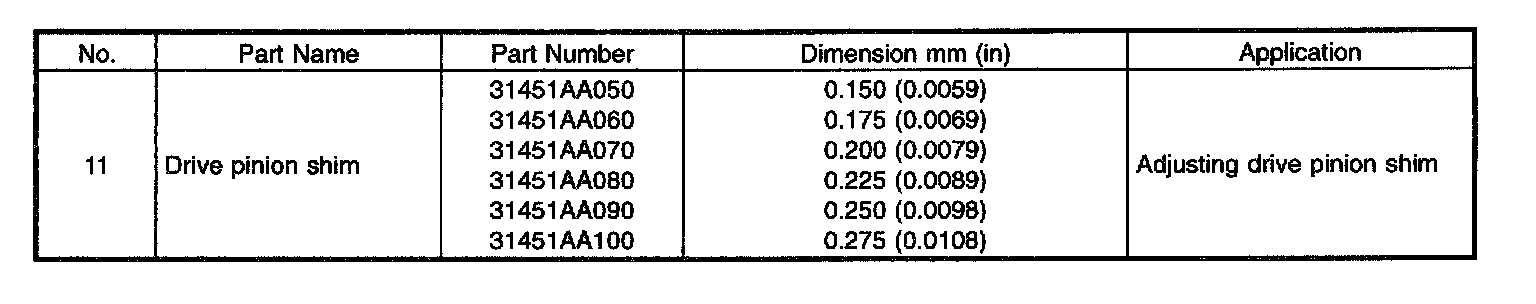

Legend 11
