Combination Meter
Combination MeterCombination Meter (A - USA Model) (B - Canada Model):
WARNING AND INDICATOR LIGHTS
A For USA Model
B For CANADA Model
1. ABS warning light
This light illuminates when a fault occurs in any electrical component of the ABS (Anti-lock Brake System).
2. AIR BAG system warning light
This light illuminates when a fault occurs in the airbag system.
3. Brake fluid level warning / parking brake indicator light
This light illuminates when the fluid level in the brake reservoir tank lowers below the specified level and/or when the parking brake is applied.
4. IAT oil temperature warning light
This light illuminates when the ATF temperature exceeds 150 °C (302 °F); it blinks when a fault occurs in the IAT control system.
5. Charge indicator light
This light illuminates when a fault occurs in the charging system while the engine is running.
6. CHECK ENGINE warning light
This light illuminates when a fault occurs in the MFI (Multiple point Fuel Injection) system.
7. Oil pressure warning light
This light illuminates when the engine oil pressure decreases below 14.7 kPa (0.15 kgf/sq.cm, 2.1 psi).
If everything is normal, the warning and indicator lights should be ON or OFF as shown according to ignition switch positions.

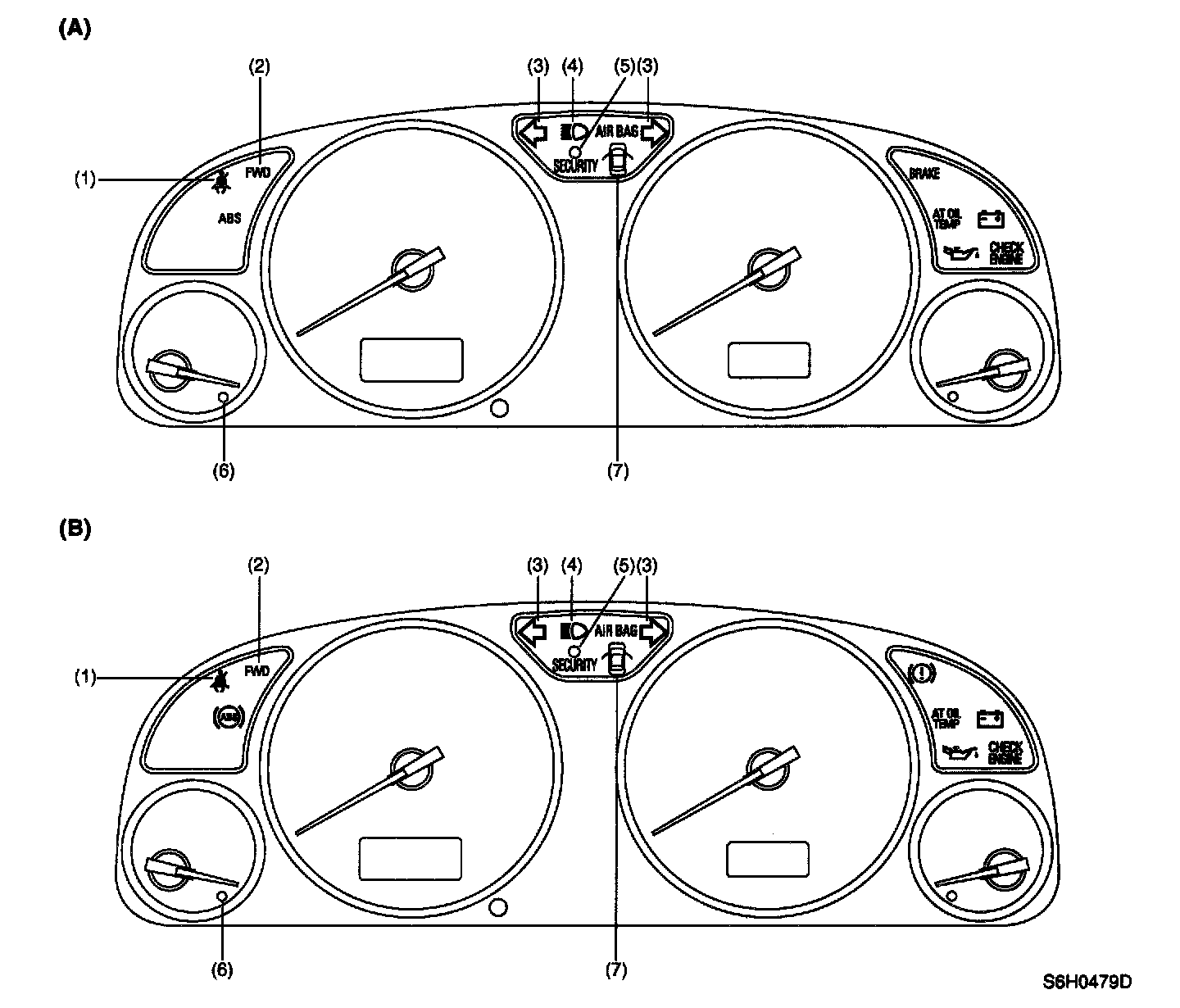

(A - USA Model) (B - Canada Model):
TELLTALE (GRAPHIC MONITOR)
A For USA Model
B For CANADA Model
1. Seat belt warning light
This light stays illuminated for about 6 seconds after the ignition switch has been turned ON.
2. FWD indicator light
This light illuminates when the drive mode is changed from AWD to FWD (with the fuse installed in the FWD switch).
3. Turn signal indicator light
This light blinks in unison with the corresponding turn signal lights when the turn signal switch is operated.
4. Headlight beam indicator light
This light illuminates when the headlights are in the high-beam position.
5. Security indicator light
This light illuminates when the security system is armed.
6. Low fuel warning light
This light illuminates when the quantity of the fuel remaining in the fuel tank has decreased to 9.0 liters (2.3 US gal, 1.9 Imp gal) or smaller.
7. Door open warning light
This light illuminated when one or more doors and/or rear gate are not completely closed.
If everything is normal, the telltales should be ON, OFF or in other states as shown according to ignition switch positions.
