Throttle Body
THROTTLE BODYCable Free Play:

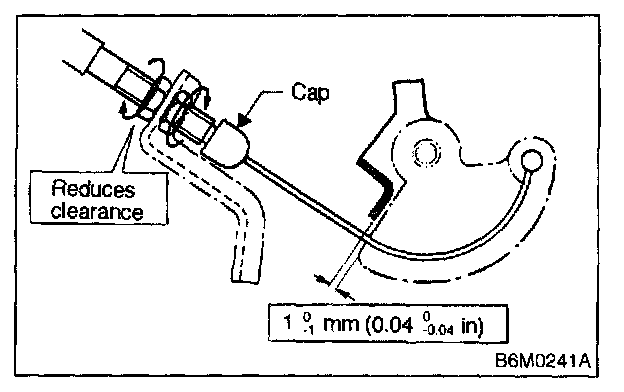

Throttle cam-to-lever clearance: 0 - 1 mm (0 - 0.04 in)
Tightening Torque:
Throttle body: 22 N.m (2.2 kgf-m, 15.9 ft-lb)
Air cleaner case: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)
Throttle cam-to-lever clearance: 0 - 1 mm (0 - 0.04 in)
Tightening Torque:
Throttle body: 22 N.m (2.2 kgf-m, 15.9 ft-lb)
Air cleaner case: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)
