Driveshaft/Drive Axle System

DRIVE SHAFT SYSTEM

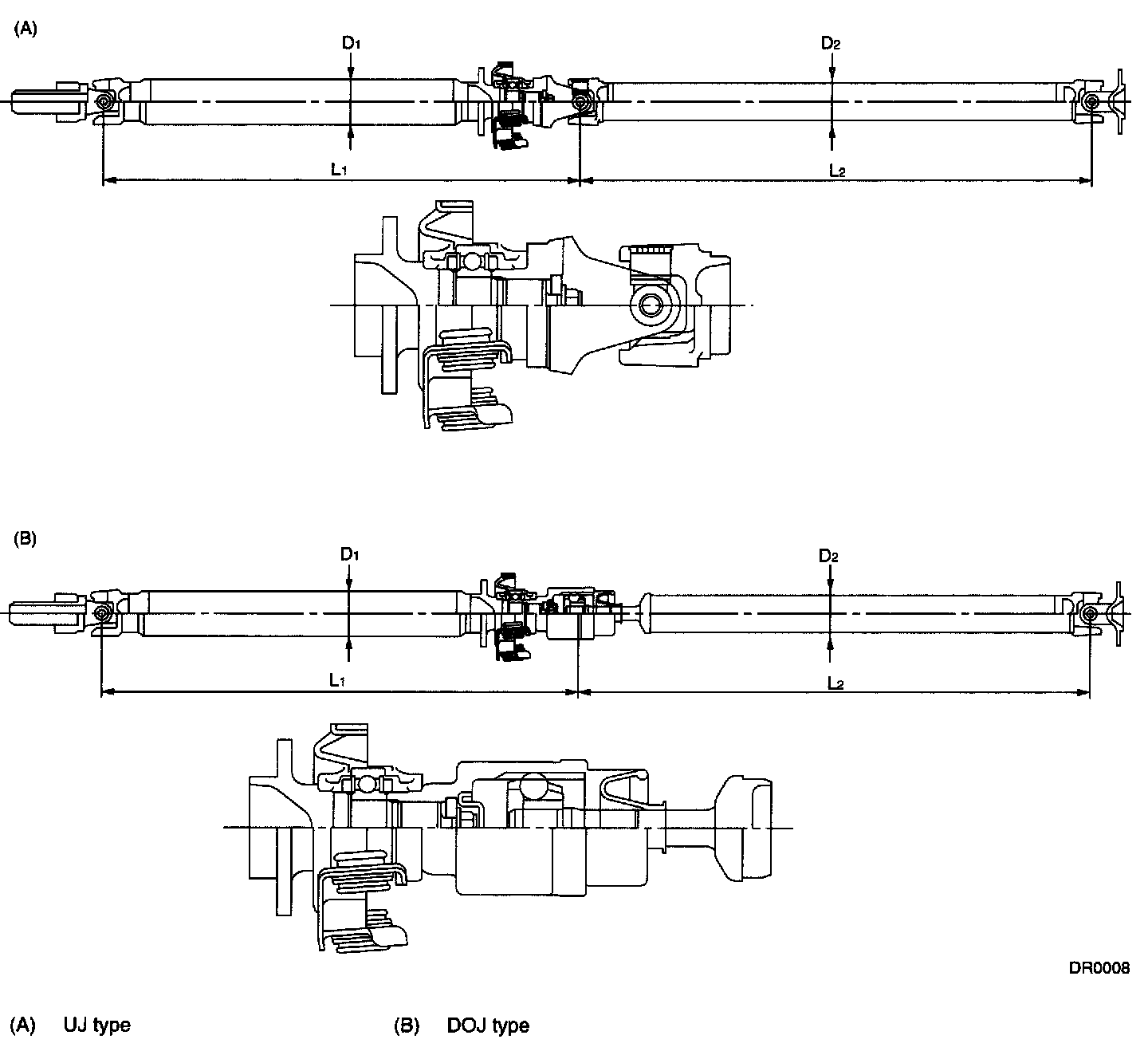

PROPELLER SHAFT

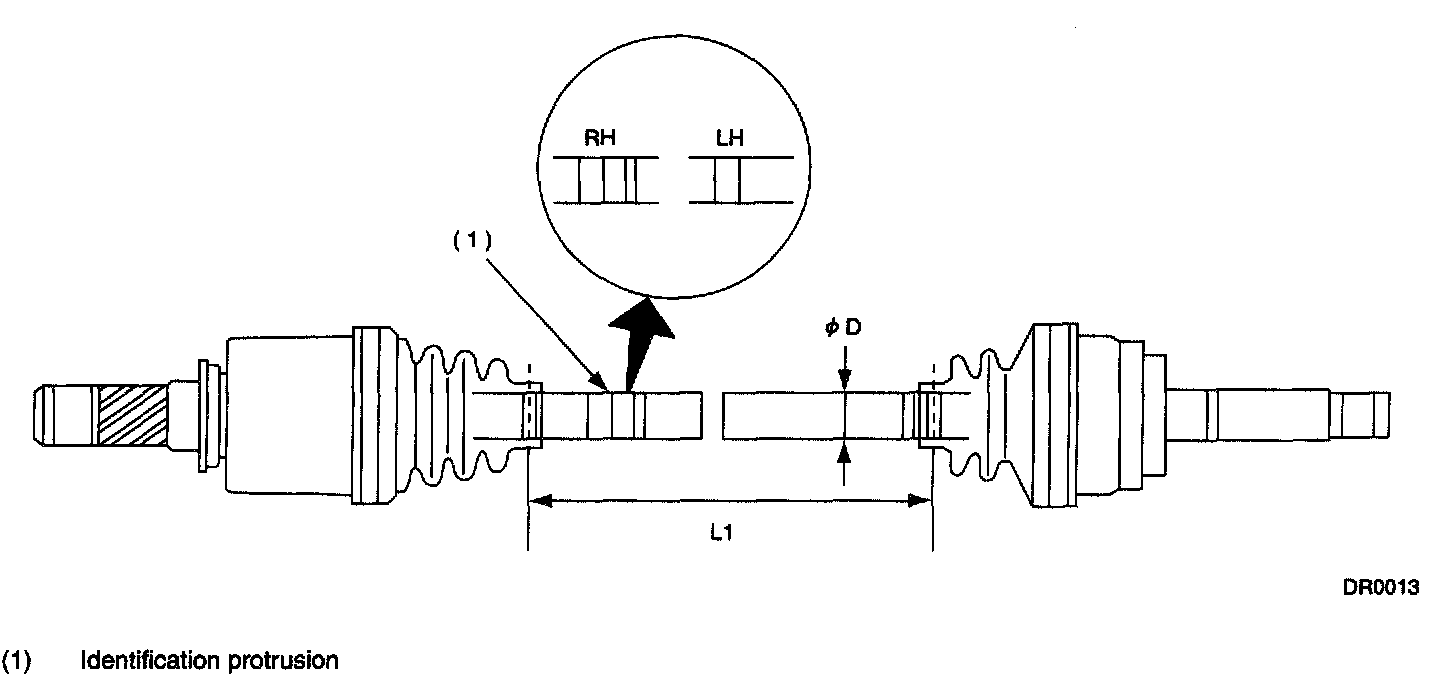

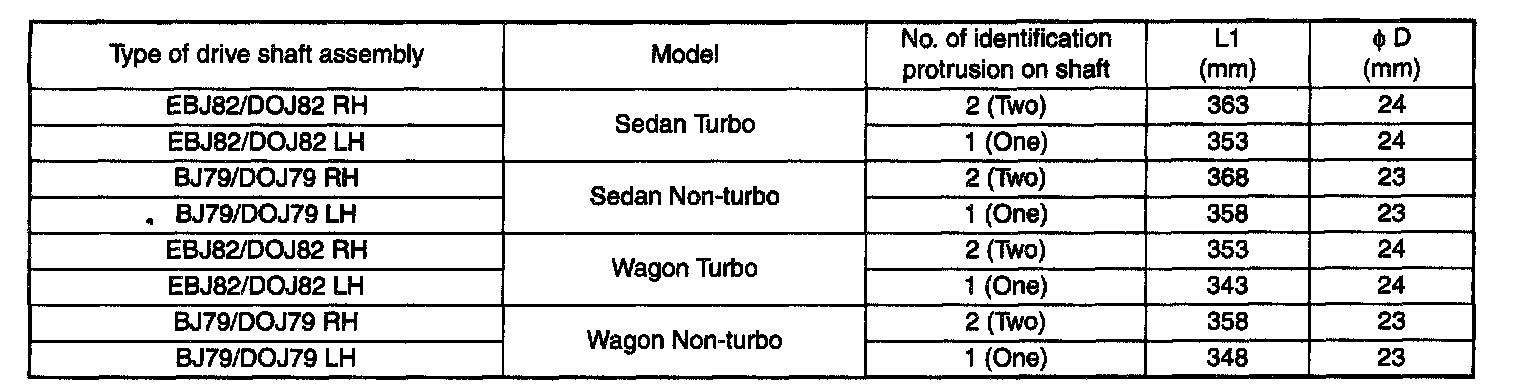

FRONT DRIVE SHAFT ASSEMBLY

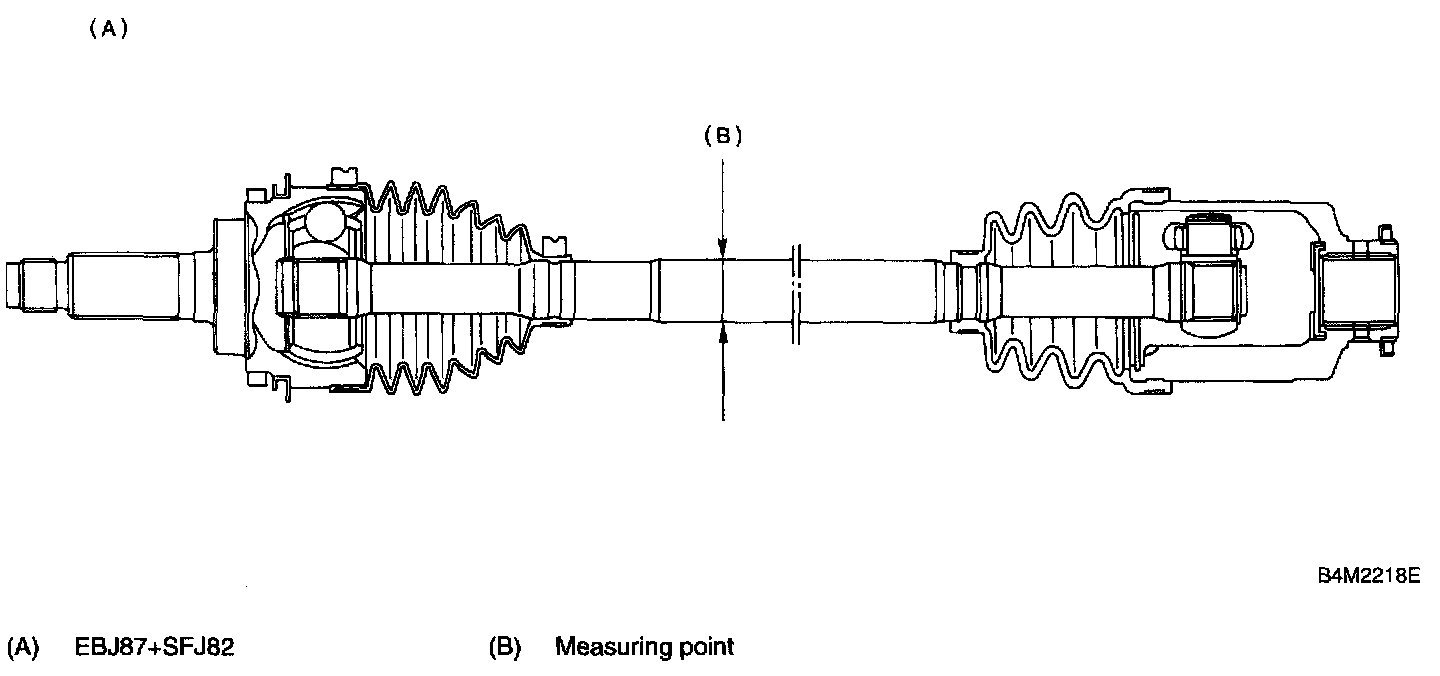

REAR DRIVE SHAFT ASSEMBLY

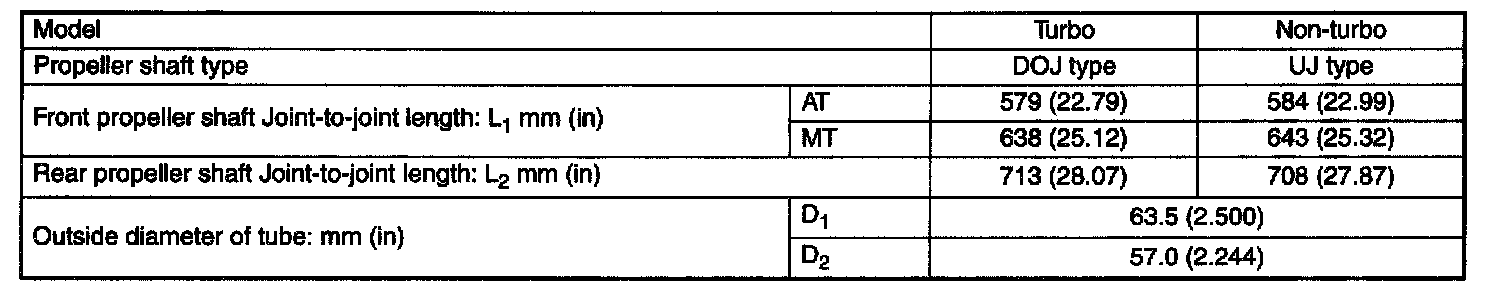

PROPELLER SHAFT





FRONT AXLE





REAR AXLE
