Wiring Diagrams

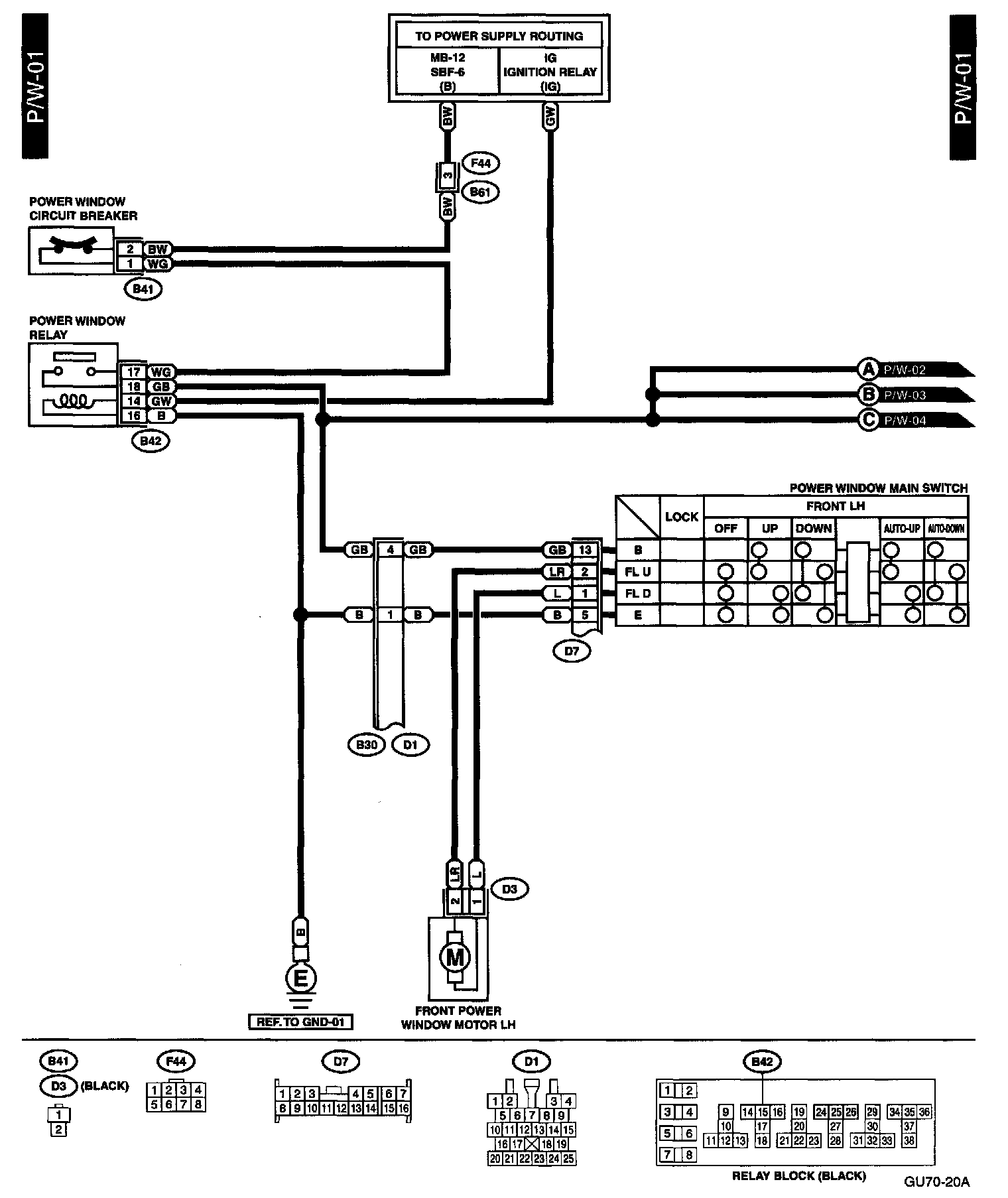

P/W-01 - Power Window System:

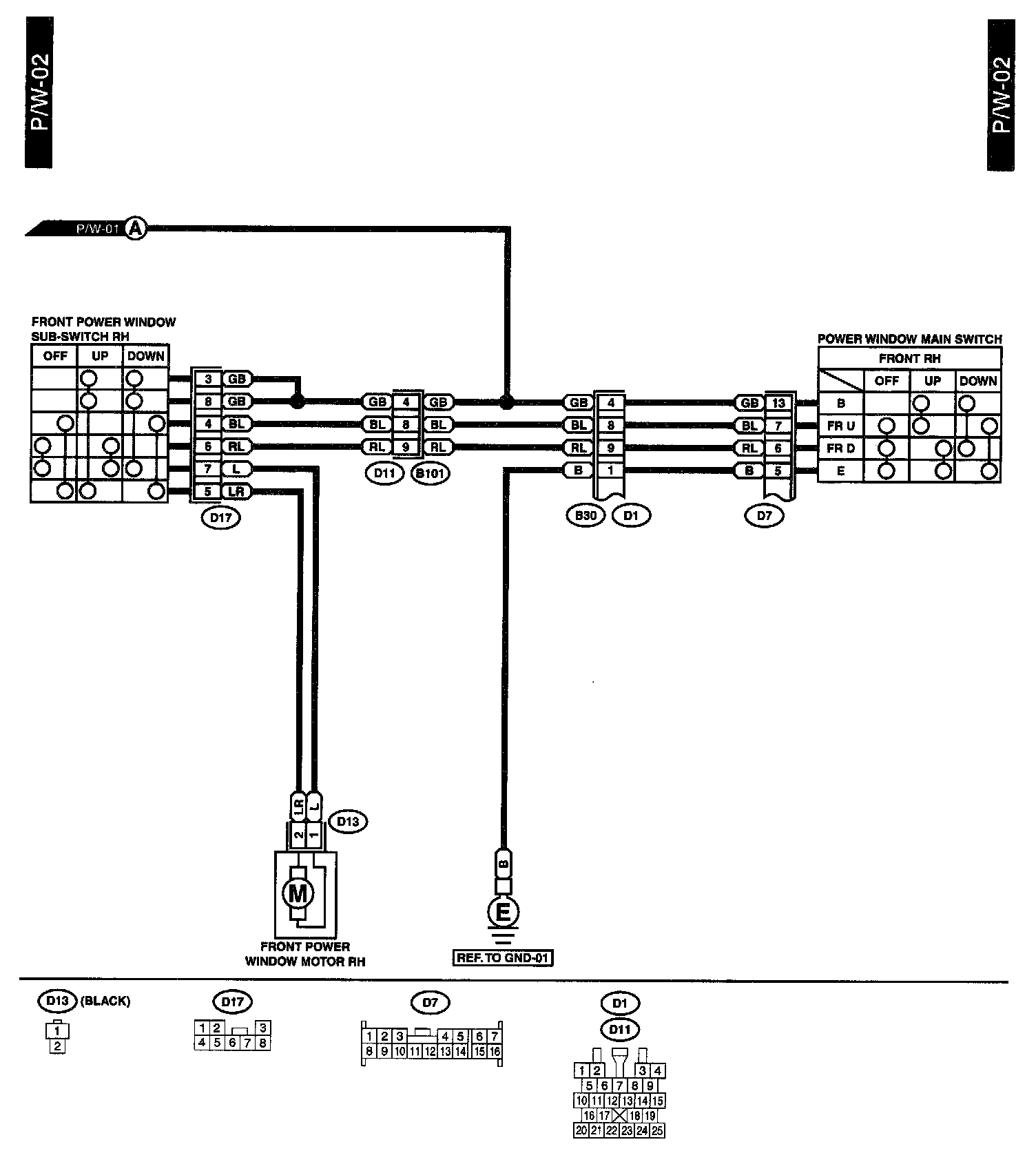

P/W-02 - Power Window System:

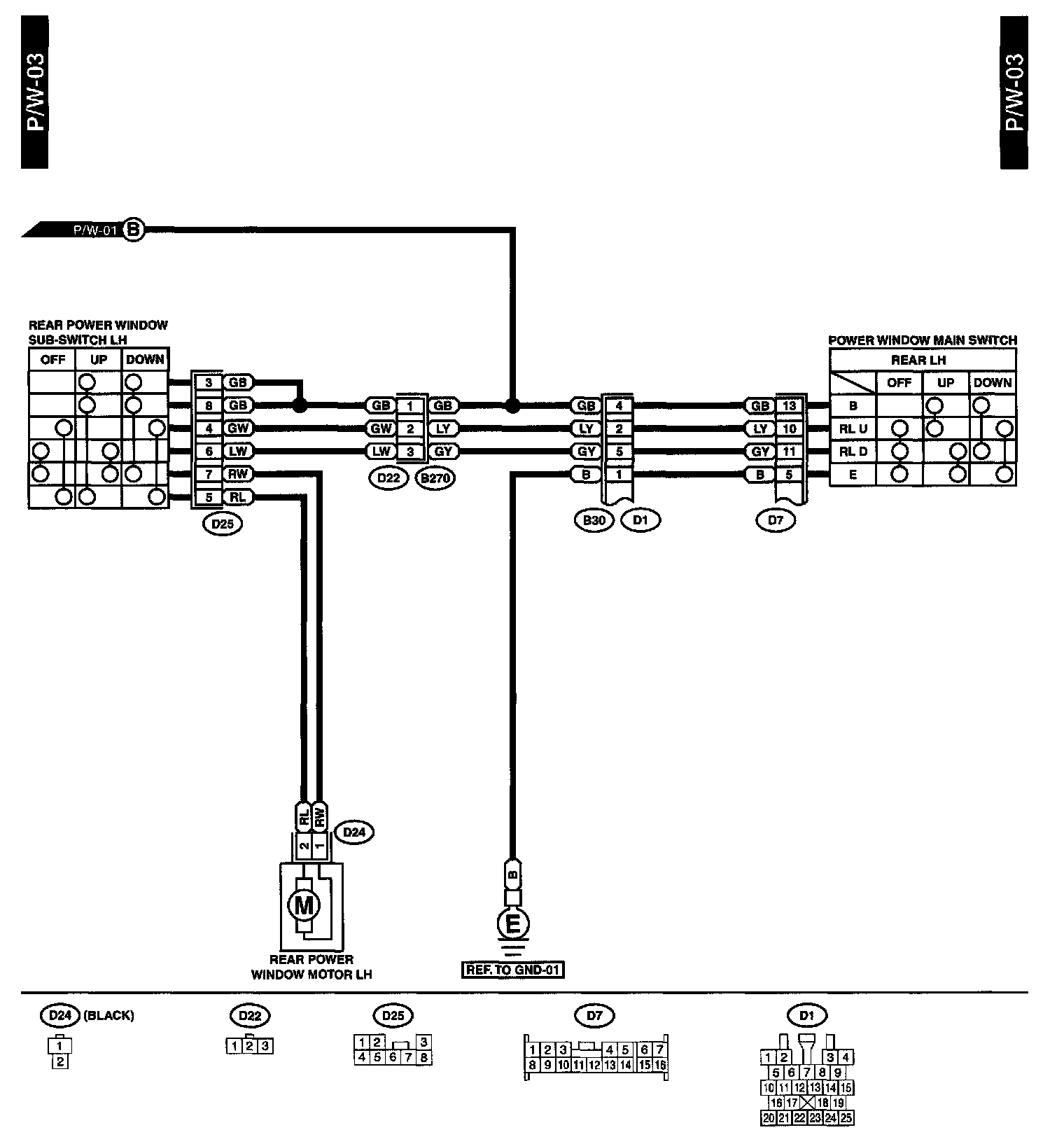

P/W-03 - Power Window System:




P/W-04 - Power Window System:
