Shift Interlock: Testing and Inspection
3. AT Shift Lock System

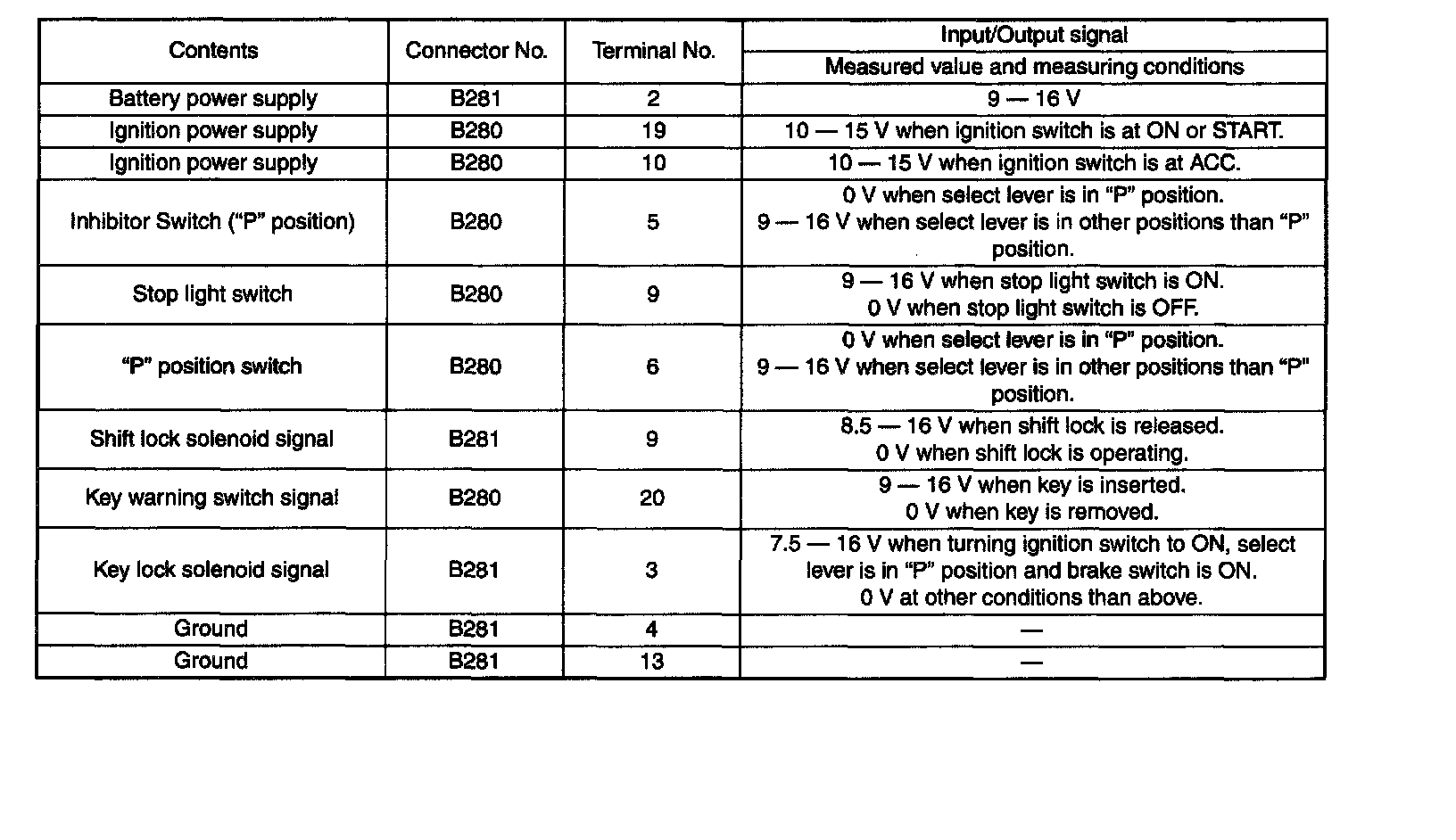

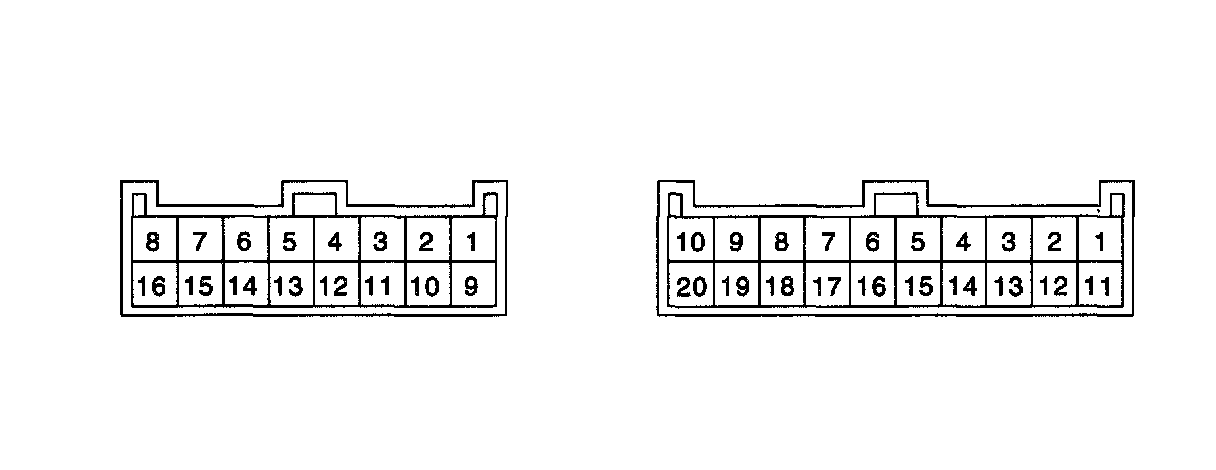

A: ELECTRICAL SPECIFICATION
B: SCHEMATIC

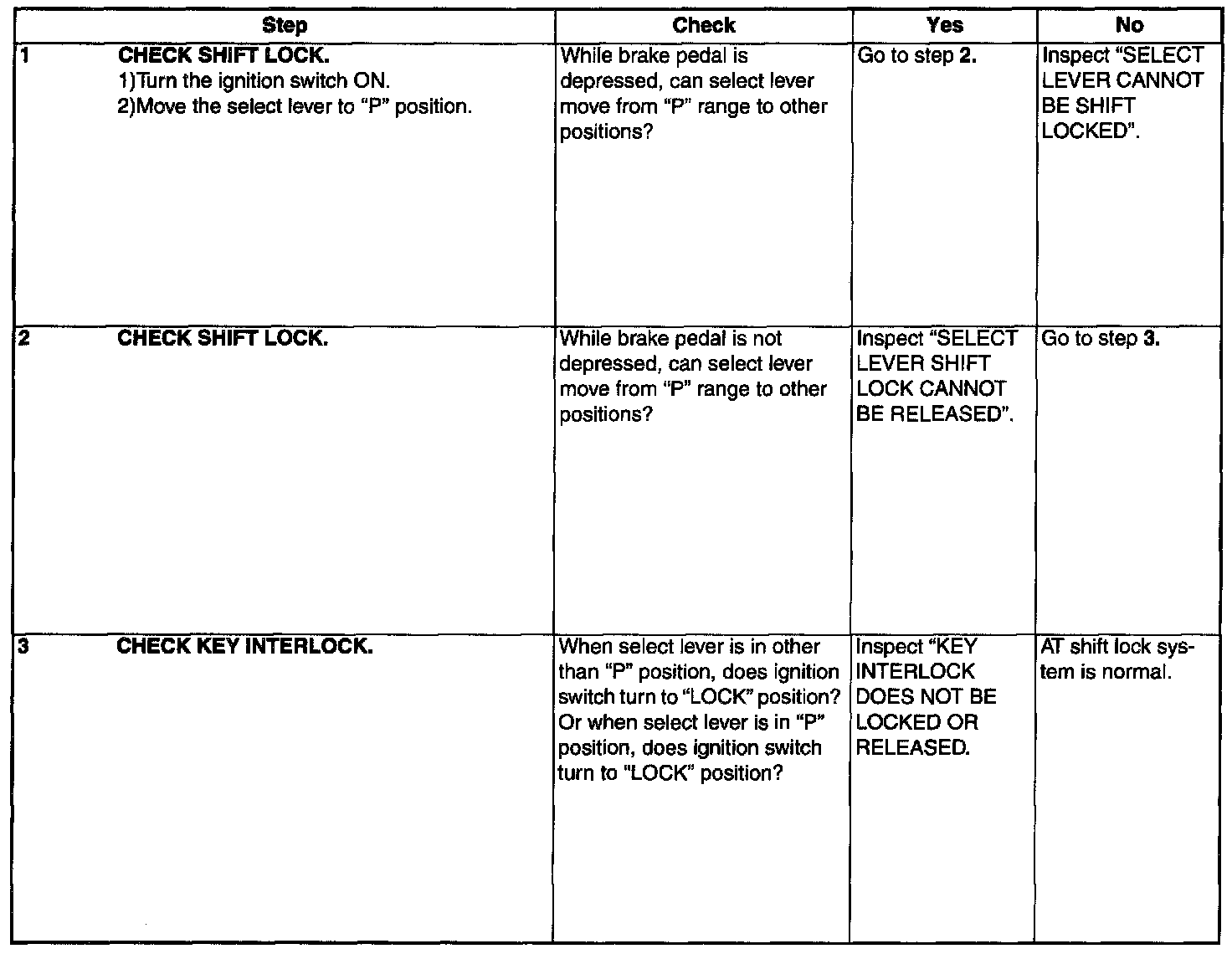

C: INSPECTION

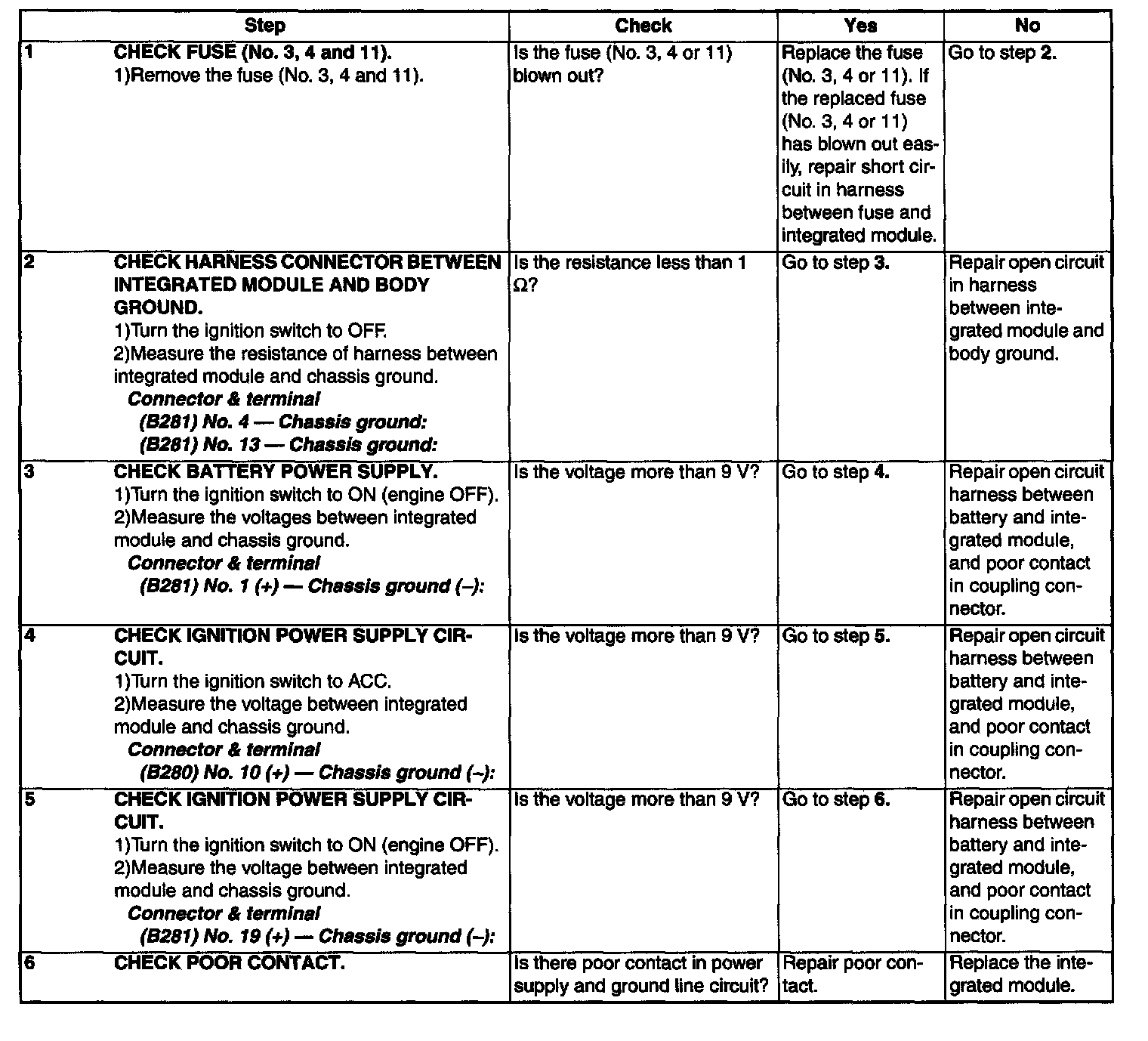

1. INTEGRATED MODULE POWER SUPPLY AND GROUND LINE

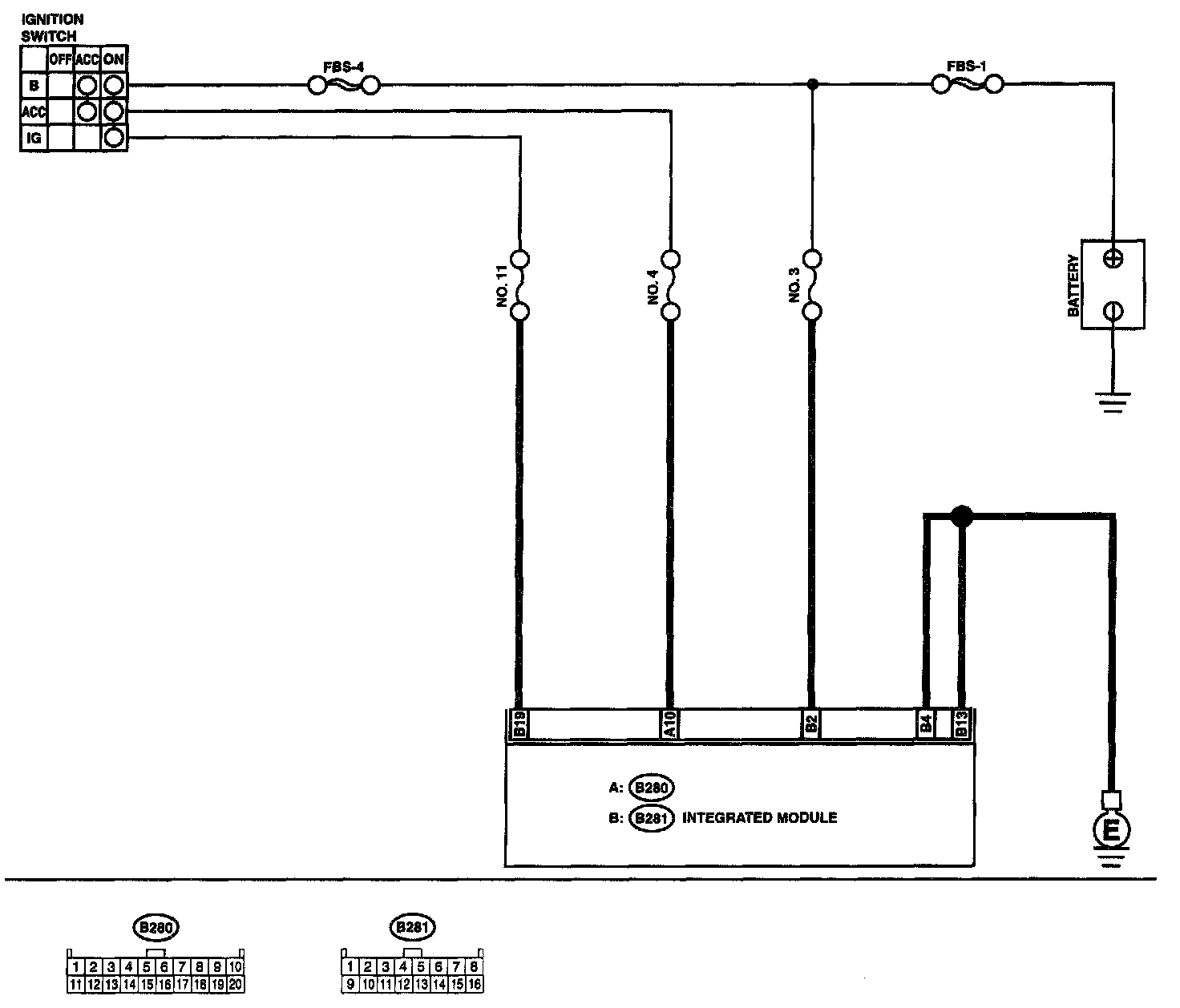

WIRING DIAGRAM

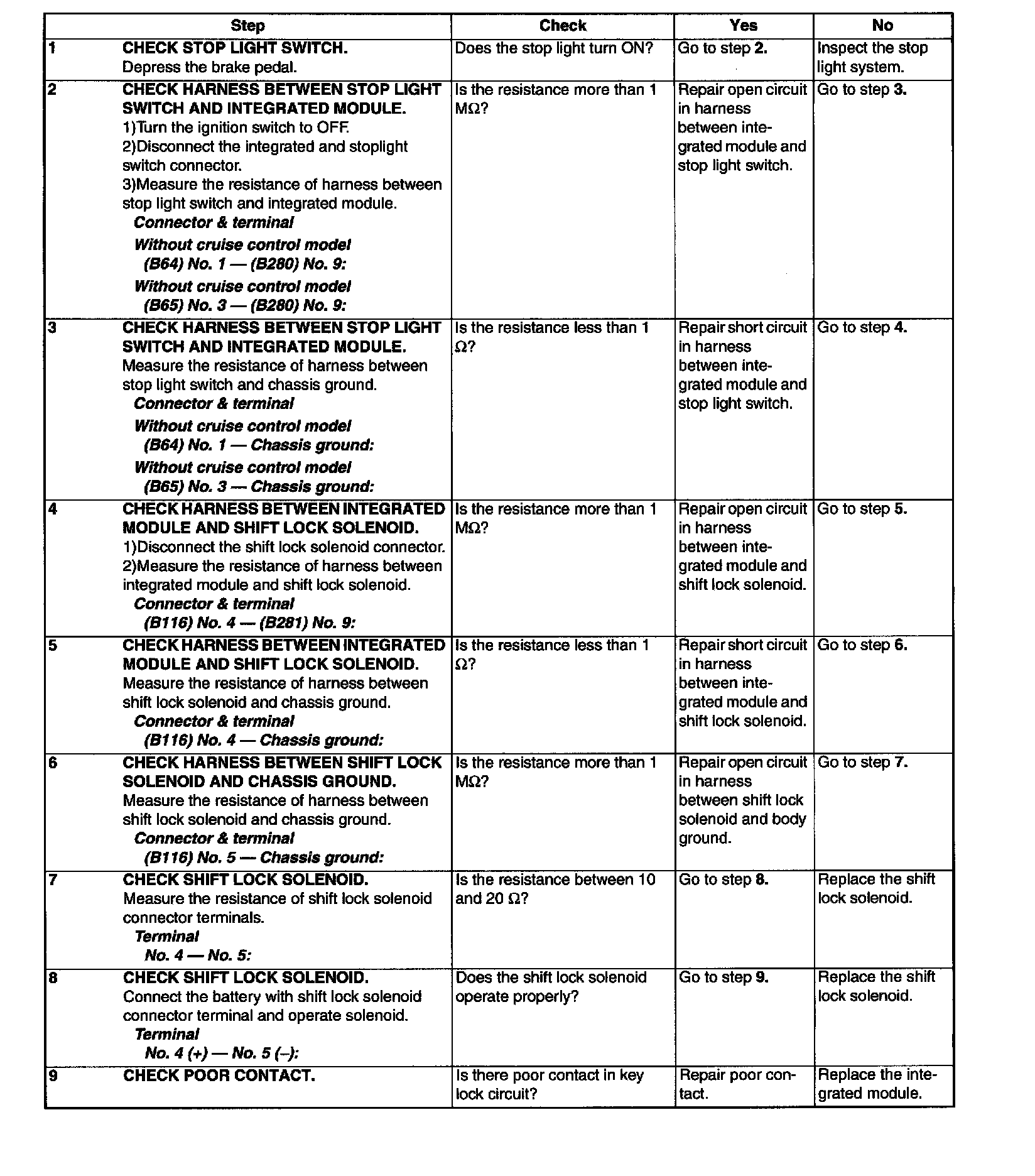

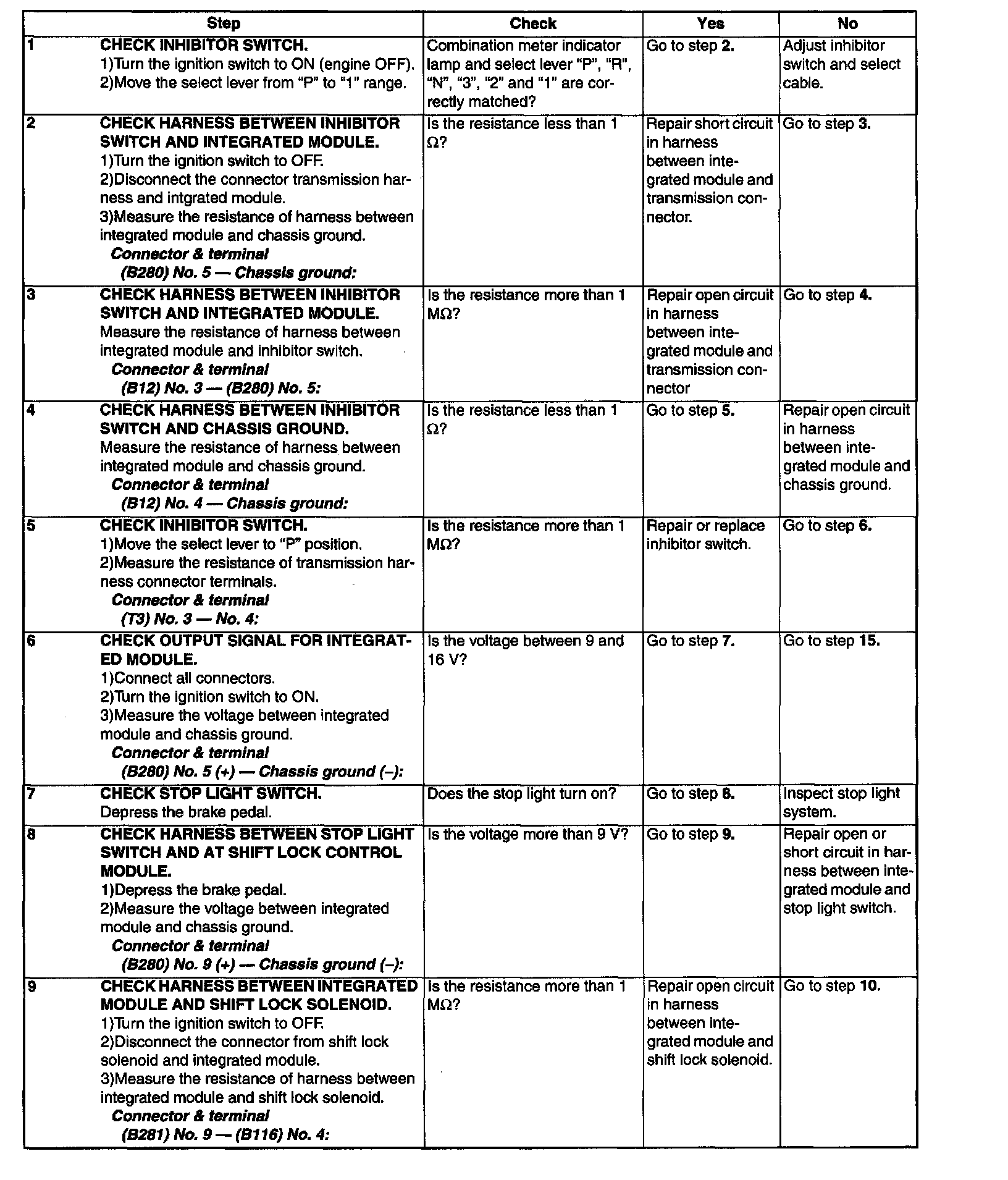

2. SELECT LEVER CANNOT BE SHIFT LOCKED
WIRING DIAGRAM

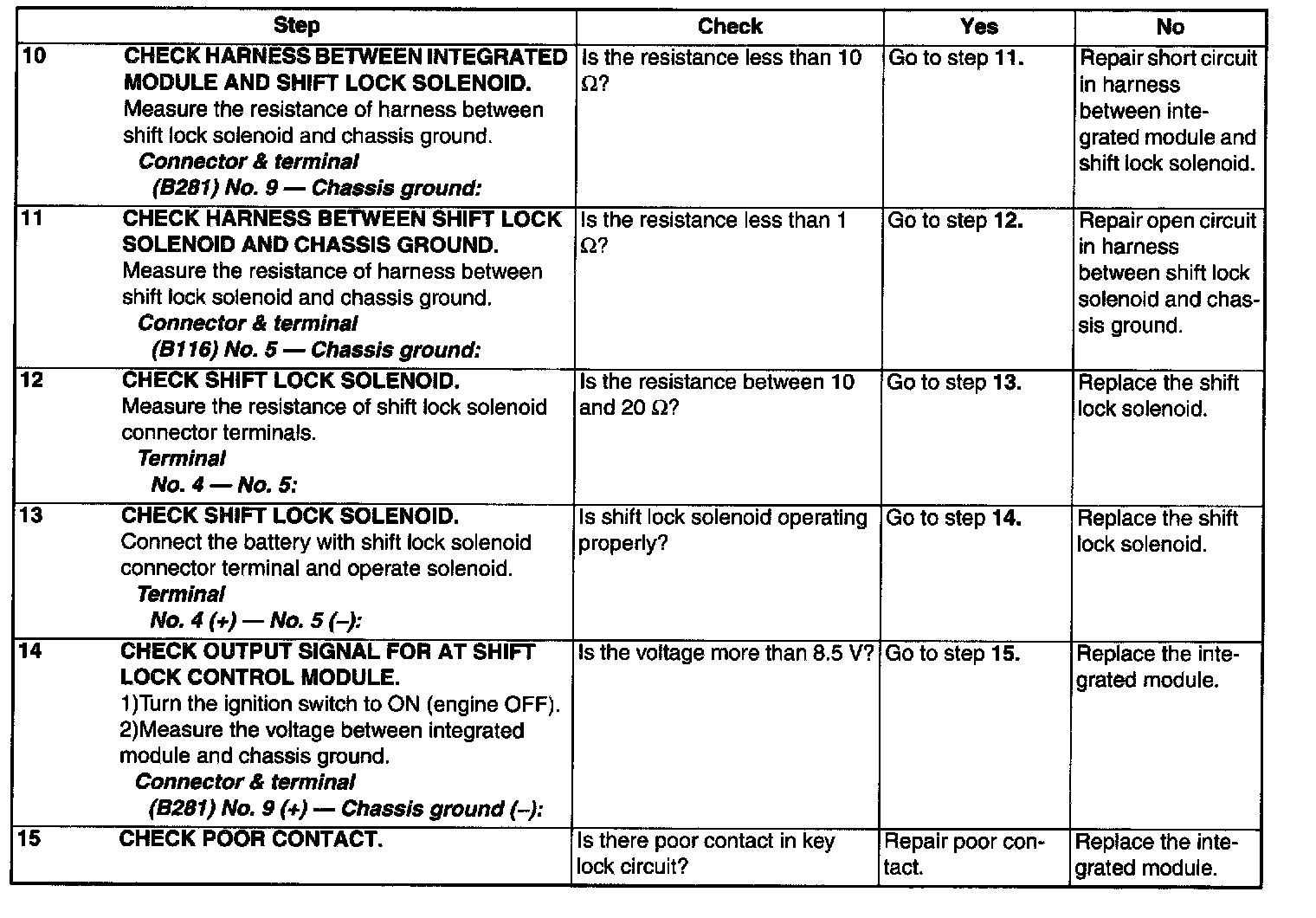

3. SELECT LEVER SHIFT LOCK CANNOT BE RELEASED
WIRING DIAGRAM

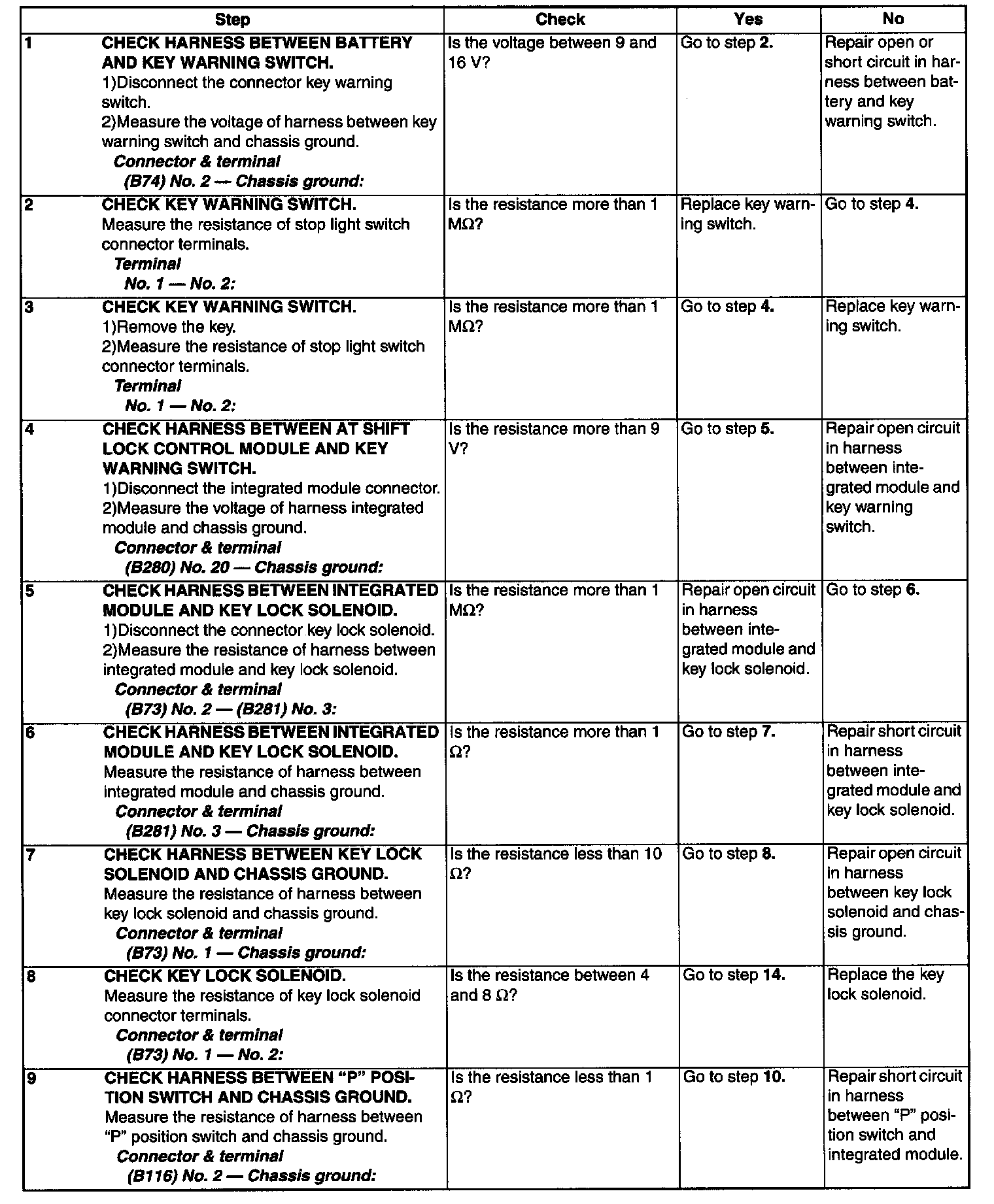

4. KEY INTERLOCK DOES NOT LOCK OR RELEASE

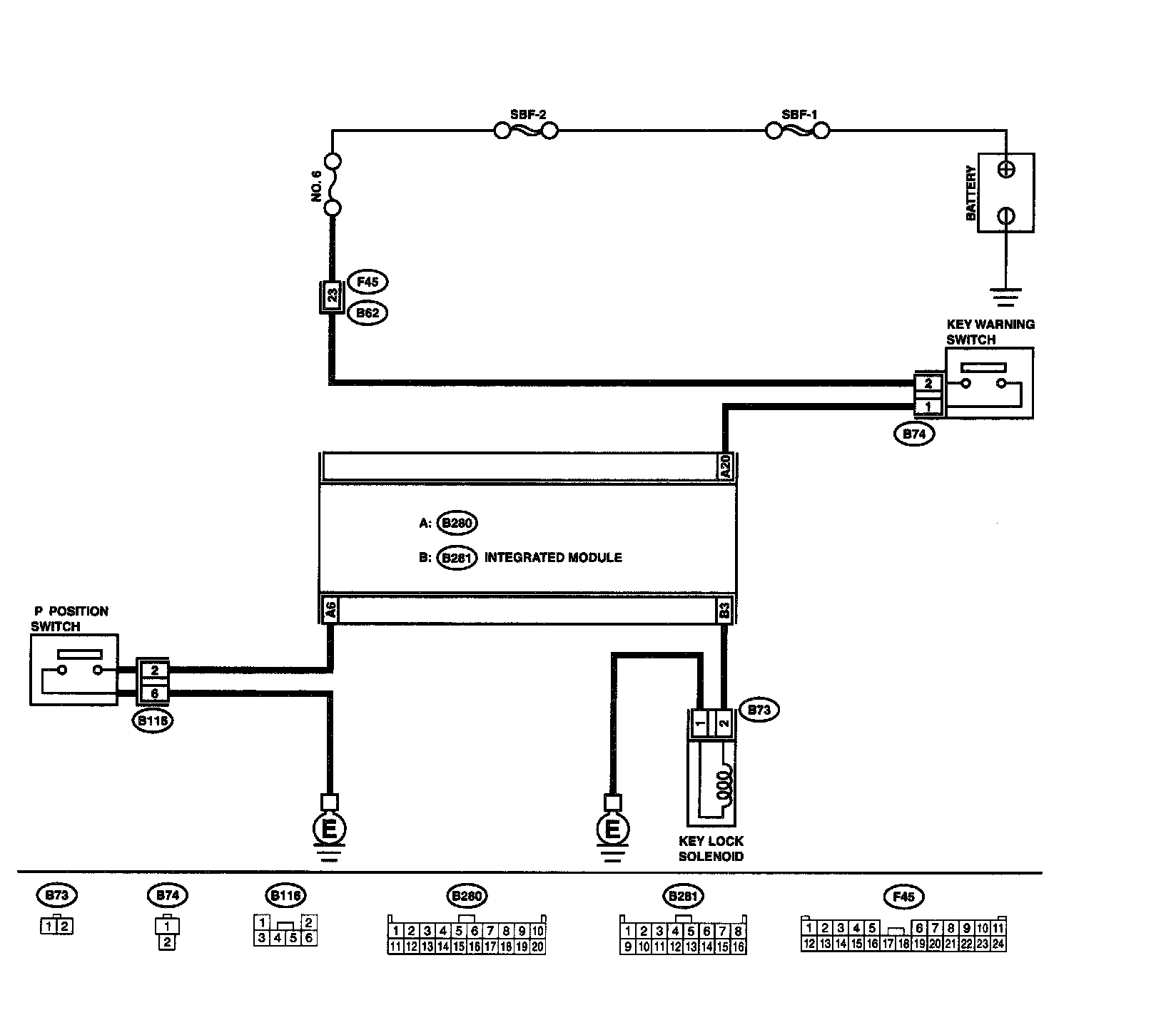

WIRING DIAGRAM
