Impreza Outback Sport AWD F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Clutch
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures
A: INSPECTION
1.

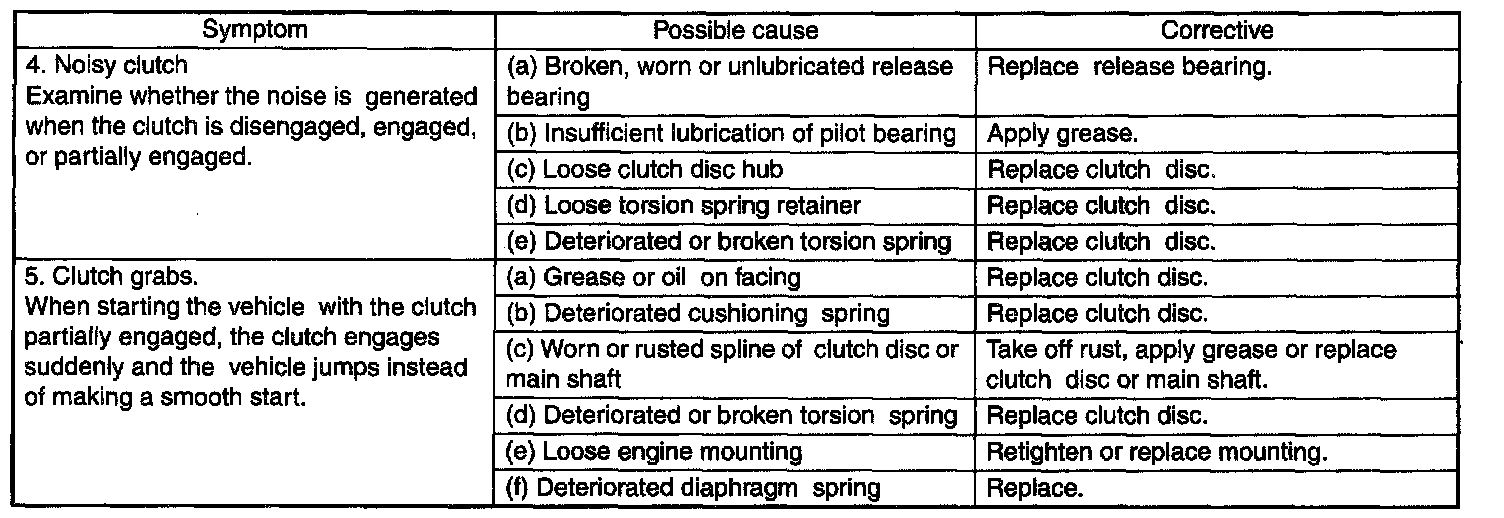

CLUTCH
2.
CLUTCH PEDAL
3.

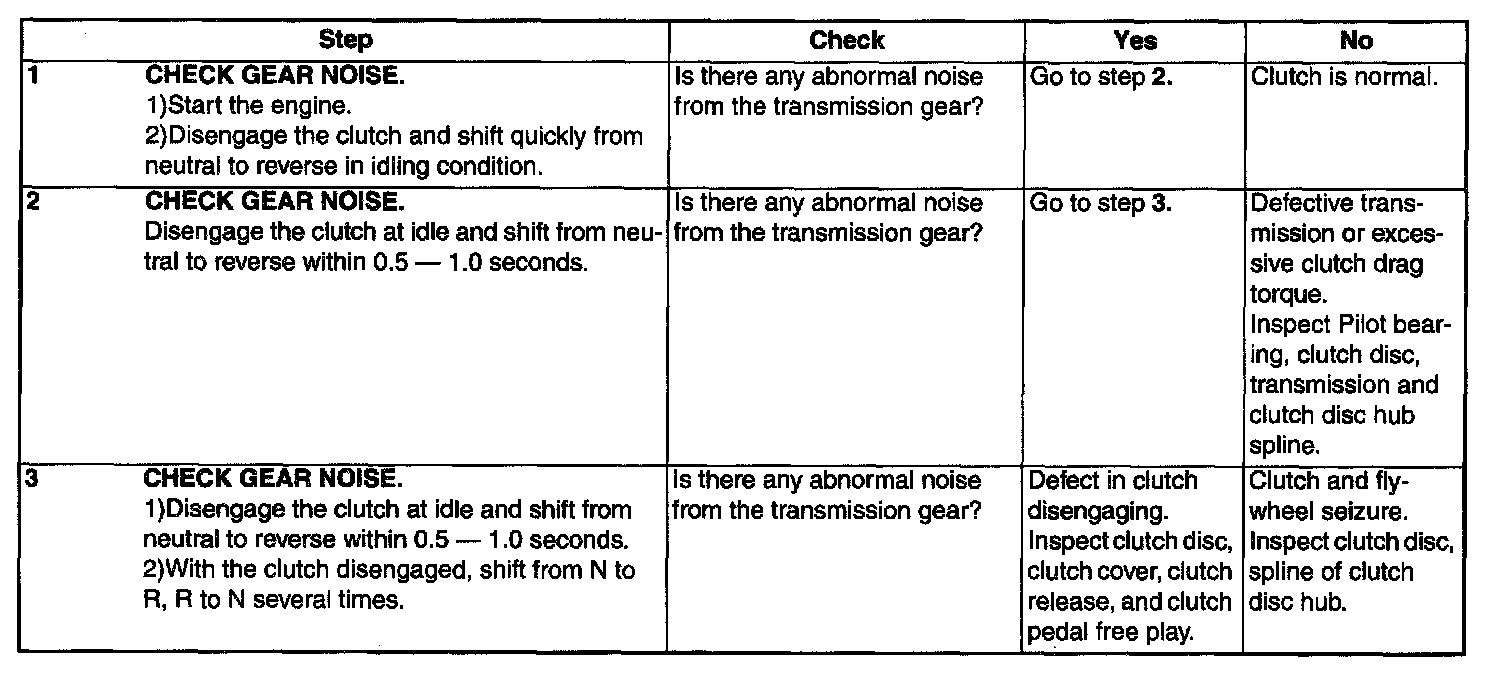

DIAGNOSTIC DIAGRAM OF CLUTCH DRAG
