Flywheel: Testing and Inspection

INSPECTION

CAUTION: This bearing is grease sealed and is of a non-lubrication type, do not wash with gasoline or any solvent.

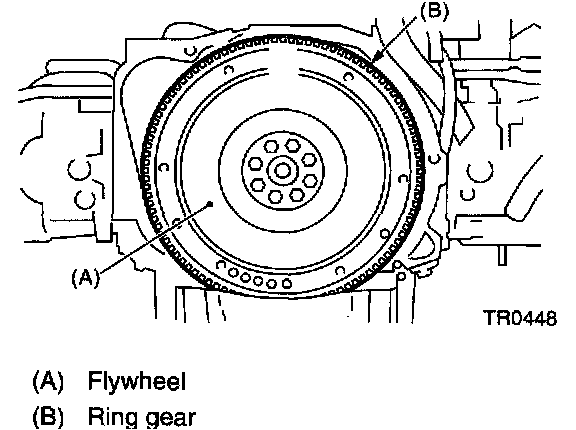

1. Damage of facing and ring gear: If defective, replace the flywheel.
2. Smoothness of rotation:
Rotate the ball bearing applying pressure in thrust direction.
3. If noise or excessive play is noted, replace the flywheel.
