Home >> Subaru >> 2002 >> Legacy L Sedan AWD F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram

System Diagram

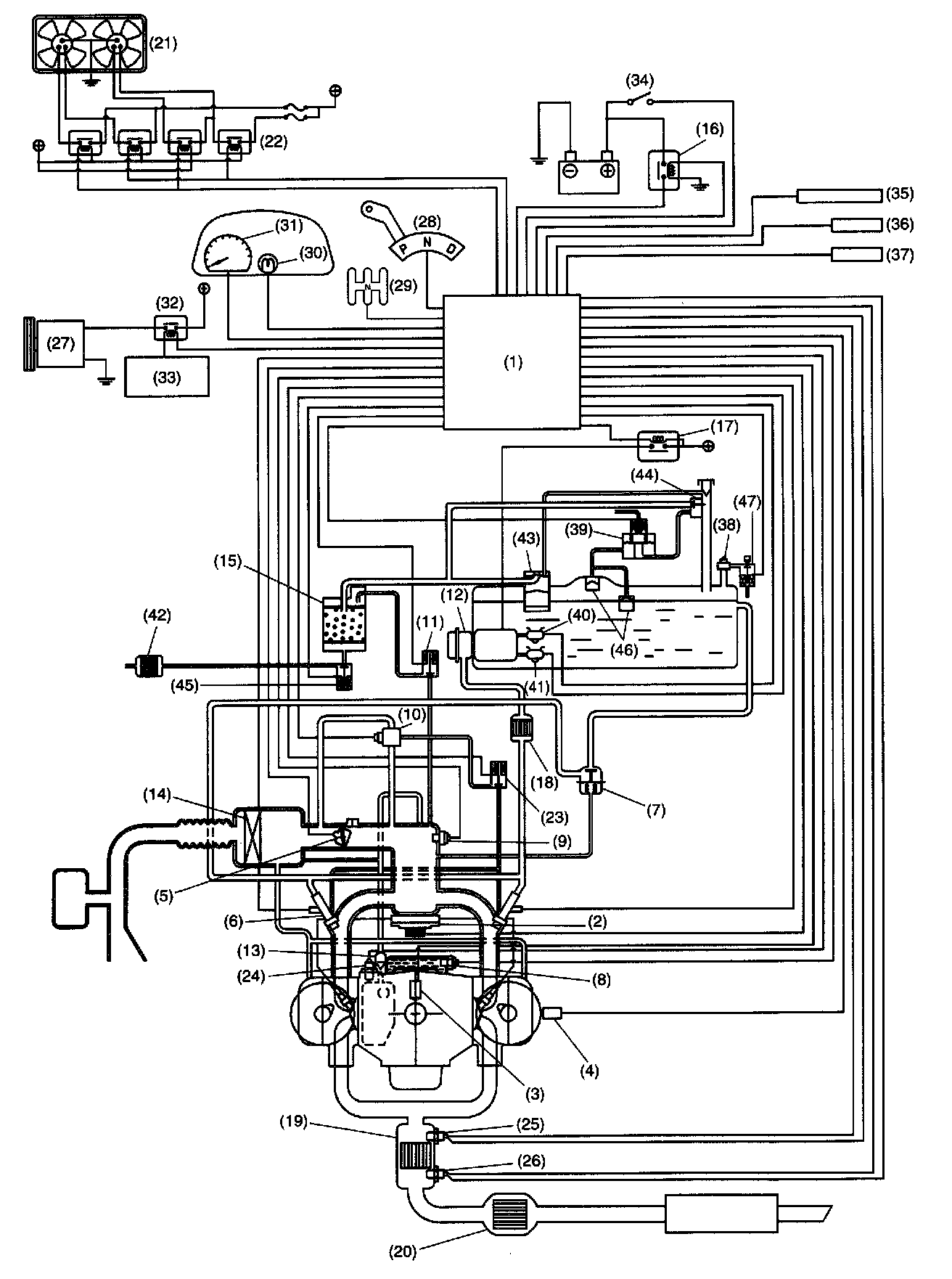

Schematic Diagram Part 1:

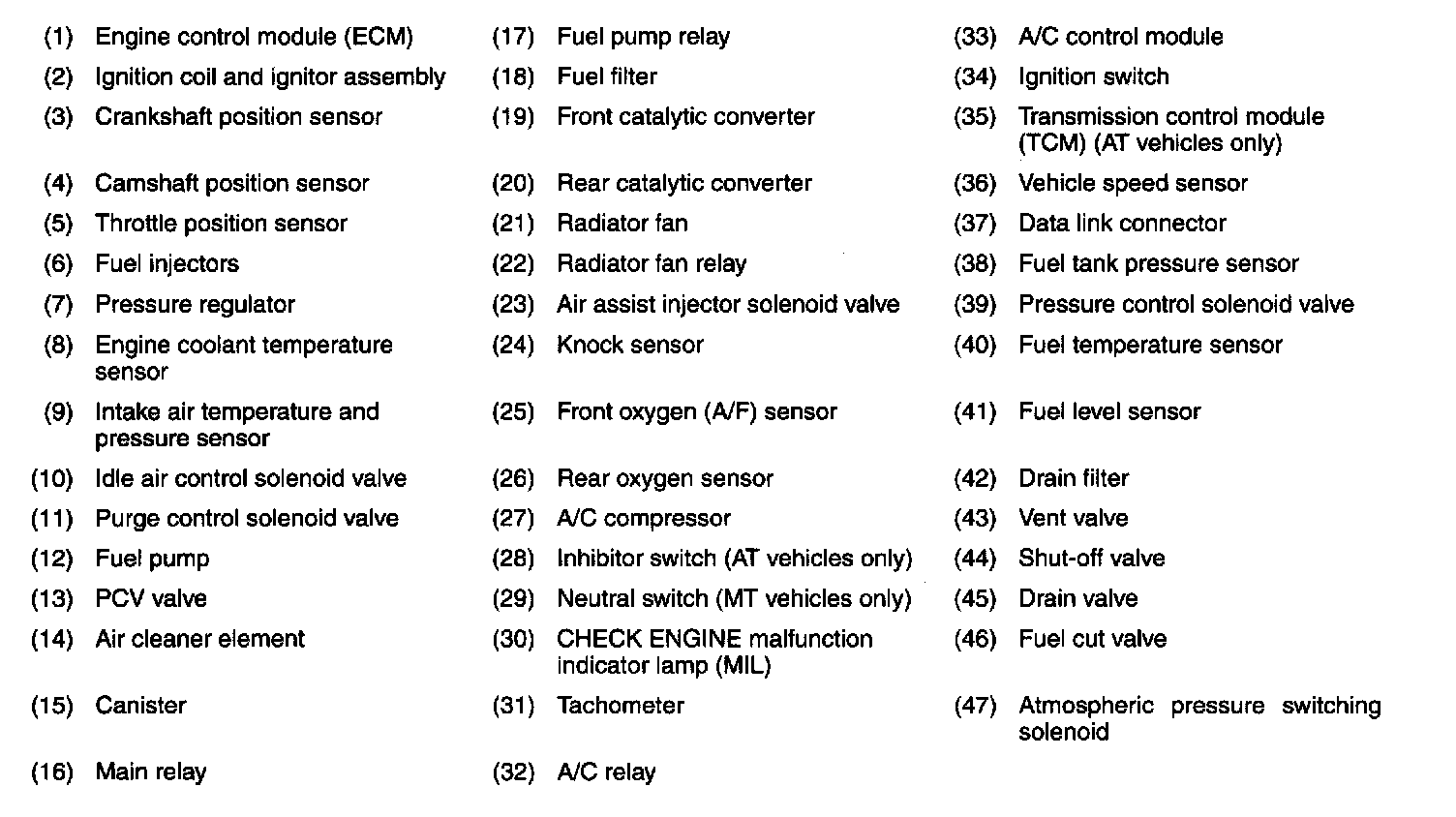

Schamatic Diagram Part 2:
