Pinout Values and Diagnostic Parameters

Control Module I/O Signal

ELECTRICAL SPECIFICATION

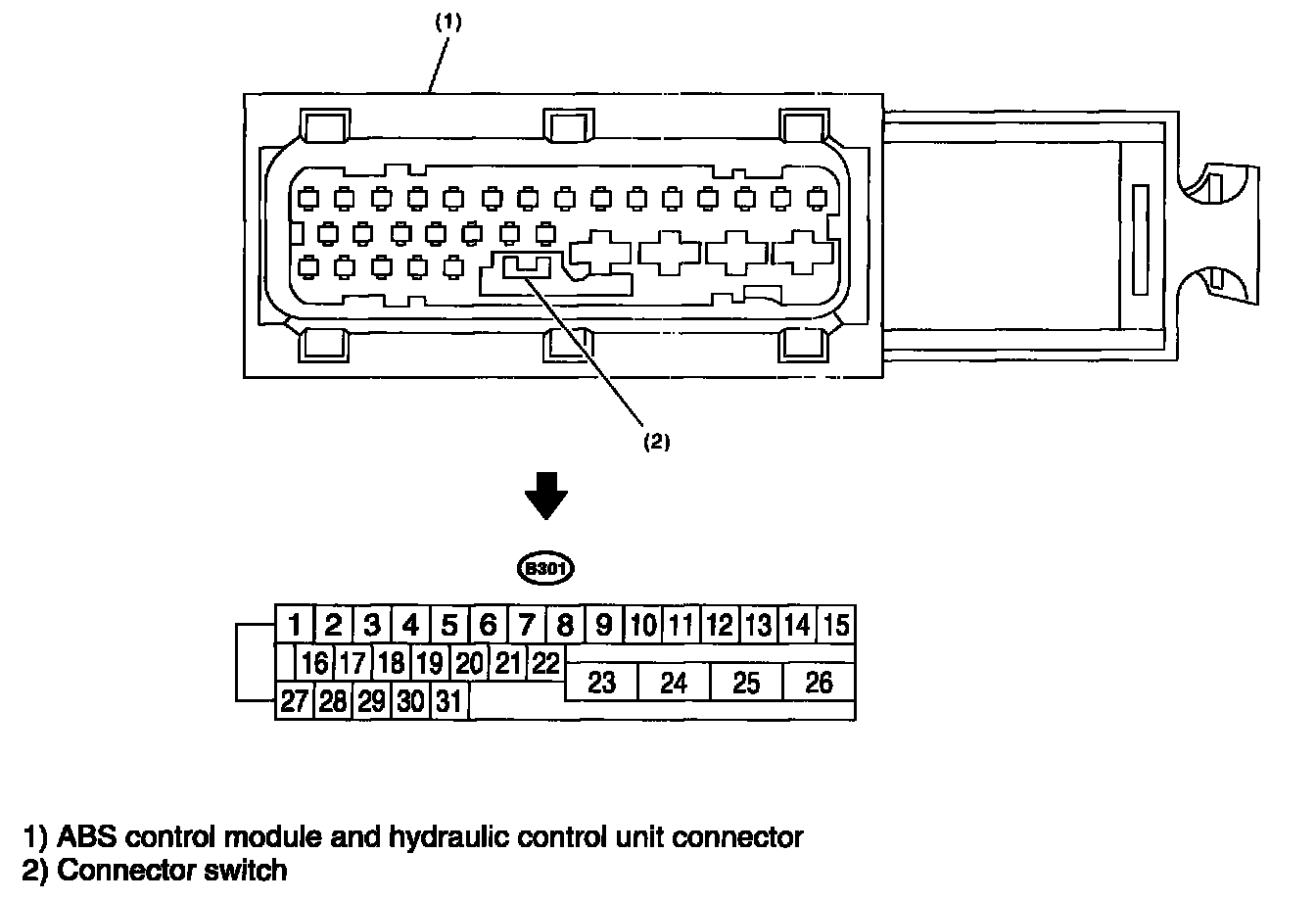

1) ABS control module and hydraulic control unit connector
2) Connector switch

NOTE:
^ The terminal numbers in ABS control module and hydraulic control unit connector are as shown in the figure.
^ When the connector is removed from ABSCM&H/U, the connector switch closes the circuit between terminal No. 22 and No. 23. The ABS warning light illuminates.









SCHEMATIC

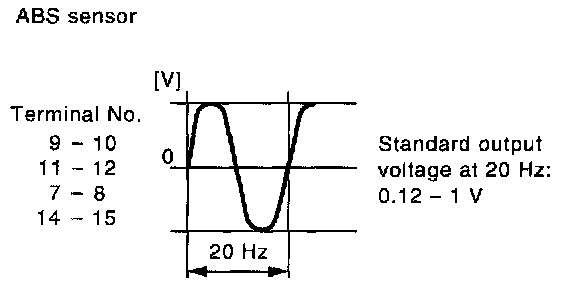

WAVEFORM
